Door Sound Insulation (Front): Installation

  1. To install, reverse removal procedure. In event of replacement or partial detachment, place butylene tape on inner door panel or sound insulation. See Fig 1 . Seal cable penetrations with butylene tape. Note position of butylene tape on inner door panel. Install sound insulation.
    NOTE: Clean specified adhesive area with adhesive cleaner. Air drying time is one minute. The adhesive areas must be dry and free from dust and grease. After cleaning, do not touch the adhesive areas with bare hands.
  2. Lay a single row of 6-mm diameter butylene tape or double row of 3-mm diameter tape in specified adhesive area. Heat butylene tape with a hot air blower and press down firmly on sound insulation. See Fig 2 .

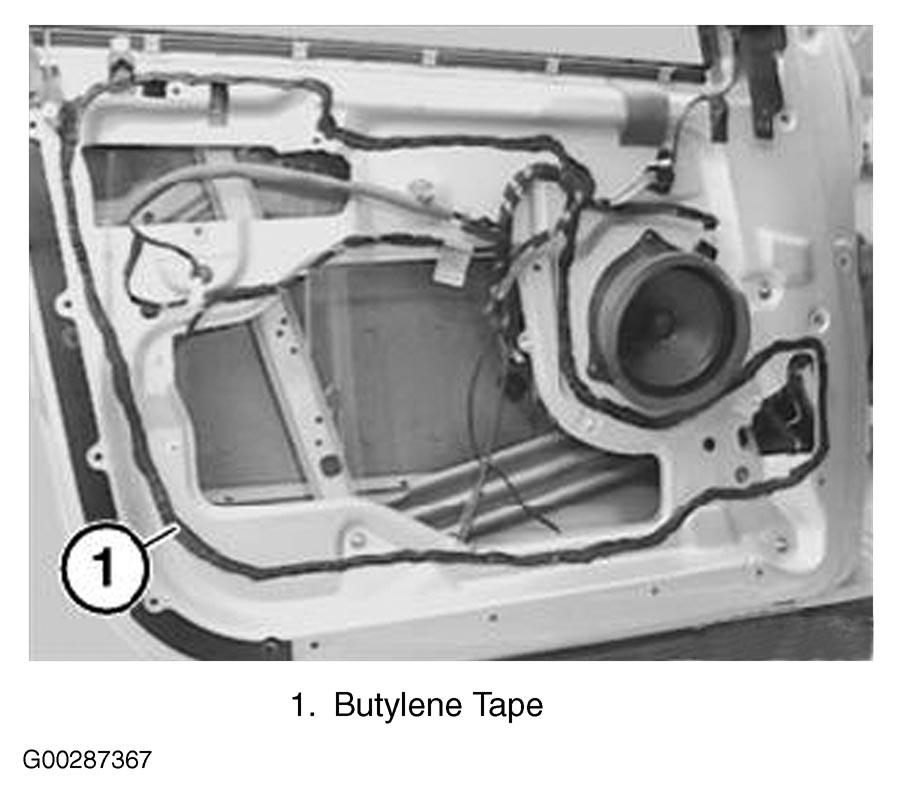

    Fig 1: Positioning Butylene Tape On Inner Door Panel
    G00287367Courtesy of BMW OF NORTH AMERICA, INC.

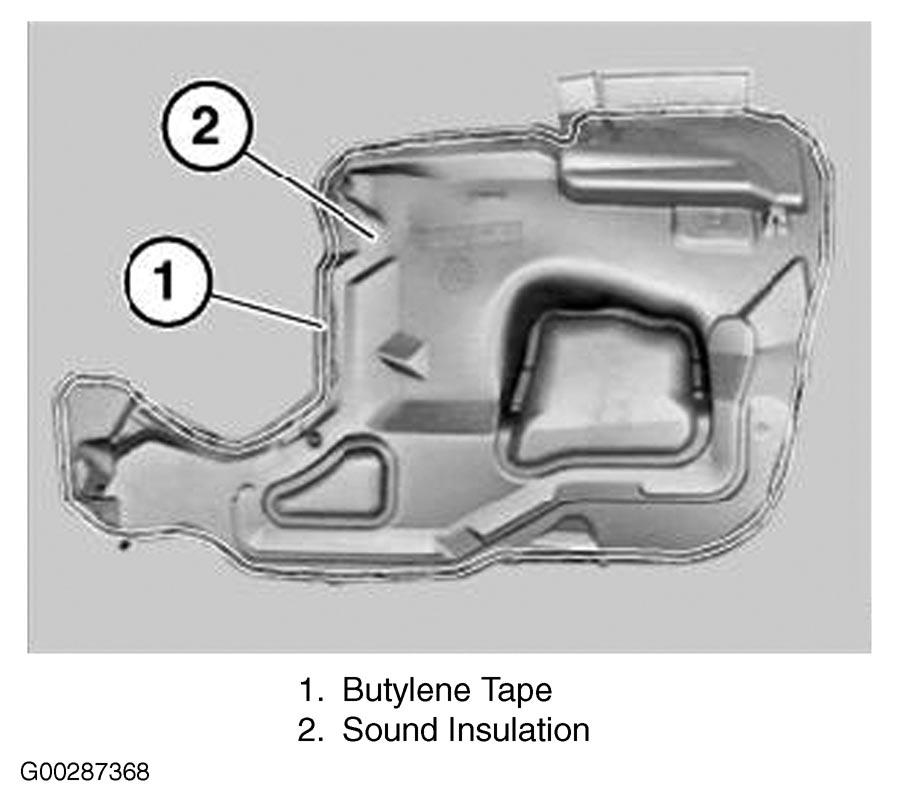

    Fig 2: Positioning Butylene Tape On Sound Insulation
    G00287368Courtesy of BMW OF NORTH AMERICA, INC.
