Wiring Diagrams

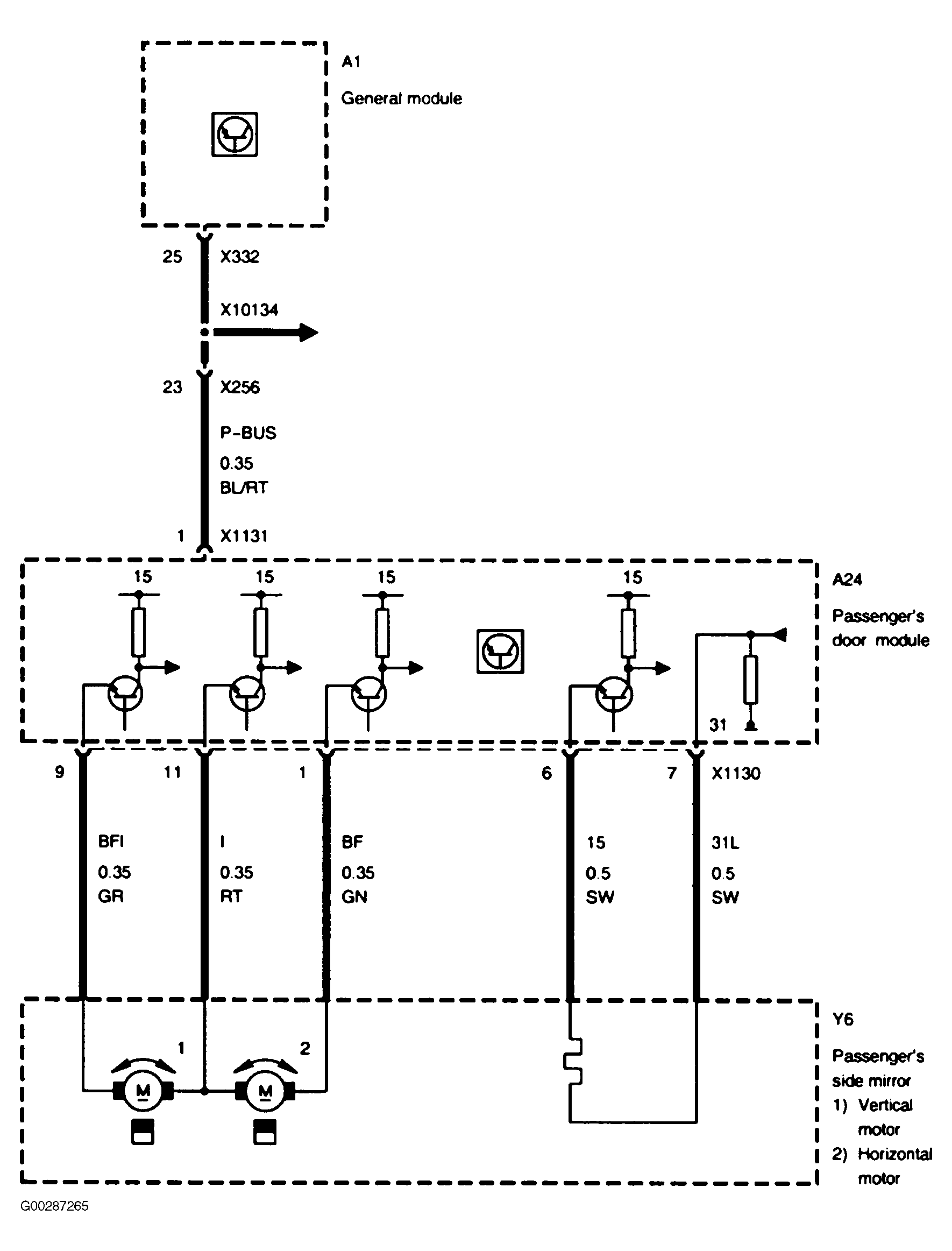

Fig 1: Power Mirrors Wiring Diagram (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

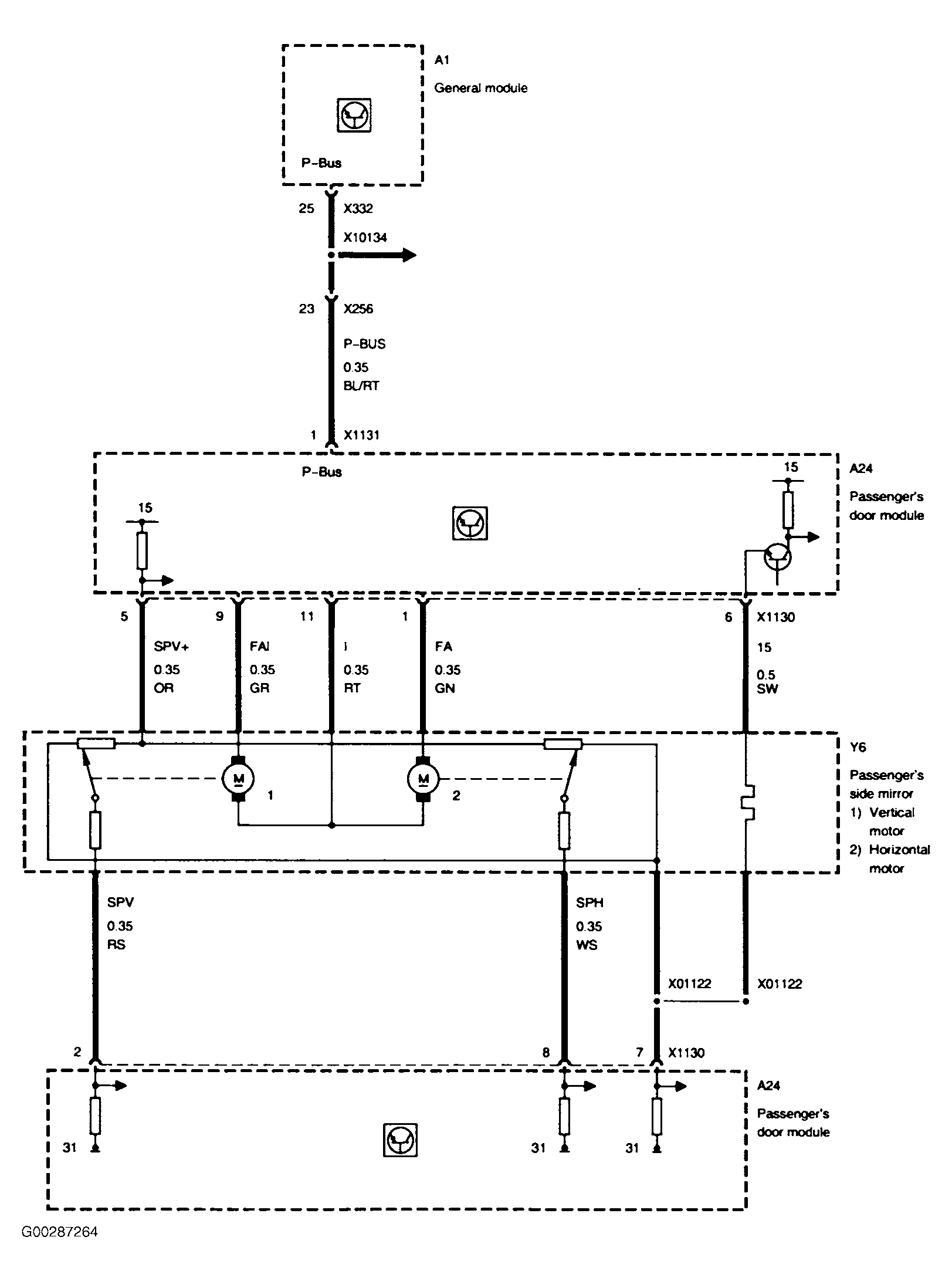

Fig 2: Power Mirrors Wiring Diagram (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
