Assembly Of Fast-Release Coupling

Press in lock (1) before installing fast-release coupling.

Push on hose.

Fast-release coupling must audibly snap into place.

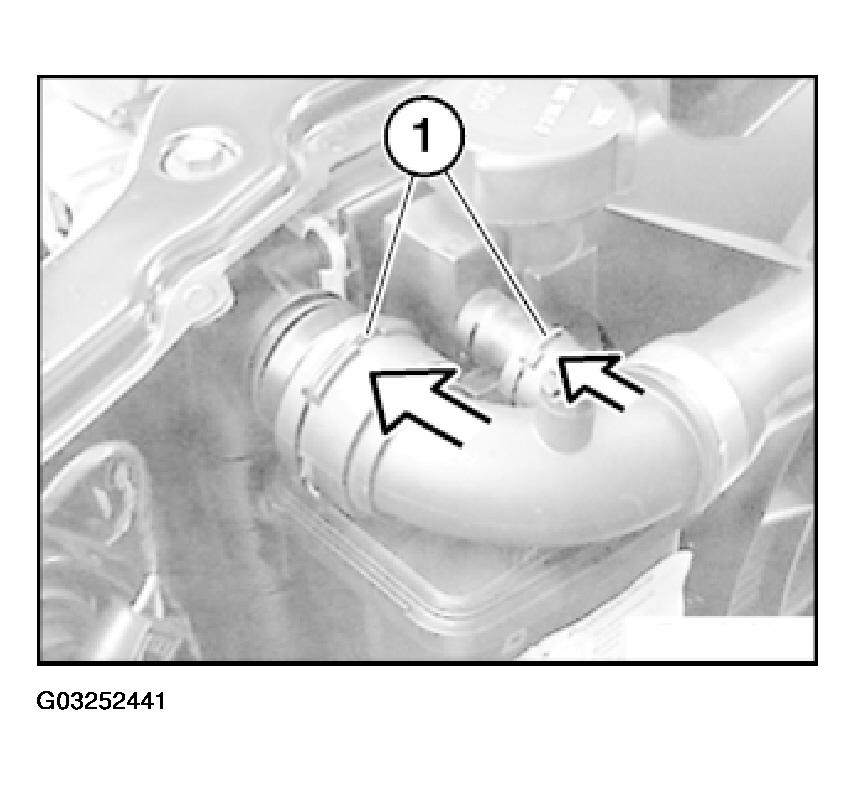

Fig 1: Installing Fast-Release Coupling
G03252441Courtesy of BMW OF NORTH AMERICA, INC.
