61 13 ... Crimping Annular Contacts

CrimpacII crimping pliers from repair kit 1 are used to crimp annular contacts.

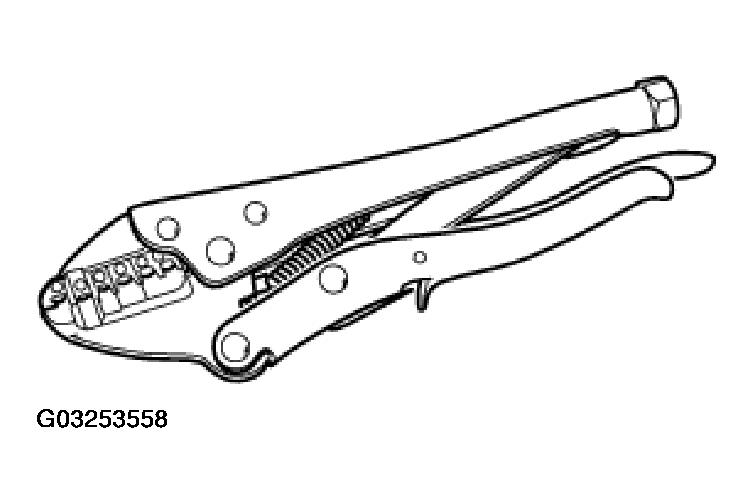

Fig 1: Identifying CrimpacII Crimping Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Open crimping pliers (1).

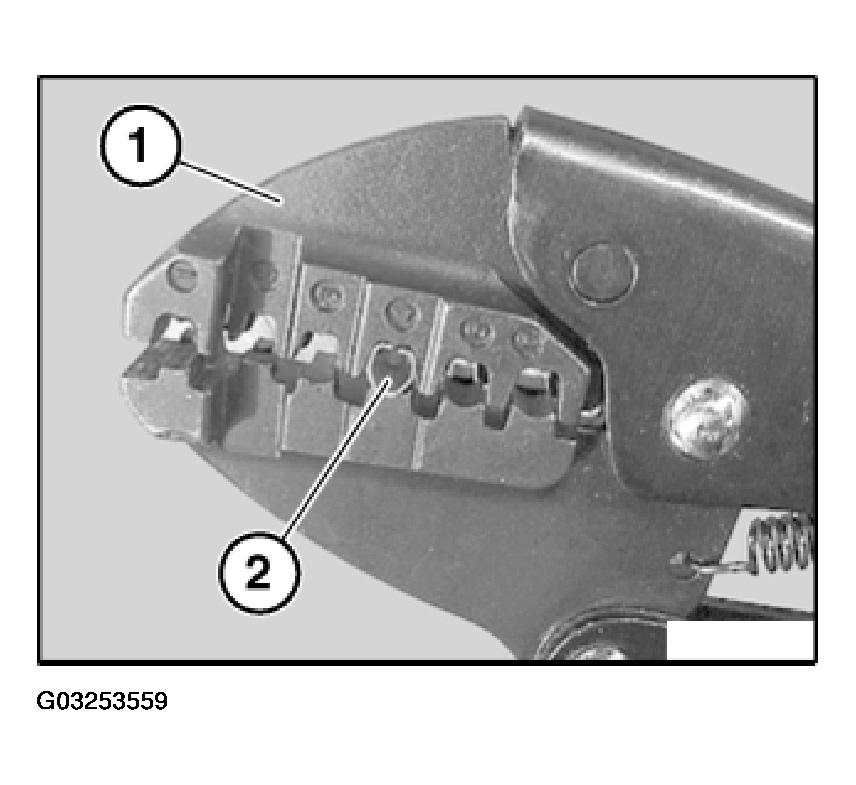

Fig 2: Placing Contact In Nest

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Place contact (2) in designated nest (observe wire cross section) with particular care. Make sure it is exactly positioned.

Insert annular contact (2) in crimping pliers (1).

Close crimping pliers (1) gently and keep closed.

NOTE: Follow procedure for cutting and stripping insulation from cables.

Feed stripped cable (1) into annular contact (2) completely.

Close crimping pliers (3) fully.

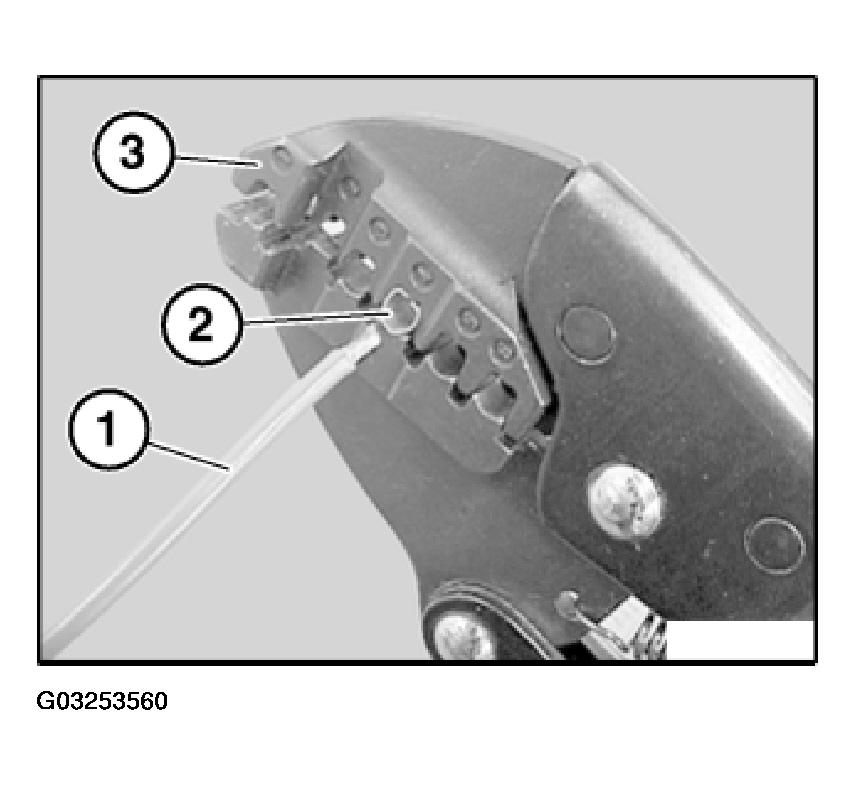

Fig 3: Crimping Annular Contact

Courtesy of BMW OF NORTH AMERICA, INC.

Open crimping pliers (3) and remove cable (2).

NOTE: Check contact for correct crimping.
