Pressure Regulation

Pressurized oil from the pump must be regulated for use within the transmission. Otherwise, the high pressure directly from the pump would influence shift quality. The shifts would be more abrupt and harsh. In order to "fine tune" the pressures within the transmission, there is a pressure regulating valve and a pressure regulating solenoid. The pressure regulating valve is located in the oil pump housing or the valve body dependent upon transmission type. The pressure regulating solenoid is a pulse width modulated (PWM) solenoid. Current is controlled by the TCM. The pressure regulating solenoid is normally closed, there is maximum line pressure available when minimum (or no) current is applied to the pressure regulating solenoid. Depending upon application, pressure regulating solenoid can be PWM with B- or B+ control. GM transmissions use B+ control with a constant ground supply. ZF transmissions uses B- control with a constant B+ supply.

There are also pressure regulators used in ZF transmissions that are used to control shift pressures. The A5S440Z and A5S560Z both use EDS solenoids for "Overlap Shift Control" this will be explained later in this text. There are a few different names for pressure regulating solenoids depending upon the transmission type and manufacturer:

• ZF transmissions use the following terms - EDS solenoid (valve), or MV (magnetic valve).
• Hydramatic (GM) transmissions use the following terms: DR solenoid, Force Motor Solenoid or Variable Bleed Solenoid.

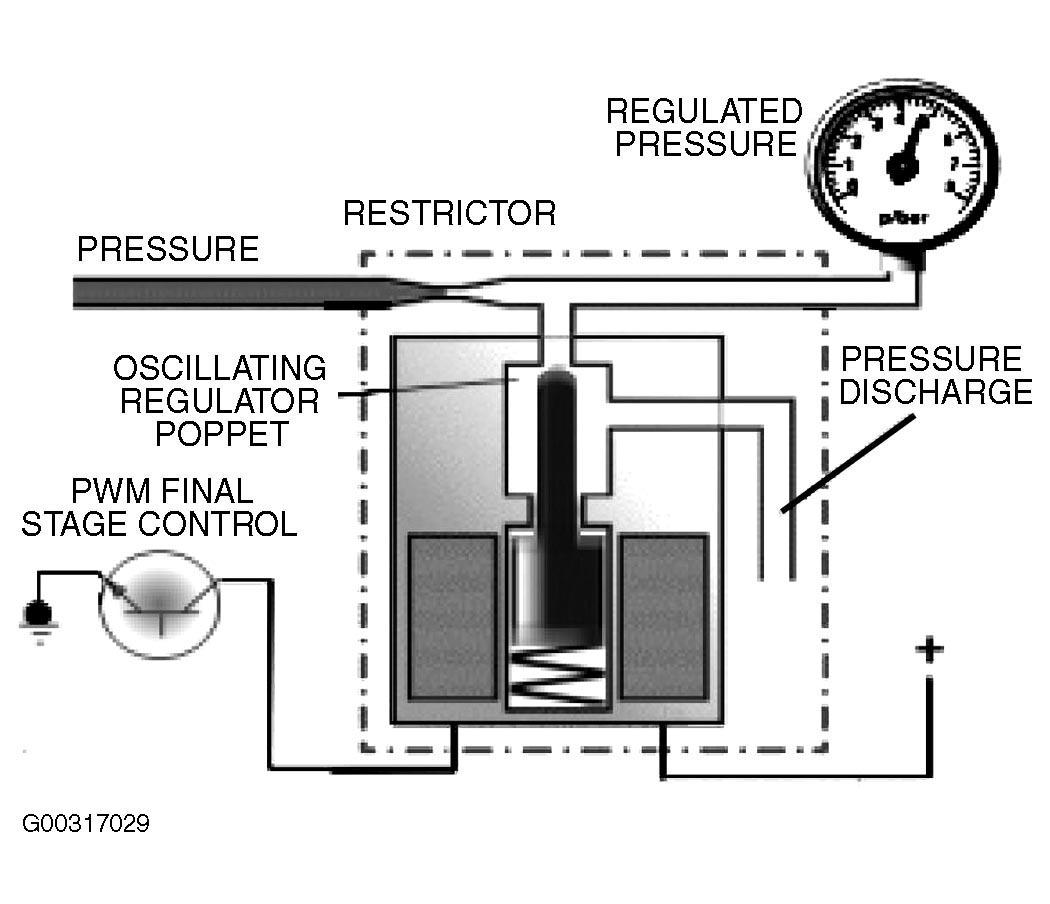

Transmission operating pressures are regulated based on engine speed, throttle angle and engine load. The regulated pressure from the pressure regulating solenoid is referred to as throttle pressure. This pressure is fed to the main pressure regulating valve. See Fig 1.

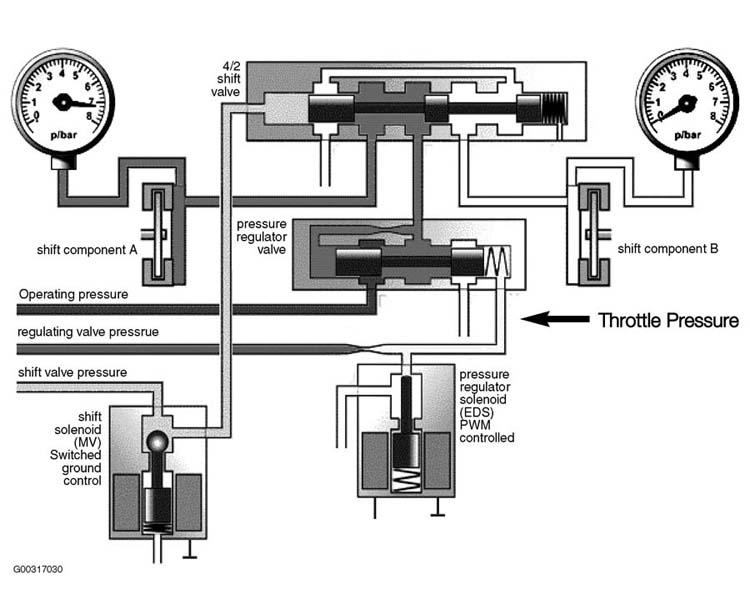

As the diagram shows, regulating valve pressure is fed to the pressure regulating solenoid. See Fig 1. This pressure is then regulated to create throttle pressure. Throttle pressure is modified based on throttle angle, engine speed and engine load. Throttle pressure is then fed to the pressure regulating valve. As throttle pressure increases, the regulating valve piston is moved to the left (with respect to the diagram). As the regulating valve piston is moved to the left, operating pressure is increased to the 4/2 shift valve. The operating pressure to the 4/2 shift valve will be fed to Shift Component A or Shift Component B depending the position on the 4/2 shift valve. The operating pressure to the shift components will be increased or decreased depending upon the throttle valve pressure. As engine speed and load are increased, the operating pressure will be increased to provide higher clamping forces on the shift components. When there is no electrical power present to the pressure regulator solenoid, throttle pressure will be a maximum. Therefore maximum operating pressure will be available at the 4/2 shift valve. This condition would exist if the transmission was operating in failsafe mode.
