Pressure Tester Adapter (04 03 09)

Publication date: 2009-02-11
Reference number: 04 03 09

PRESSURE TESTER ADAPTER

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B04 03 09, Date of Issue: February 2009

BMW:	All
GROUP:	Tools and Equipment

SUBJECT

Pressure Tester Adapter

SITUATION

Distribution of the following tool will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your Regional Distribution Center (RDC).

Pressure Tester Adapter

Order PN 83 30 0 496 326

Cartool PN 119 880

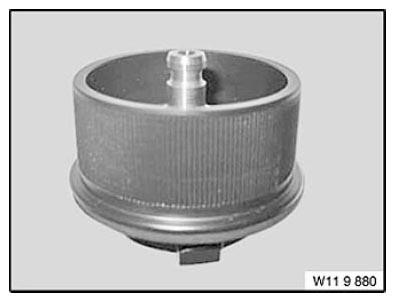

Fig 1: Pressure Tester Adapter

This tool is used in conjunction with the 25 bar pressure sensor to measure engine internal pressure. For more details, refer to Repair Instructions section 11 15 510 and SI B11 03 08 to find the specification by engine variant.

IMPORTANT: Currently the Diagnostic program for this tool is impaired. It will be fixed in a future version.

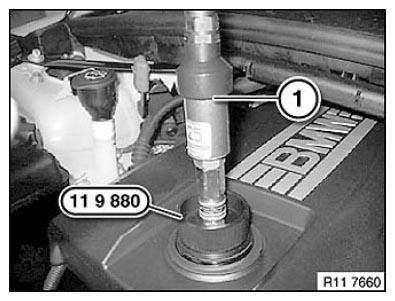

Fig 2: Measuring Engine Internal Pressure
