A/C Leak Detection Kit (04 14 04)
Publication date: 2004-08-01Reference number: 04 14 04
A/C LEAK DETECTION KIT
TECHNICAL SERVICE BULLETIN
Reference Number(s): SI B 04 14 04, Date of Issue:
August 2004
| BMW: | All |
| GROUP: | 04 - Tools and Equipment |
SUBJECT
A/C Leak Detection Kit
SITUATION
The Spectronics/Tracer R134a A/C dye leak test kit is approved for use on BMW vehicles. Sales of the kit and replacement parts will not be through the Automatic Tool Shipment Program. Kits and replacement parts may be purchased through BMW Equipment Program.

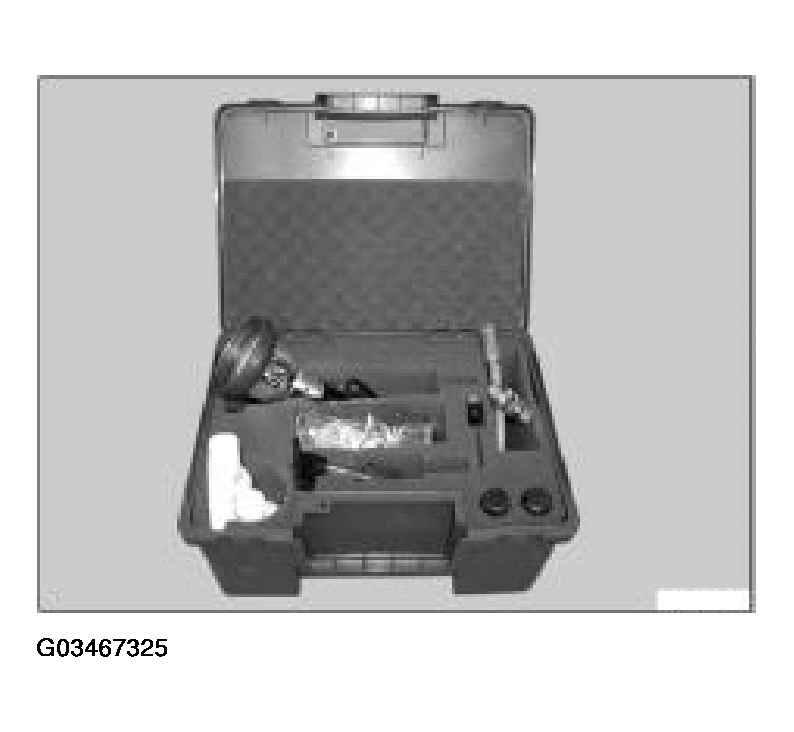

A/C Leak Detection Kit
PN 447-120326
NOTE:
Case and contents may differ slightly in appearance than represented in Fig 1
.
PARTS INFORMATION
The kit includes
KIT CONTENTS
| Part Number | Description | Qty. |
|---|---|---|
| 447-TP-80000AX | UV/blue 100w, 12-volt lamp with lighter plug, adapter cord and fluorescence-enhancing glasses. | 1 |
| 447-TP9845 | EZ-JECT injector assembly | 1 |
| 447-TP-9847 | EZ-JECT hose assembly with couplers | 1 |
| 447-TP-9860 | R134a PAG EZ-JECT dye cartridge | 2 |
| 447-TP-9000 | 8oz Glo-Away dye cleaner/remover | 1 |
| NPN | Instructions | 1 |
REPLACEMENT PARTS
| Part Number | Description | Qty. |
|---|---|---|
| 447-TP-80000AX | UV/blue 100w, 12-volt lamp with lighter plug, adapter cord and fluorescence-enhancing glasses. | 1 |
| 447-TP9845 | EZ-JECT injector assembly | 1 |
| 447-TP-9847 | EZ-JECT hose assembly with couplers | 1 |
| 447-TP-9860-0601 | R134a PAG EZ-JECT dye cartridge | 6 |
| 447-TP-9000 | 8oz Glo-Away dye cleaner/remover | 1 |
