Gt1 Trolley (08 01 04)

Publication date: 2004-06-01
Reference number: 08 01 04

GT1 TROLLEY

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B 08 01 04, Date of Issue: June 2004

BMW:	All
GROUP:	GT1

Superceded Bulletin(s): SI B 08 01 04, Date of Issue: April 2004

NOTE: This Service Information bulletin supersedes S.I. B 08 01 04 dated April 2004.

SUBJECT

GT1 Trolley

SITUATION

The GT1 Trolley was developed so that all of the GT1 peripheral pieces could be safely stored and close at hand for quick use. This includes the Measurement Interface Box (MIB) and associated cables (Soon to be released). The GT1 trolley will remain viable for future workshop systems.

Distribution of the BMW Trolley to centers is complete. Every BMW center was shipped 1 (one) GT1 Trolley through the Cost Per Vehicle program. Satellite locations were not shipped a Trolley. This was a one-time program and will not be repeated. Additional Trolley's (for additional units & Satellite locations) may be purchased through your PDC.

GT1 Trolley PN 81 31 0 306 565

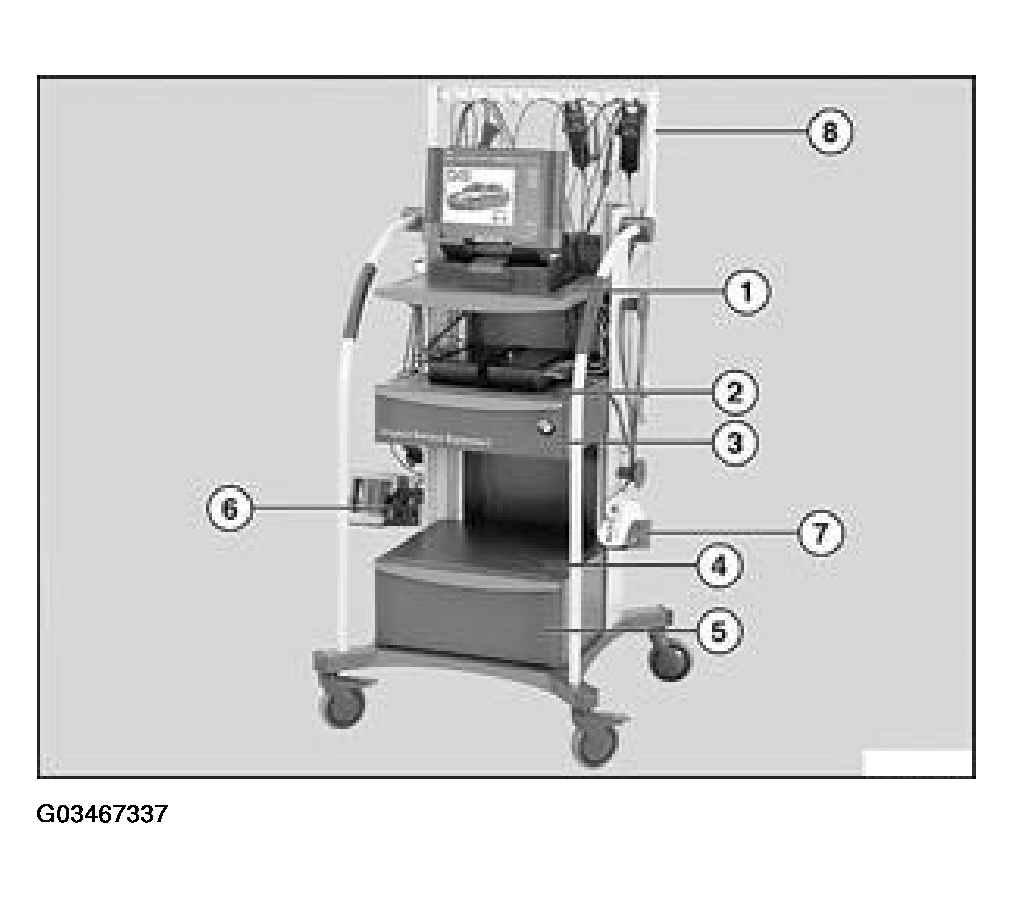

Fig 1: GT1 Trolley

GT1 Trolley is shown with peripherals attached. Peripherals are not included with the Trolley.

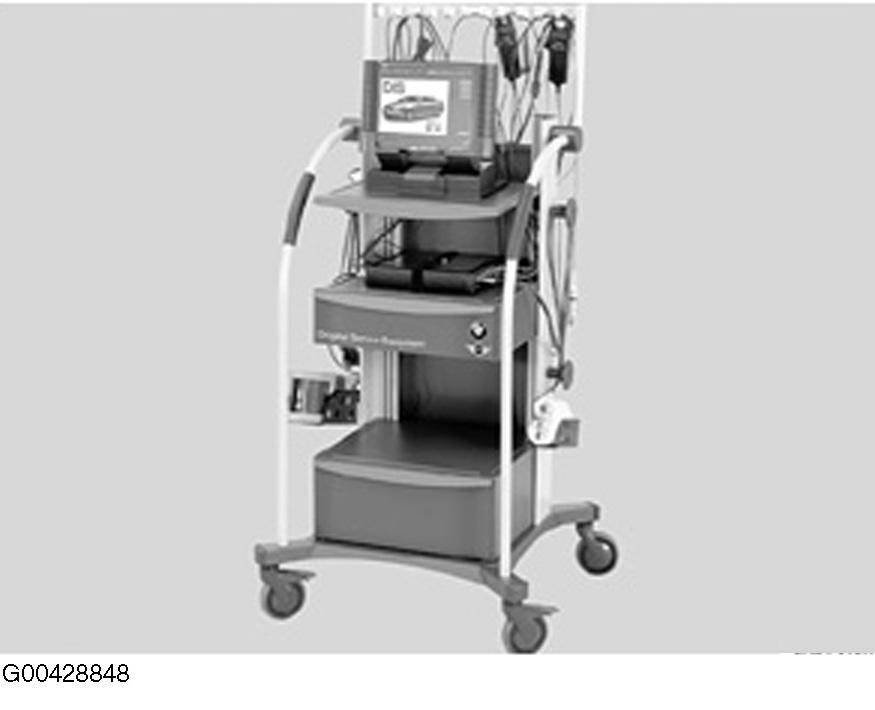

Fig 2: GT1 Trolley With Peripherals Attached

The GT1 Trolley stores the following peripherals for quick access:

GT1 storage shelf - the GT1 locks onto the shelf to protect it from falling.
MIB storage shelf - uses a Velcro strap for protection.
Storage drawer for keyboard.
Deutronic battery charger storage shelf.
Storage drawer for MFK and LAN cables.
Storage bracket for the OPPS/OPS head.
Storage bracket for the GT1 head.
Storage hooks for the MIB cables.

UTILIZATION NOTES

Never push the trolley by the top cable rack. Always push it by the grey curved handles.
Take the time to run the cables neatly the first time. Time spent here will save you time during usage.
The test cables are run up behind shelf (1) and hung from the test cable rack (8).
Power cables for the GT1 and MIB (SI B 08 02 04 ) are run down behind shelves 2 & 4. A power strip can be installed behind drawer 5 and the power cable run out through the opening in the back of the trolley.
A Deutronic battery charger can be placed on shelf 4. The cables are stored in drawer 5 when not in use.
Take care to properly replace all cables when finished. Proper cable storage saves everyone time and money. Misuse and abuse of the MIB and cables is the responsibility of the center and is not covered by warranty.
