Wiring Diagrams

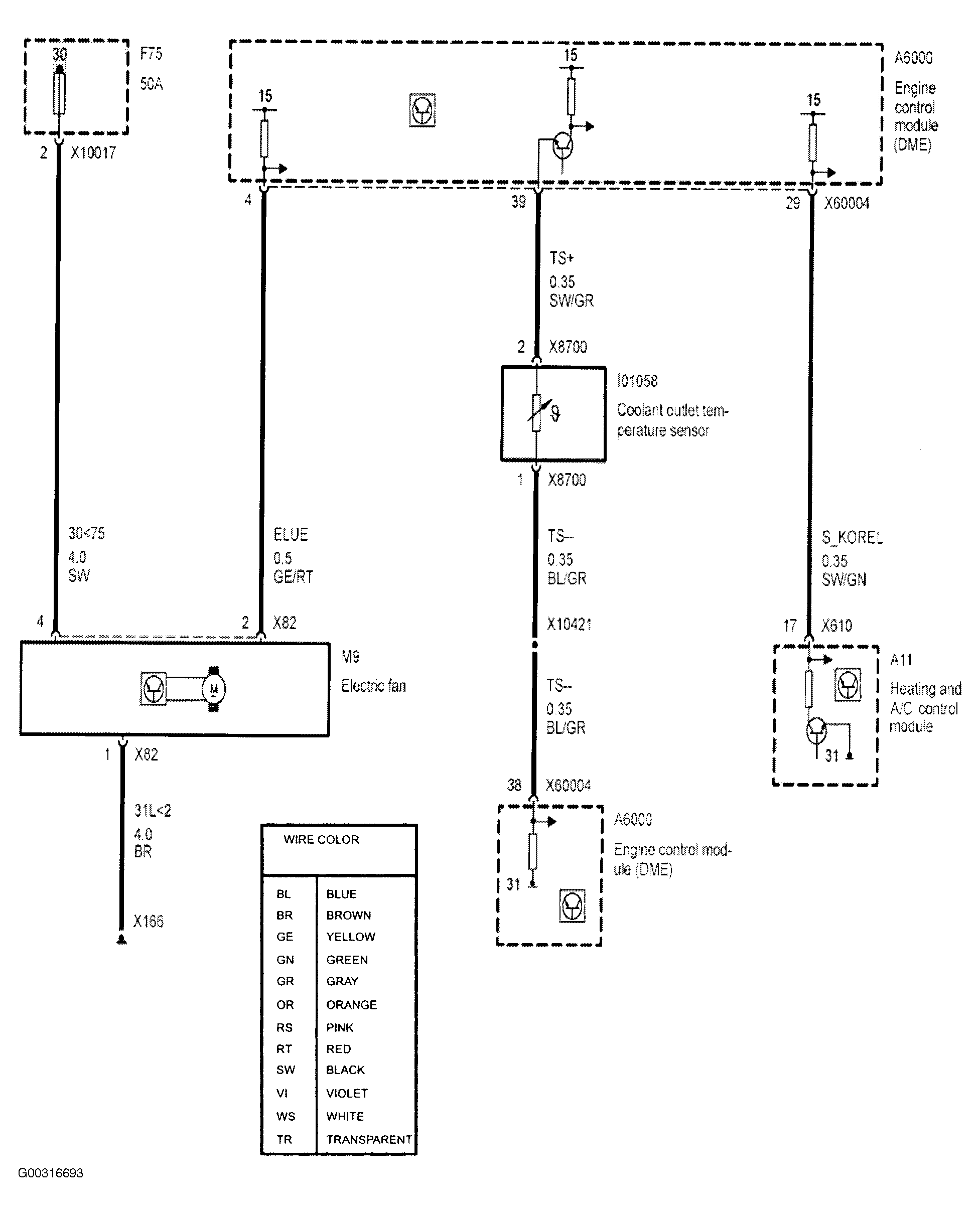

Fig 1: Cooling Fan Wiring Diagram
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
