61 13 .. Unlocking and disconnecting different plug connections

NOTE: Examples of unlocking and disconnecting different plug connections.

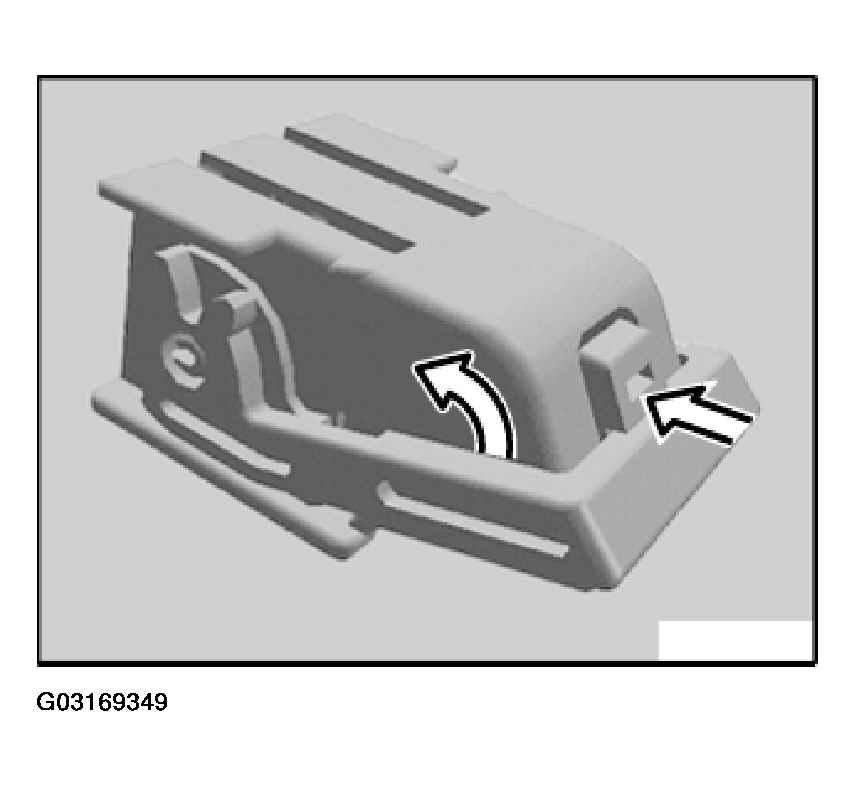

Press lock and open clip in direction of arrow.

Disconnect plug connection.

Fig 1: Unlocking And Disconnecting Plug Connections (1 Of 9)

G03169349

Courtesy of BMW OF NORTH AMERICA, INC.

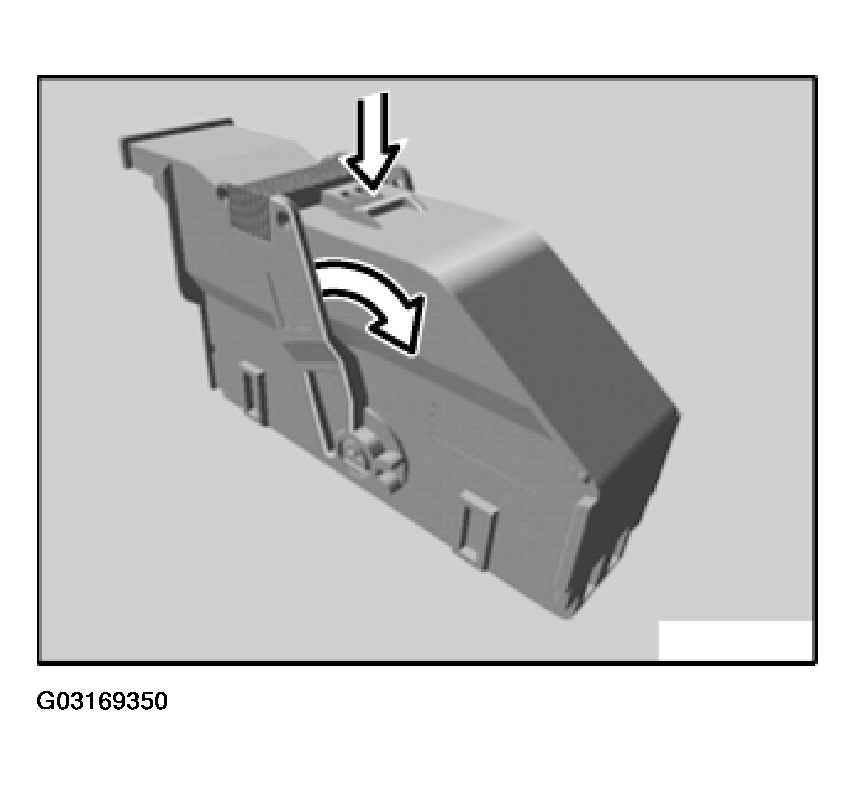

Press lock and open clip in direction of arrow.

Disconnect plug connection.

Fig 2: Unlocking And Disconnecting Plug Connections (2 Of 9)

G03169350

Courtesy of BMW OF NORTH AMERICA, INC.

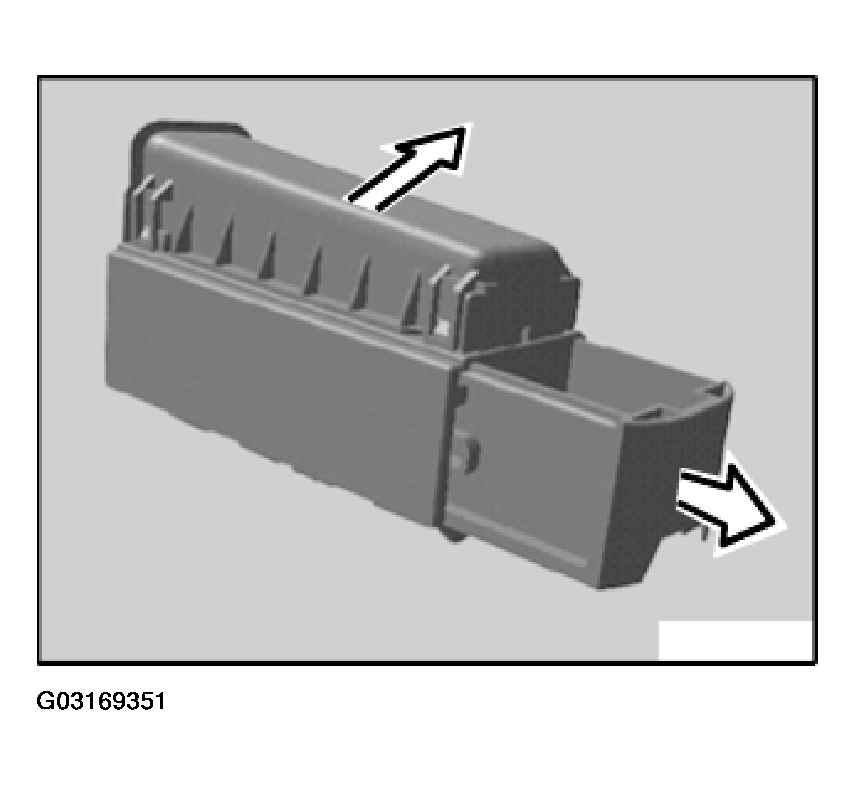

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

Fig 3: Unlocking And Disconnecting Plug Connections (3 Of 9)

G03169351

Courtesy of BMW OF NORTH AMERICA, INC.

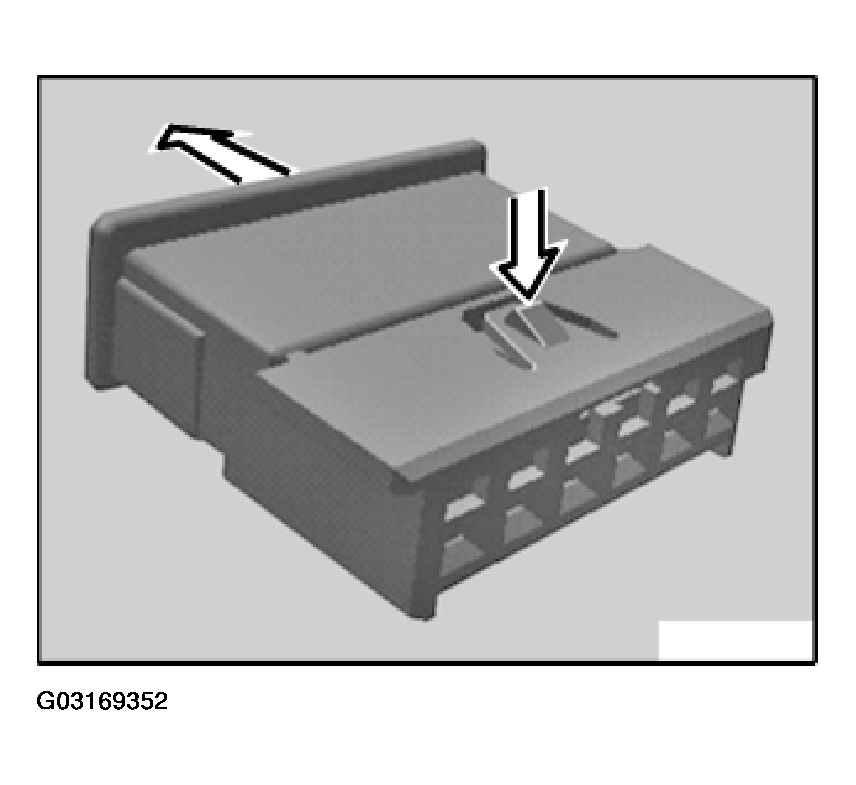

Press lock and disconnect plug connection in direction of arrow.

Fig 4: Unlocking And Disconnecting Plug Connections (4 Of 9)

G03169352

Courtesy of BMW OF NORTH AMERICA, INC.

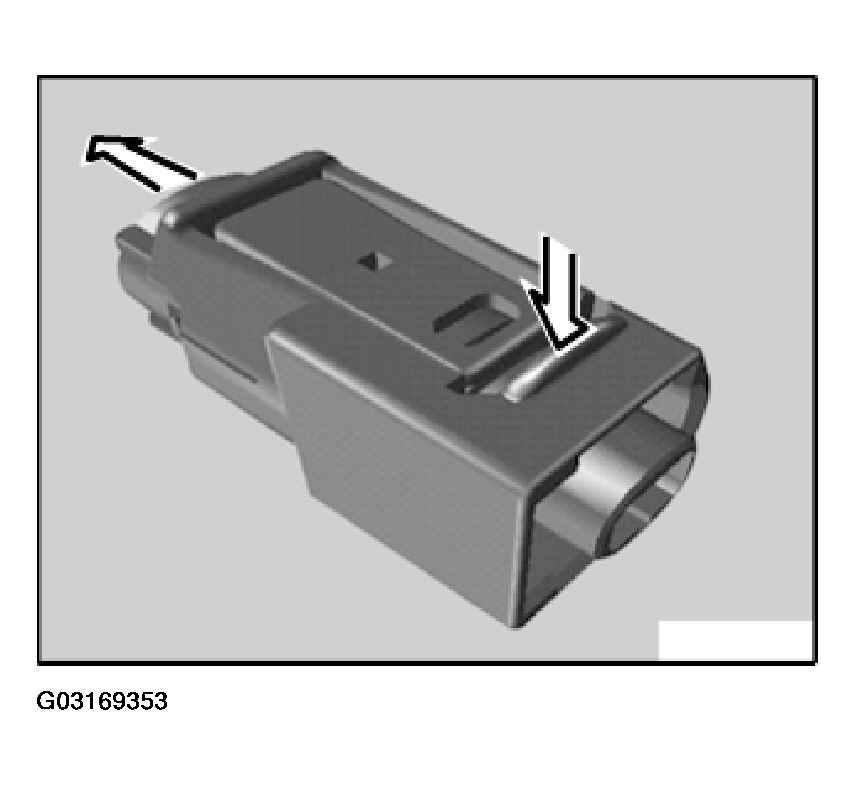

Press lock and disconnect plug connection in direction of arrow.

Fig 5: Unlocking And Disconnecting Plug Connections (5 Of 9)

G03169353

Courtesy of BMW OF NORTH AMERICA, INC.

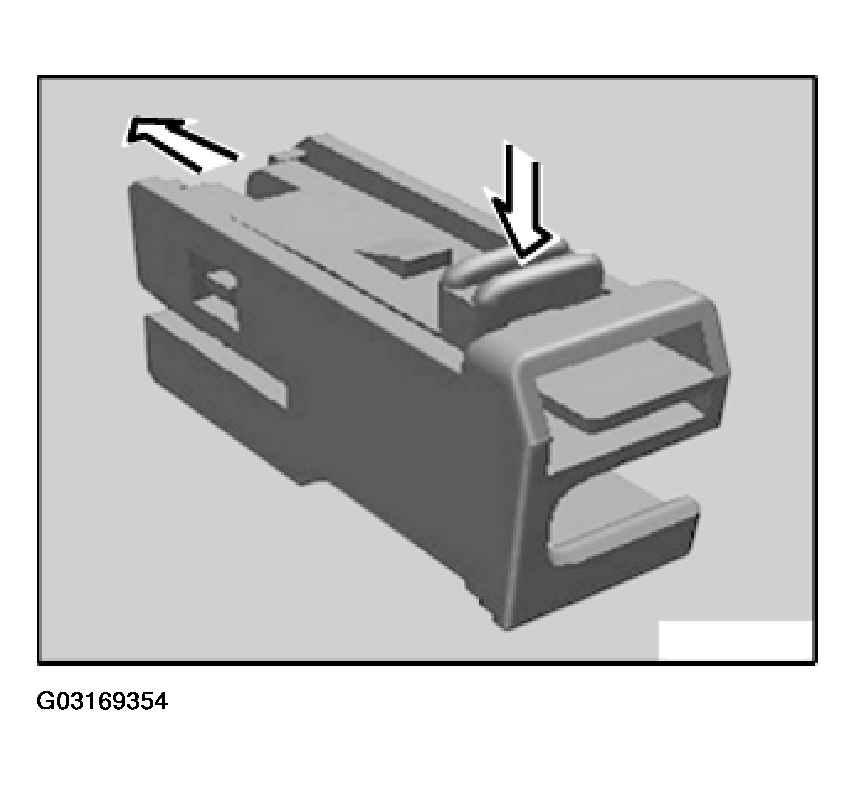

Press lock and disconnect plug connection in direction of arrow.

Fig 6: Unlocking And Disconnecting Plug Connections (6 Of 9)

G03169354

Courtesy of BMW OF NORTH AMERICA, INC.

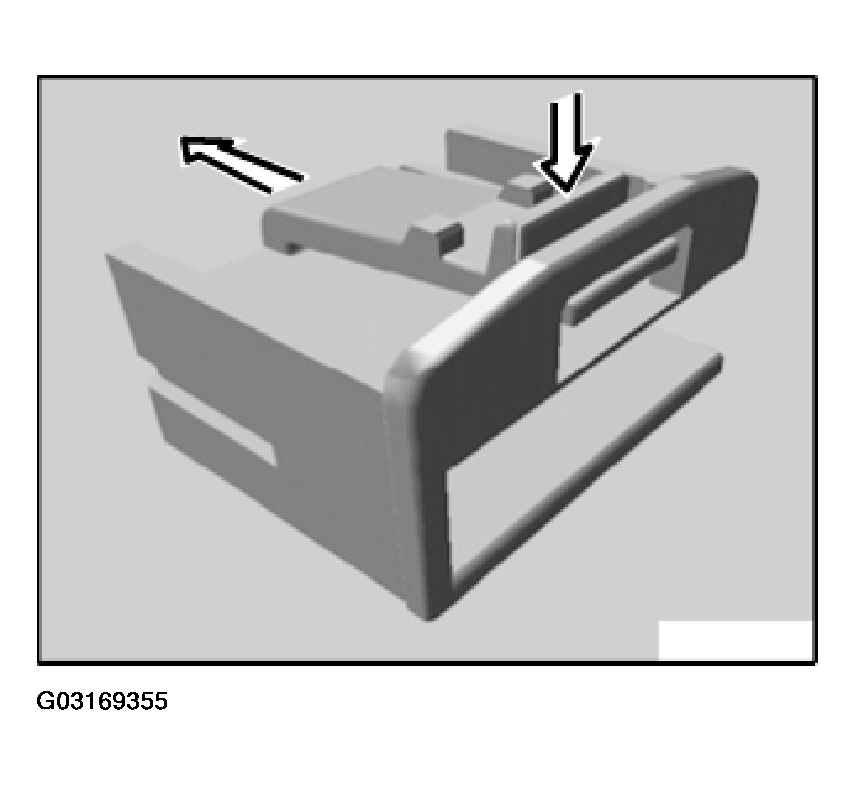

Press lock and disconnect plug connection in direction of arrow.

Fig 7: Unlocking And Disconnecting Plug Connections (7 Of 9)

G03169355

Courtesy of BMW OF NORTH AMERICA, INC.

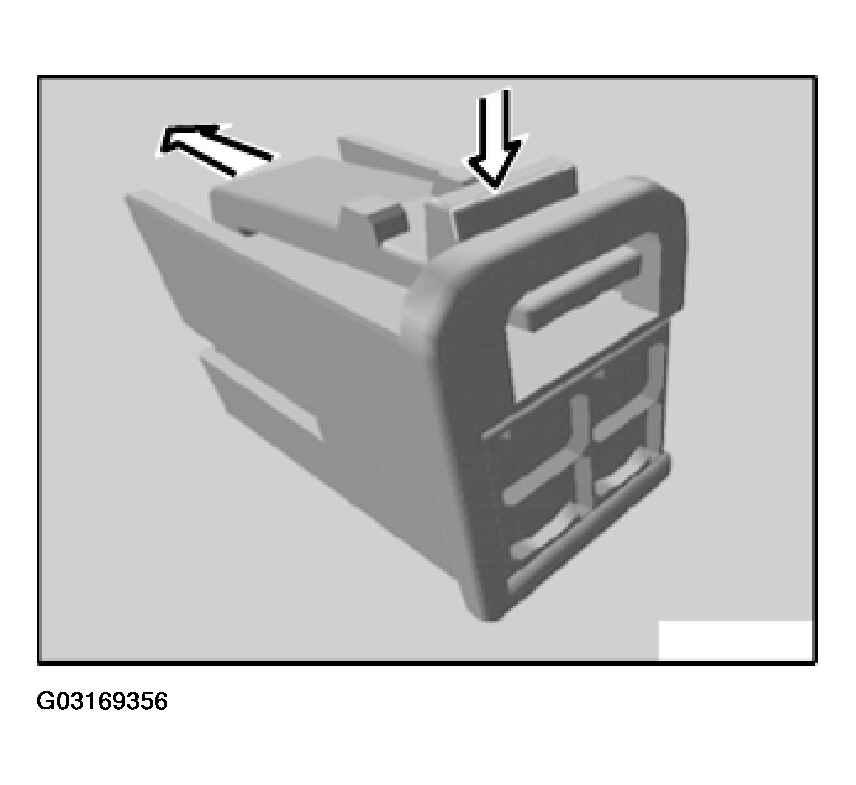

Press lock and disconnect plug connection in direction of arrow.

Fig 8: Unlocking And Disconnecting Plug Connections (8 Of 9)

G03169356

Courtesy of BMW OF NORTH AMERICA, INC.

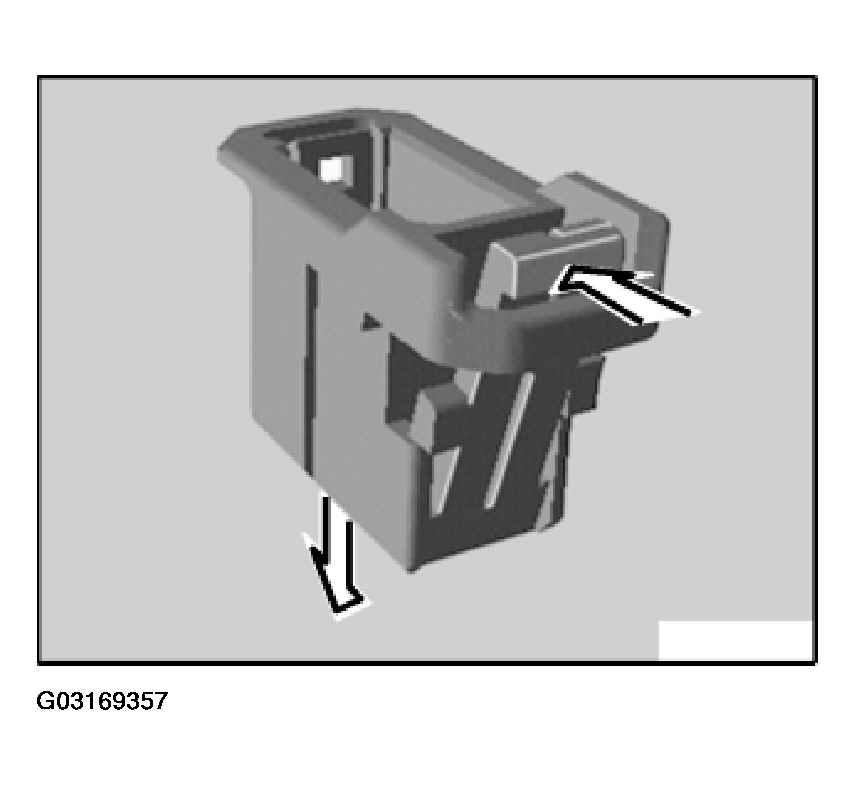

Press lock and disconnect plug connection in direction of arrow.

Fig 9: Unlocking And Disconnecting Plug Connections (9 Of 9)

G03169357

Courtesy of BMW OF NORTH AMERICA, INC.
