Brake/Clutch Switch Inputs

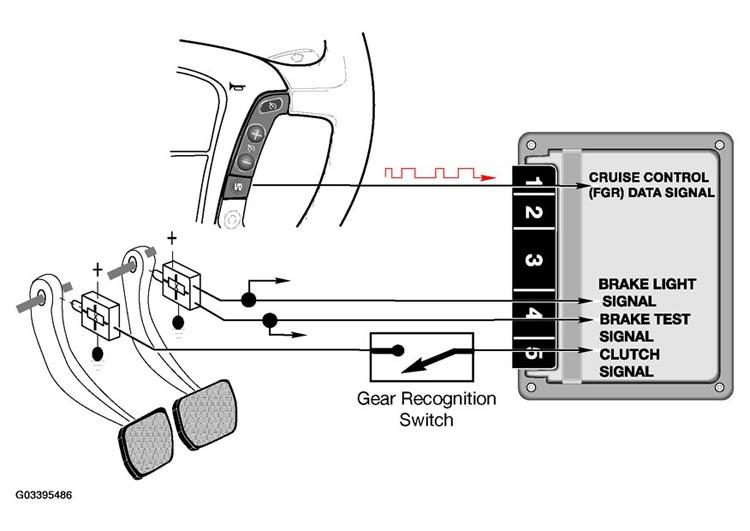

Fig 1: Brake/Clutch Switch Inputs Schematic
G03395486Courtesy of BMW OF NORTH AMERICA, INC.

The brake and clutch switch signals are input to the MS S52 control module for cruise control operation.
