61 13 ... Opening plug housings and removing contacts of different plug systems
Abbreviations and what they mean:
MINIATURE DOUBLE FLAT SPRING CONTACT
| MDK 3plus | Miniature double flat spring contact. |
| JPT ELA | Junior Power Timer flat spring contacts with strand sealing. |
| DFK ELA | Double flat spring contacts with strand sealing. |
| Elo | Electronic contacts with and without strand sealing. Manufacturer: Siemens. |
| Elo Power | Electronic contacts for heavy loads with and without strand sealing. Manufacturer: Siemens. |
| MQS | Micro Quadlock System electronic contacts with and without strand sealing. Manufacturer: AMP. |
| MPQ | Micro Power Quadlock electronic contacts for heavy loads with and without strand sealing. Manufacturer: AMP. |
| D 1.5 / 2.5 | Round contacts of 1.5 mm or 2.5 mm diameter. |
Ultrasonic-Welded Connectors:

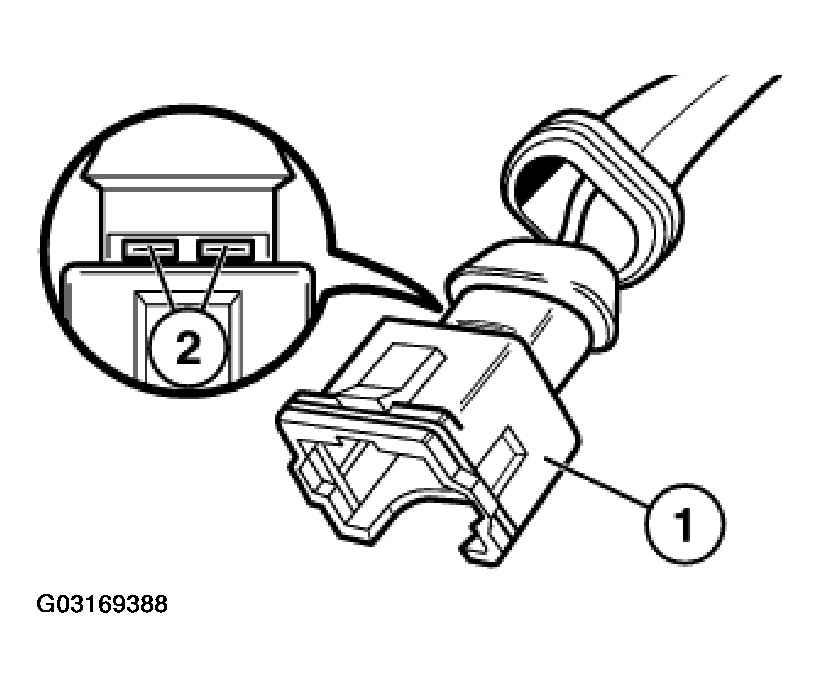

Ultrasonic-welded connectors (1) can be identified by the welds (2) on their longitudinal side.
The contacts of these connectors cannot be replaced. Replace plug completely.
NOTE:
Special tools referred to in the repair instructions below are contained in the following special tool kits:
Release and press-out tool 61 1 150
Repair Instructions For Opening Plug Housings And Removing Contacts Of Different Plug Systems:
Plug System D 1.5/D 2.5:
- Circular plugs, 7-, 8-pin, System D 2.5.
- Circular plugs, 13-pin, System D 2.5.
- Circular plugs, 20-pin, System D 2.5.
- Circular plugs, 4-, 7-, 10-, 12-, 25-pin, System D 1.5/D 2.5.
- In-line plugs, 15-pin, System D 2.5.
- In-line plugs, 8-, 12-pin, System D 2.5.
- In-line plugs, 30-pin, System D 2.5.
- In-line plugs, 20-pin, System D 2.5.
Plug System JPT/MDK/DFK:
- In-line plugs, 2-pin, System JPT ELA.
- In-line plugs, 2-pin, System MDK 3plus 2.8.
- In-line plugs, 4-pin, System DFK ELA.
Plug System Elo/Elo-Power:
- In-line plugs, 4-, 10-pin, System Elo.
- In-line plugs, 6- to 50-pin, System Elo.
- In-line plugs, 3-, 6-pin, System Elo-Power 2.8.
Plug System MQS/MPQ:
- In-line plugs, 6-, 8-pin, System MQS.
- In-line plugs, 2-pin, System MPQ 2.8.
- Control unit plugs, 25-, 35-, 55-, 83-, 88-pin.
- In-line plugs, 24-pin, Hybrid System MQS/MPQ.
- Socket housing 42-, 43-pin, Hybrid System MQS / MPQ.
- Socket housings, 2x21-, 2x27-pin, Hybrid System MQS/MPQ, Elo/Elo-Power.
- In-line plugs, 30-pin, Hybrid System MQS/MPQ.
- Socket housings, 5-, 8-pin, System MQS/MPQ.
- Socket housing (radio plug), Hybrid System MQS/MPQ.
