61 13 ... Base of tab connector housings

Unlock hook (1) with special tool 61 1 360 and slide plug housing downwards out of base.

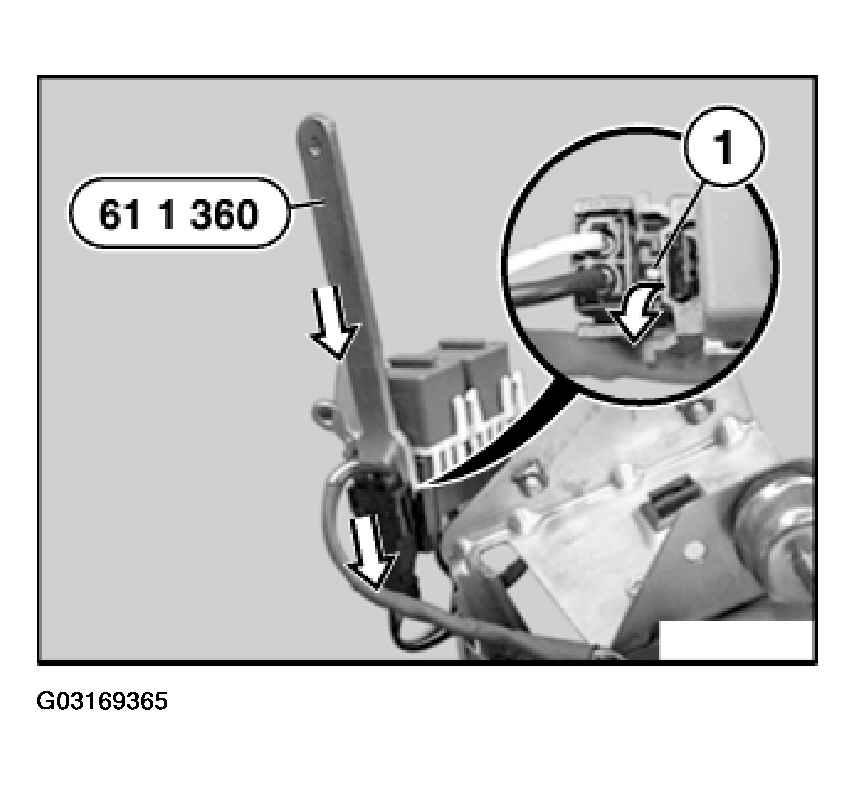

Fig 1: Unlocking Hook With Special Tool
G03169365Courtesy of BMW OF NORTH AMERICA, INC.
