Component Identification

NOTE: Use illustrations to identify system componenets.

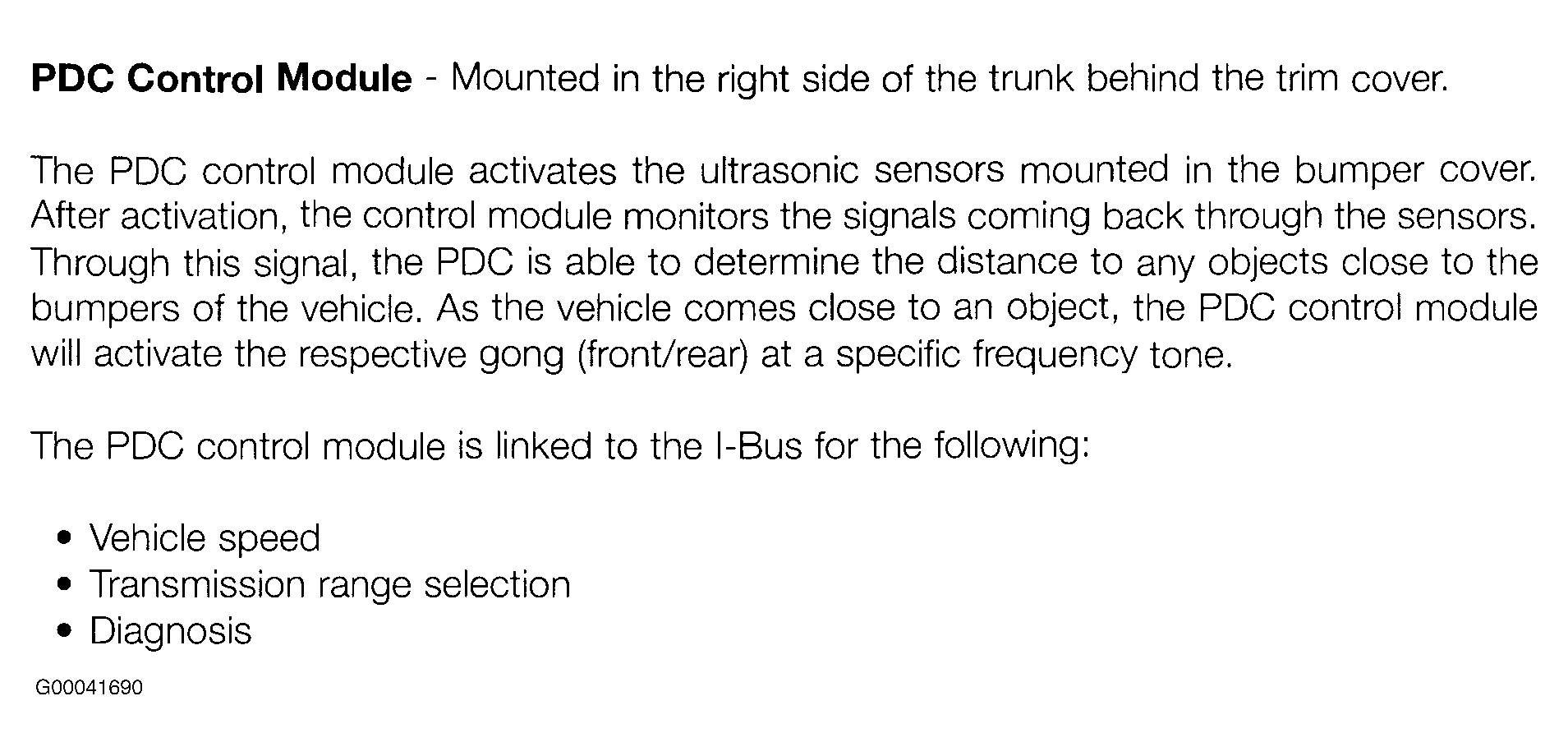

Fig 1: Identifying PDC Control Module

Courtesy of BMW OF NORTH AMERICA, INC.

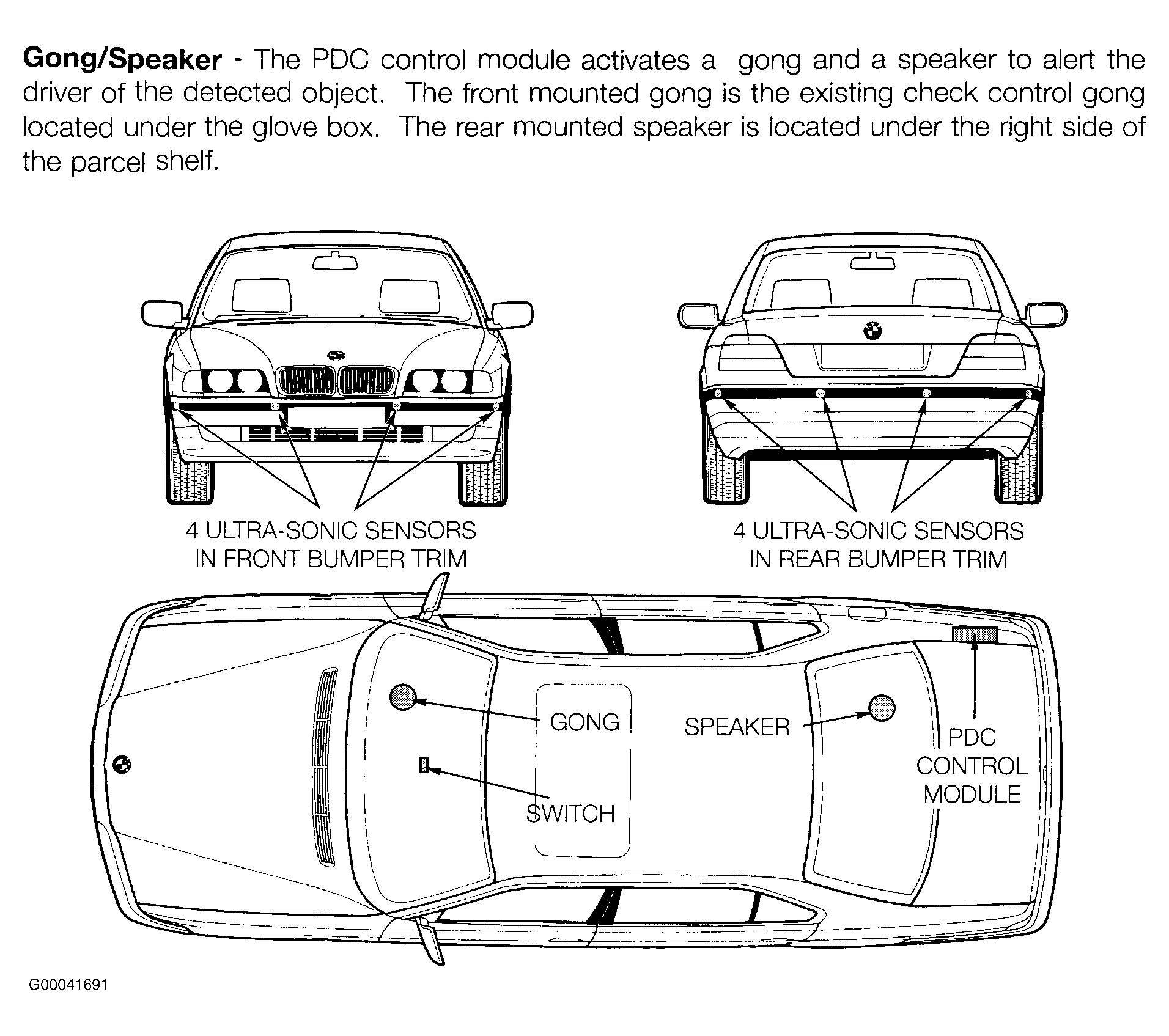

Fig 2: Identifying Gong/Speaker

Courtesy of BMW OF NORTH AMERICA, INC.

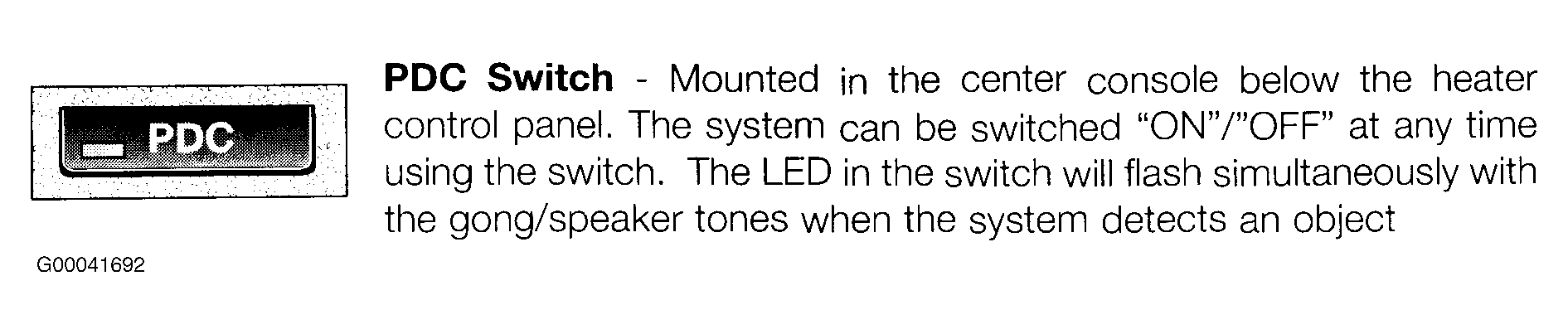

Fig 3: Identifying PDC Switch

Courtesy of BMW OF NORTH AMERICA, INC.

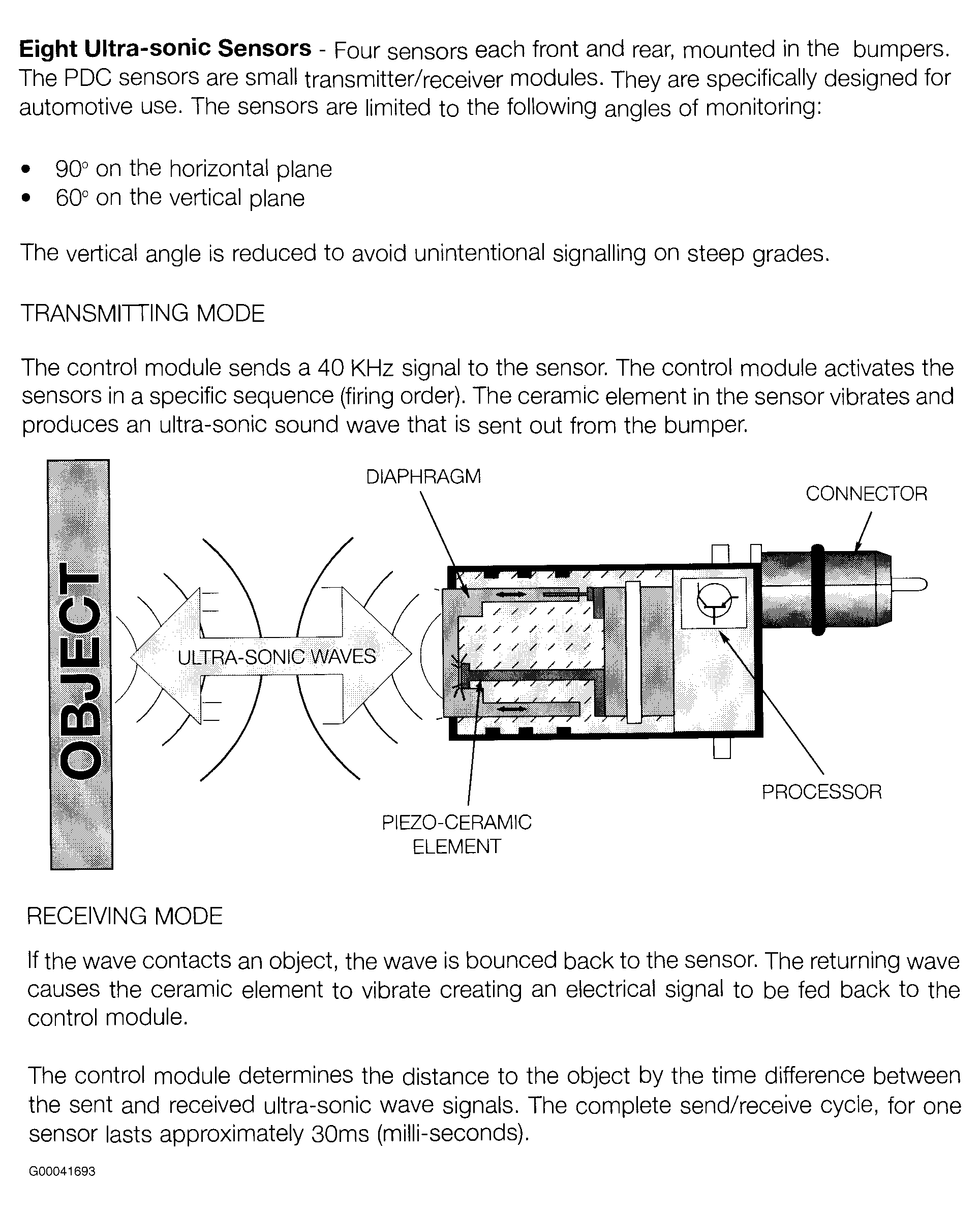

Fig 4: Identifying Ulta-Sonic Sensors

Courtesy of BMW OF NORTH AMERICA, INC.
