System Components: Inputs - Processing - Outputs

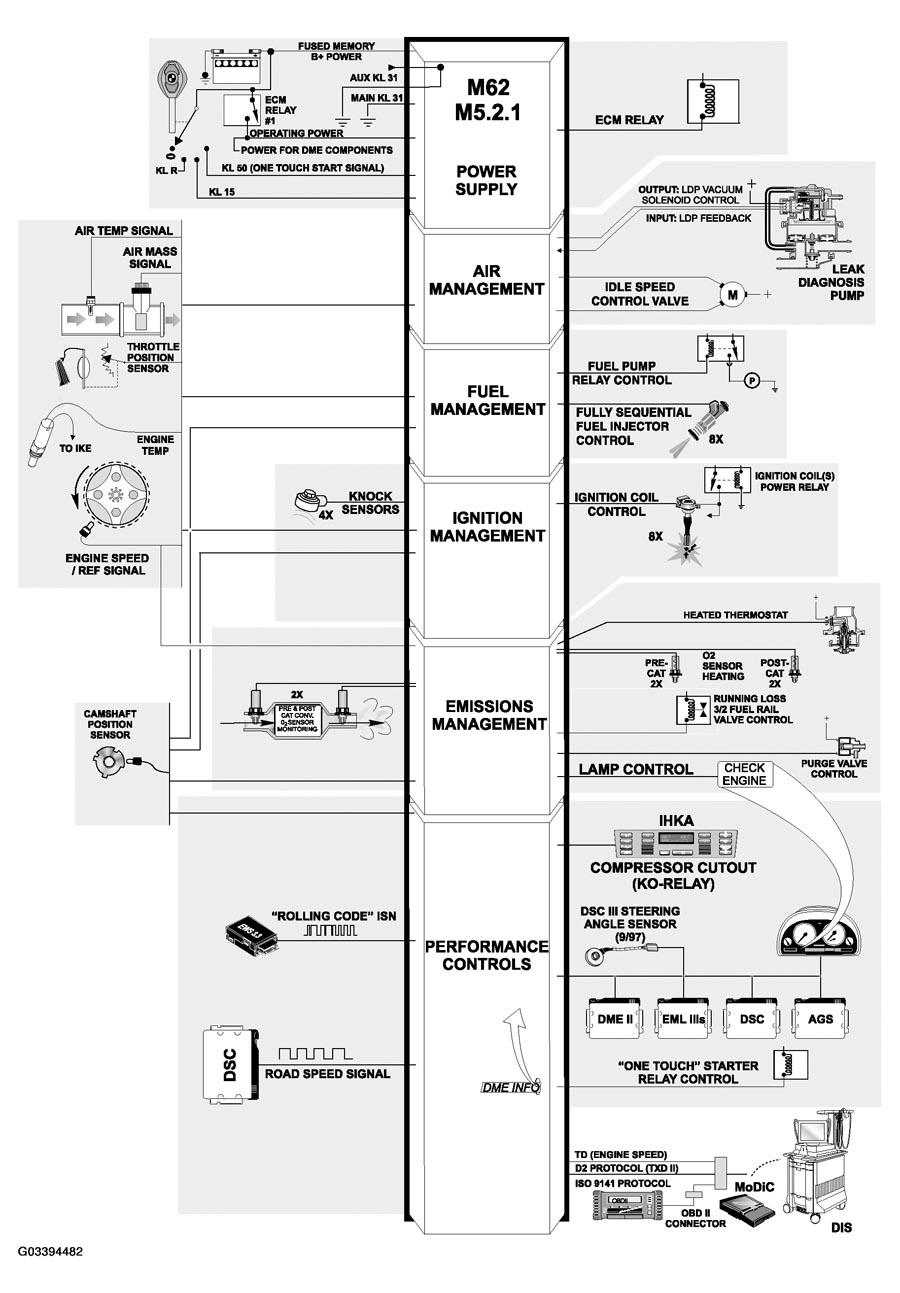

Fig 1: Identifying System Components: Inputs - Processing - Outputs System (1 Of 3)
G03394482

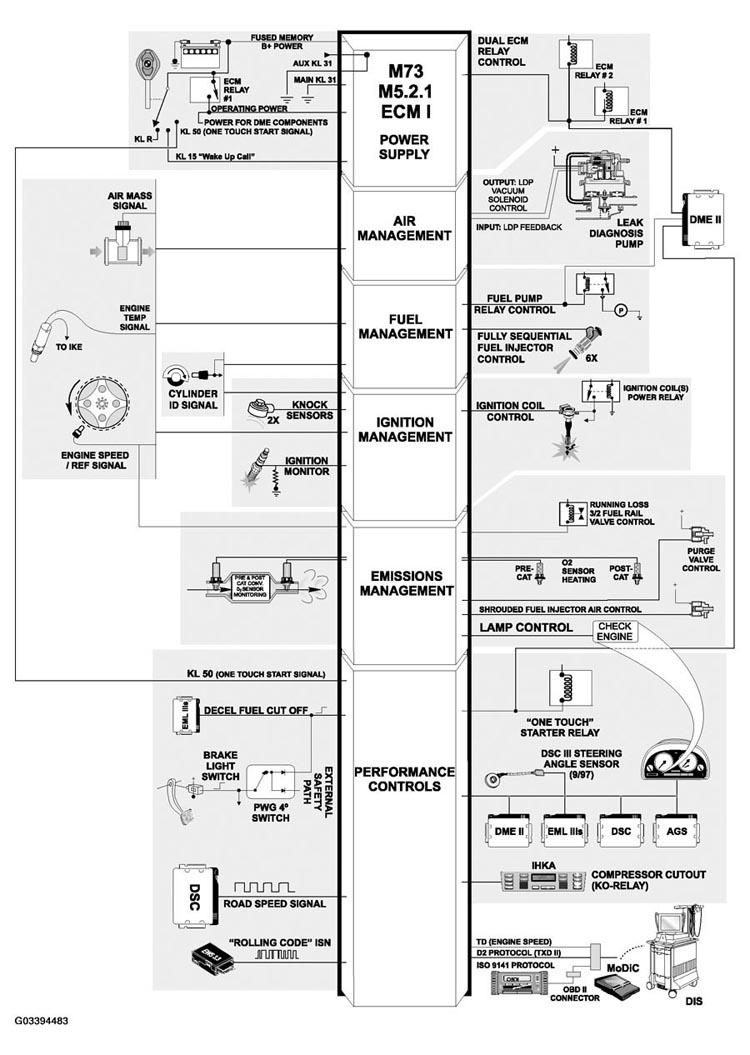

Fig 2: Identifying System Components: Inputs - Processing - Outputs System (2 Of 3)
G03394483

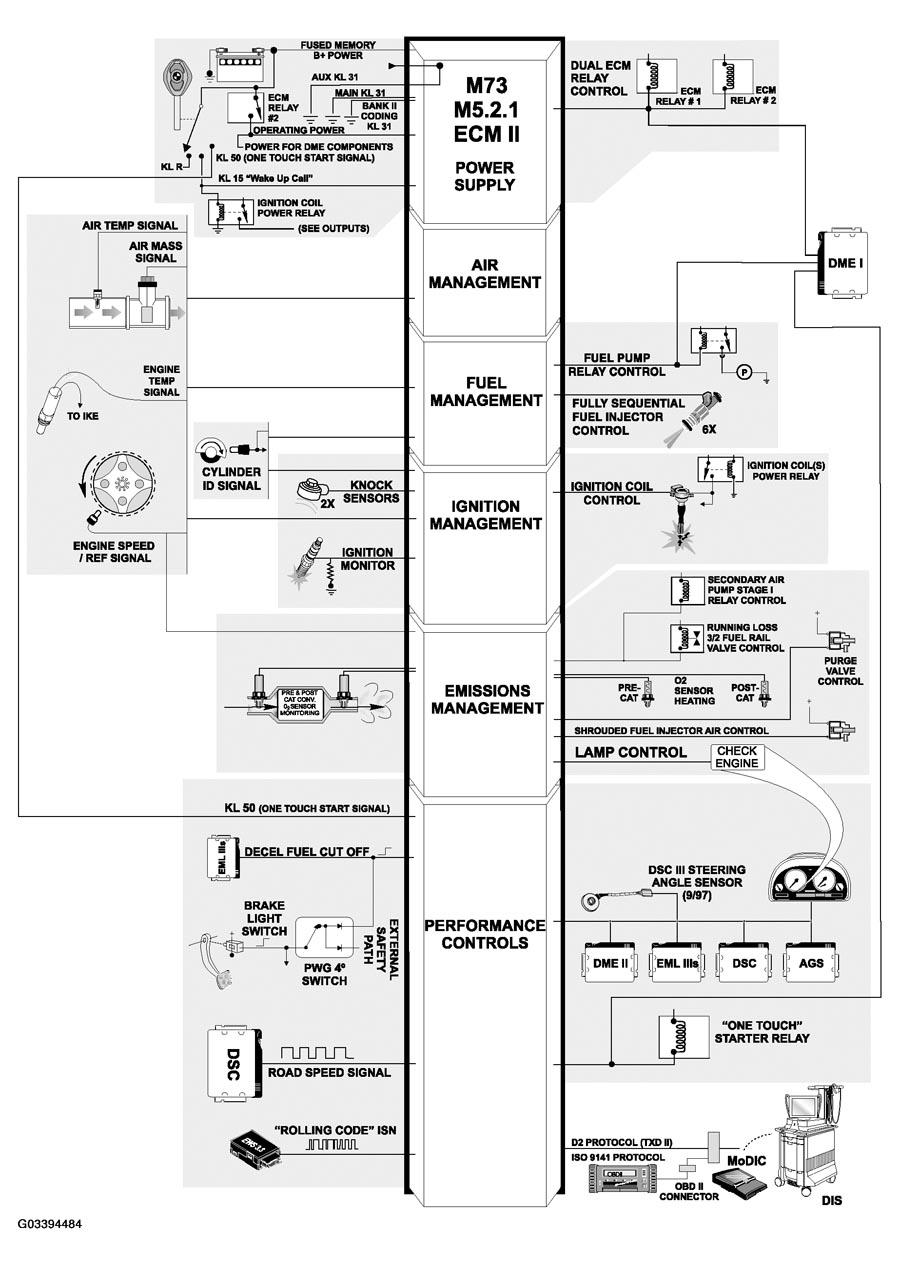

Fig 3: Identifying System Components: Inputs - Processing - Outputs System (3 Of 3)
G03394484
