61 13... Special tools for wiring harness repairs

Special tools required:

61 1 150
61 1 190
61 4 320
61 8 084
61 9 020
61 9 029
61 9 041
61 9 042
61 9 043
61 9 044

Repair ranges I, II, III for vehicle electrical system

I Order No.: 81 24 9 408 080

II Order No.: 81 24 9 408 300

III Order No.: 81 24 9 408 400

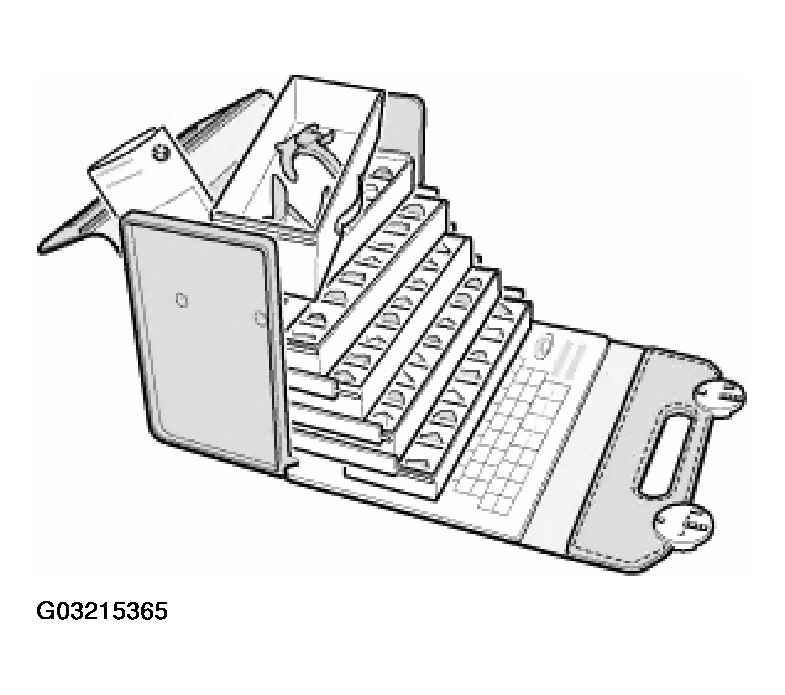

Fig 1: Identifying Wiring Harness Repair Special Tools (1 Of 9)

Repair range IV for vehicle electrical system, special tool 61 9 084.

Contents:

Special tool 61 9 041 (hand pliers)
Special tool 61 9 042 (matrix)
Special tool 61 9 043 (wire
Special tool 61 9 044 (matrix)

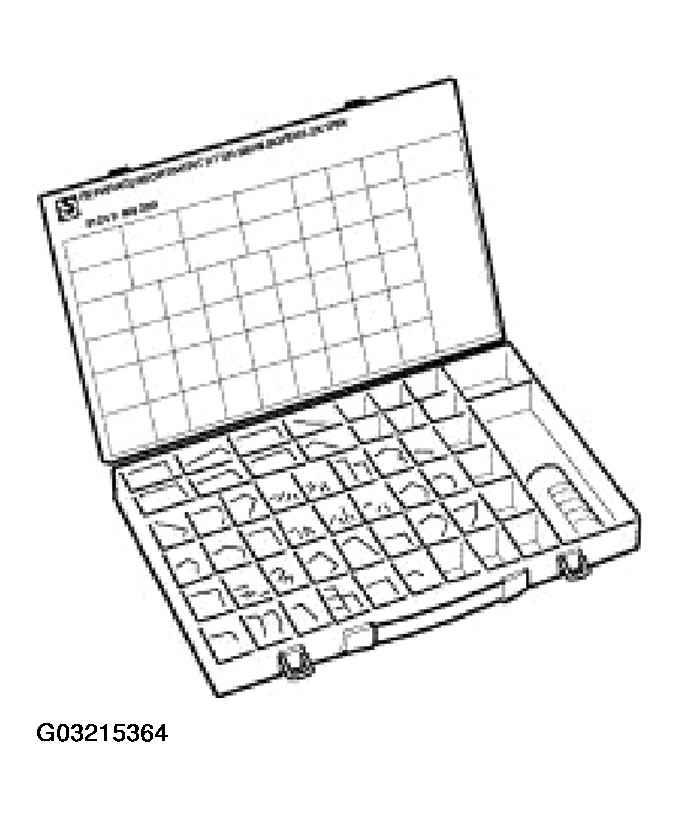

Fig 2: Identifying Wiring Harness Repair Special Tools (2 Of 9)

Special tool 61 9 043 (wire stripper with wire cutter) for cutting and stripping wires.

Handling:

Cutting to length and stripping insulating from cables

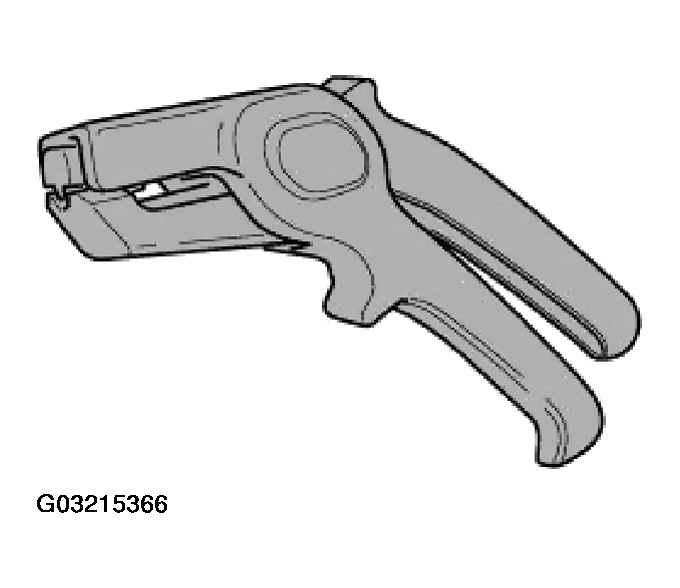

Fig 3: Identifying Wiring Harness Repair Special Tools (3 Of 9)

Special tool 61 9 041 (hand pliers) with special tool 61 9 042 (matrix) for crimping connectors and contact tubes for fan connectors up to a wire cross-section of 2.5 mm² and for pushing on contact tubes for fan connectors.

Handling:

Crimping stop parts (contacts).

Fan connector for retrofitting/repairs.

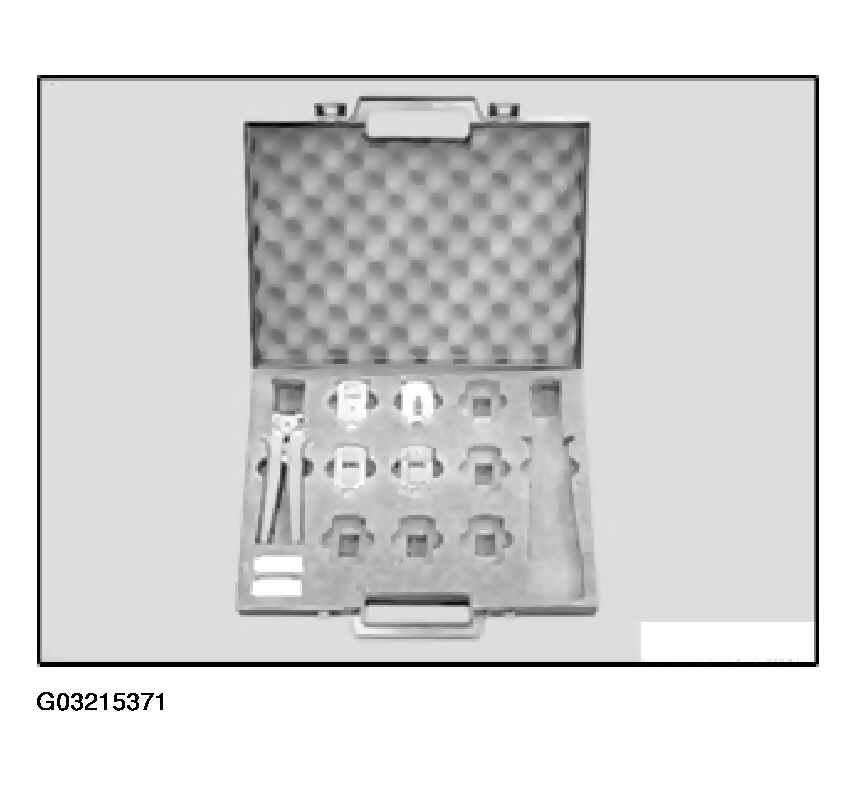

Fig 4: Identifying Wiring Harness Repair Special Tools (4 Of 9)

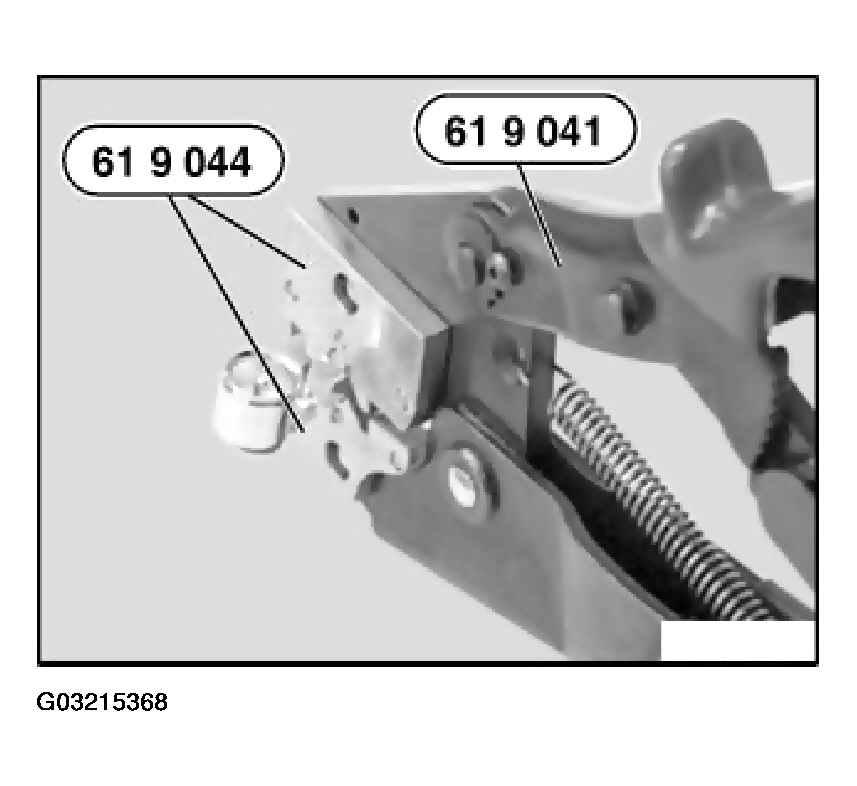

Special tool 61 9 041 (hand pliers) with special tool 61 9 044 (matrix) for crimping cable guide and strain relief device on antenna elbow plug.

Handling:

Antenna elbow plug on radio receiver.

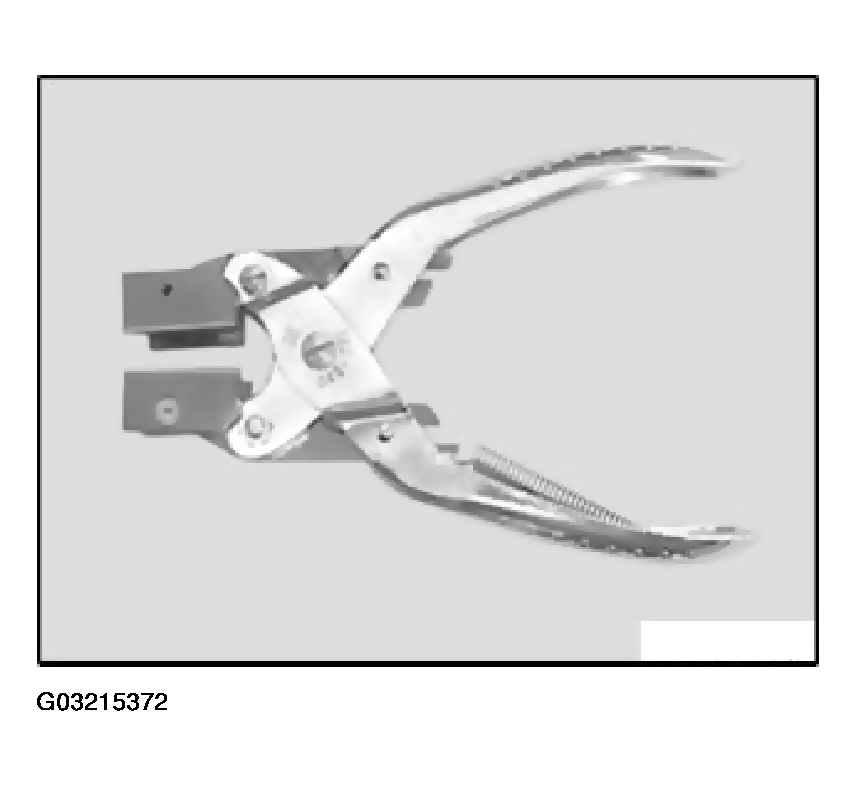

Fig 5: Identifying Wiring Harness Repair Special Tools (5 Of 9)

Special tool 61 1 150 (release and pressing out tool) for:

releasing round plug housings
releasing relay carriers
pressing out contacts
removing indicator lights

Handling:

Opening plug housings and removing contacts of different plug systems

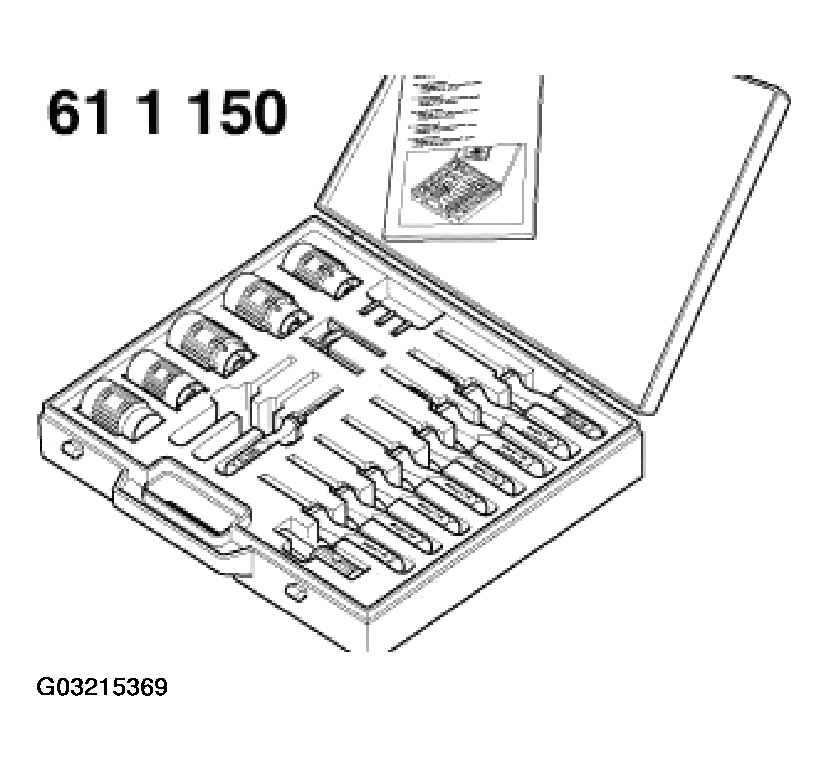

Fig 6: Identifying Wiring Harness Repair Special Tools (6 Of 9)

Repair kit for ignition cables and for crimping fan connector receptacles 4 mm²

Handling:

Crimping stop parts (contacts).

Service Information 1 03 89 (037)

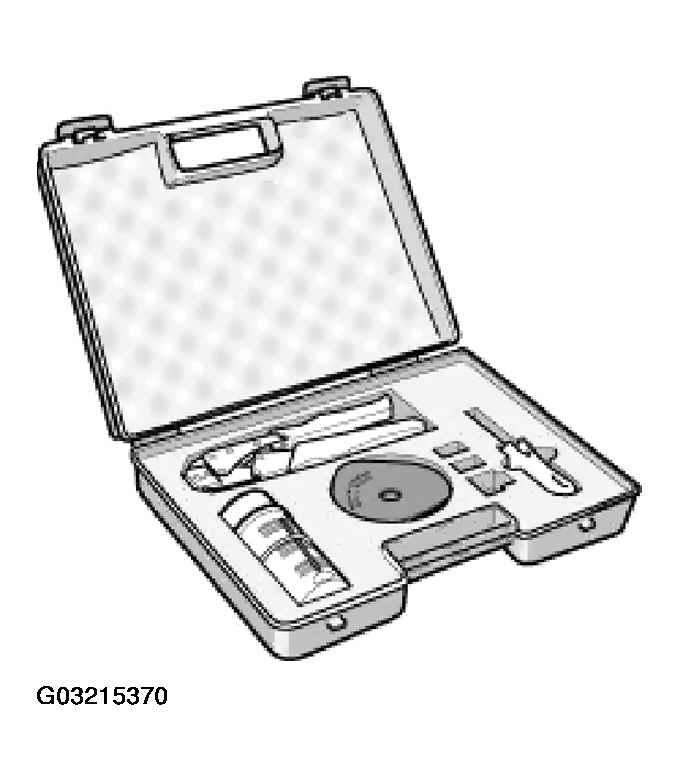

Fig 7: Identifying Wiring Harness Repair Special Tools (7 Of 9)

Special tool 61 4 320 (crimping set with pliers) for:

Cutting to length and stripping insulation from optical fibers
Crimping optical fibers
Crimping MPQ contacts
Crimping MQS contacts

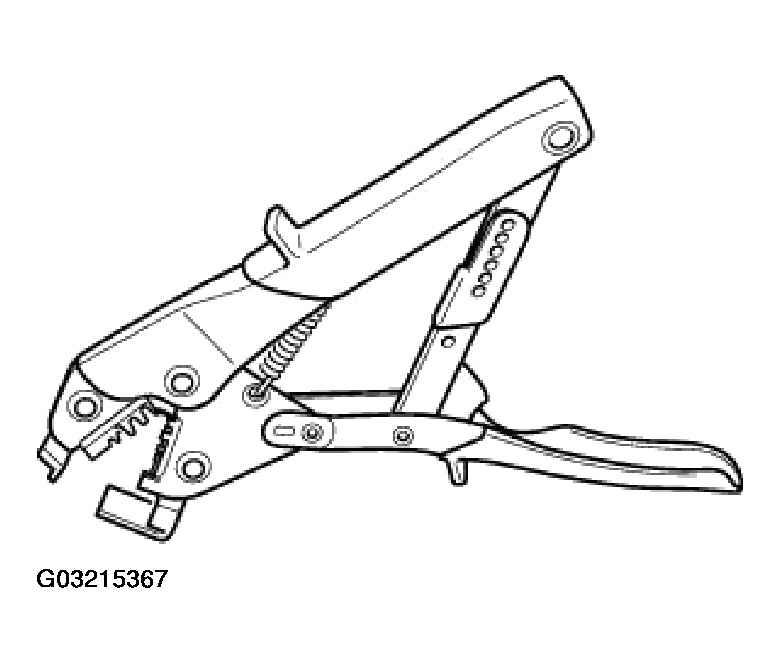

Fig 8: Identifying Wiring Harness Repair Special Tools (8 Of 9)

Special tool 61 1 190 pliers for insulation displacement connector for repairing ribbon cables.

Handling:

Repairing ribbon cables.

Fig 9: Identifying Wiring Harness Repair Special Tools (9 Of 9)
