61 13... Front left wiring harness repair

  1. Remove the driver's seat
  2. refer to 52 13 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL / MANUAL) .

Remove the left bottom panelling.

Loosen the screws and take out the cable cover.

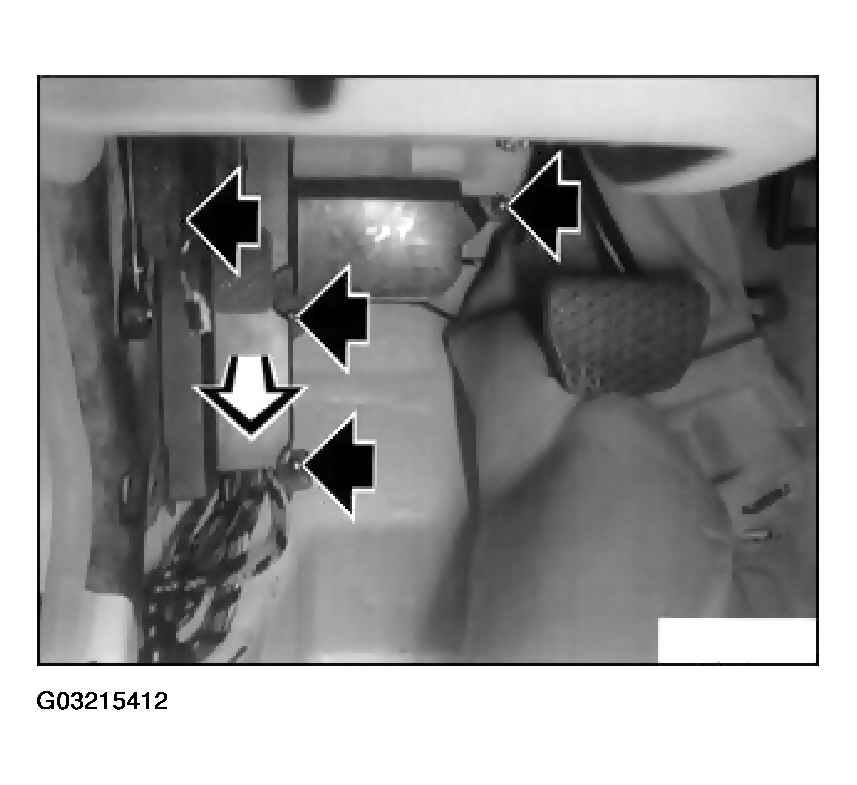

Fig 1: Loosening Screws And Taking Out Cable Cover
G03215412

Cut through the wiring harness exactly at the rubber grommet and lay the wiring harness back into the footwell.

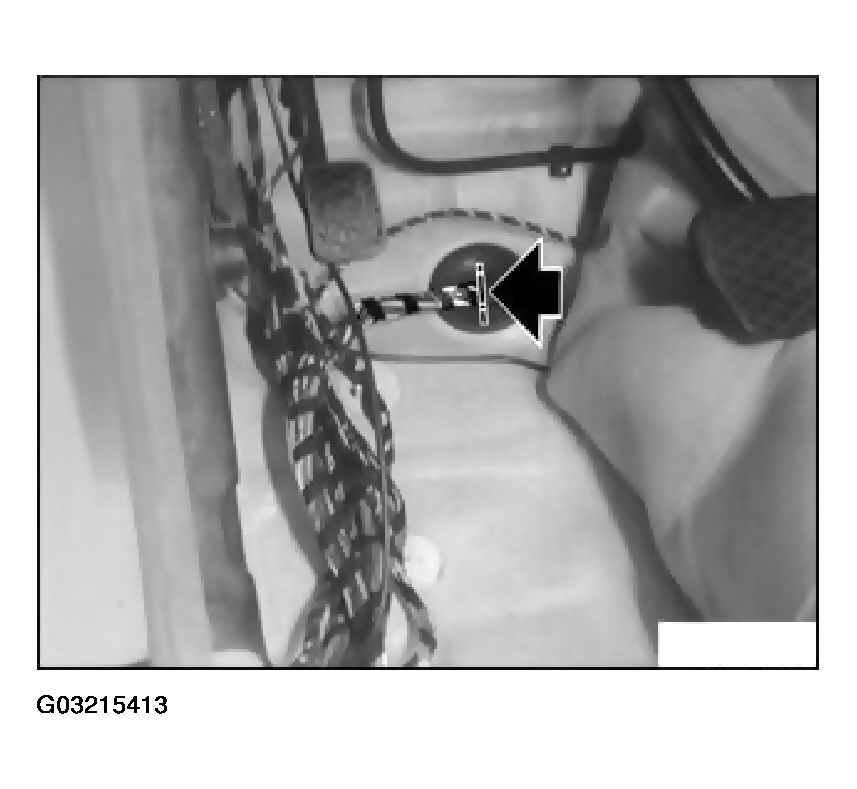

Fig 2: Cutting Through Wiring Harness Exactly At Rubber Grommet
G03215413

Lift up the kick-strip and lay the connector from the repair cable under the kick-strip. Equip all cables from the main wiring harness that are of similar color with limit stop parts and pin them into the supplied mating connector. Connect the connector to the mating connector and lay in the footwell. Cut out and lay the kick-strip in the area of the plug connection.

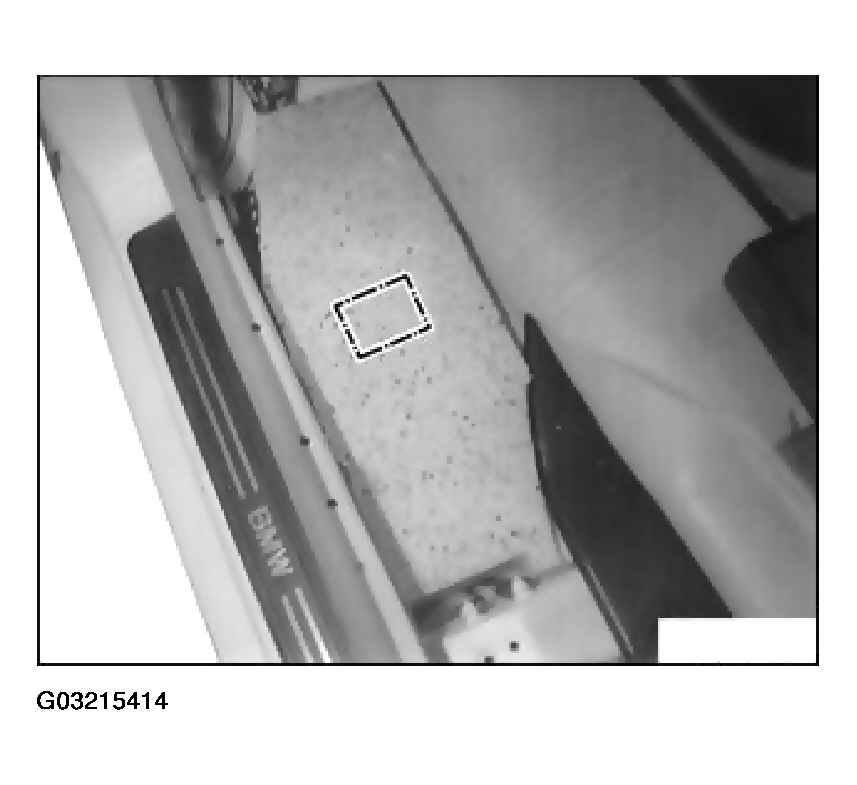

Fig 3: Lifting Up Kick-Strip
G03215414

Installation:

  1. Set the supplied cover over the recess in the styrofoam.

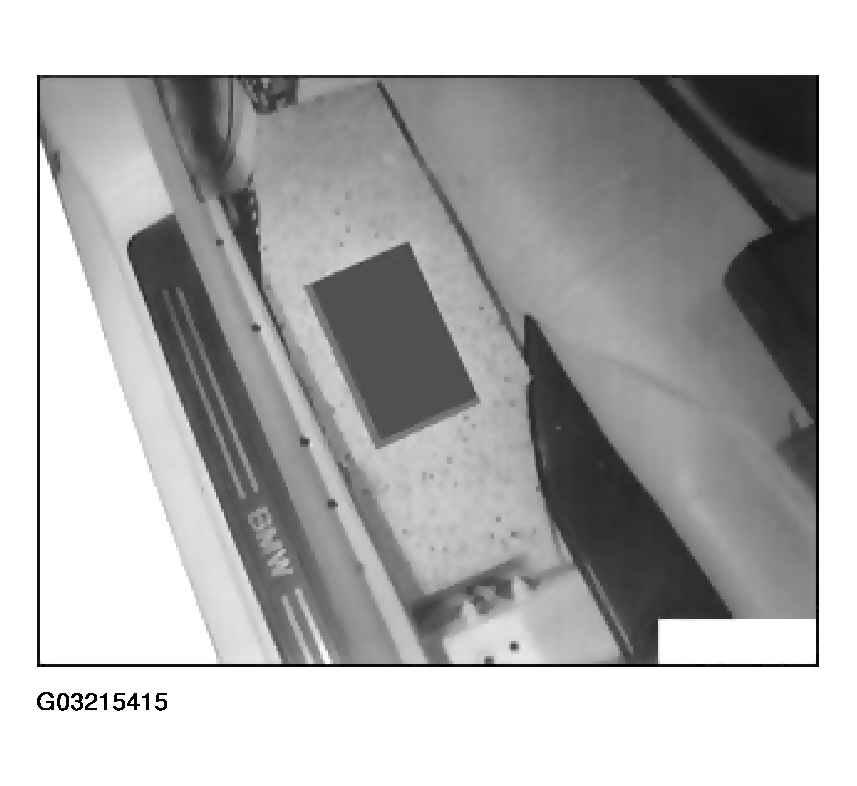

Fig 4: Setting Supplied Cover Over Recess In Styrofoam
G03215415

Loosen the nuts (1) and clips (2), unclip the cable cover and turn it around.

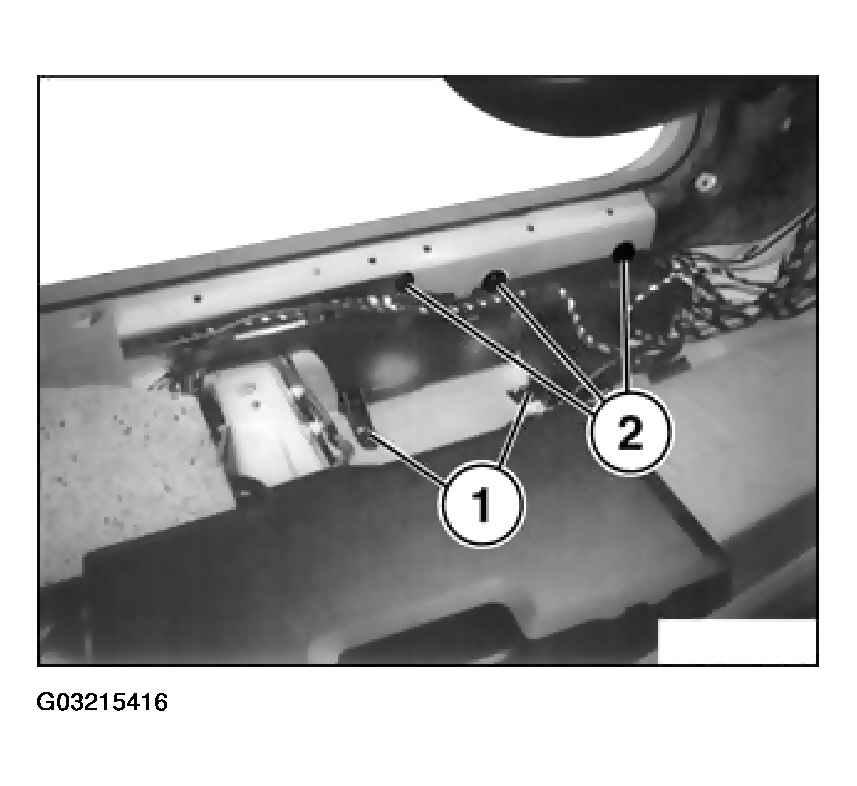

Fig 5: Unclipping Cable Cover
G03215416

Unclip the required terminal connector from the holder.

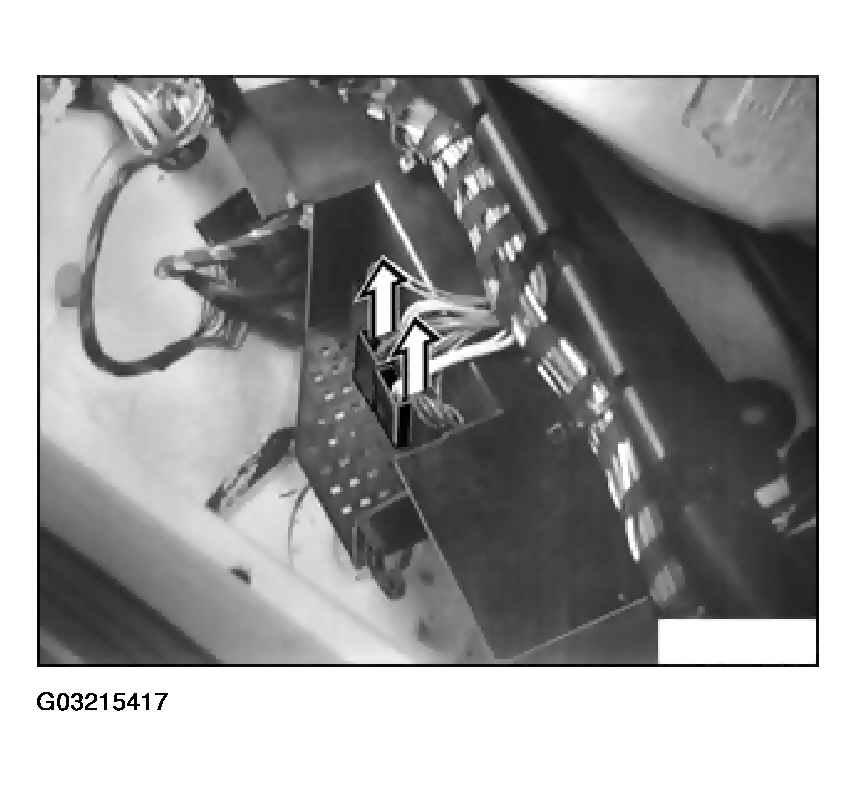

Fig 6: Unclipping Required Terminal Connector From Holder
G03215417

Unclip the required terminal connector from the holder, pull out the insulation housing and pull out the cable that is to be changed.

NOTE: Work out and dispose of the old cable from the main wiring harness up to the separating point.

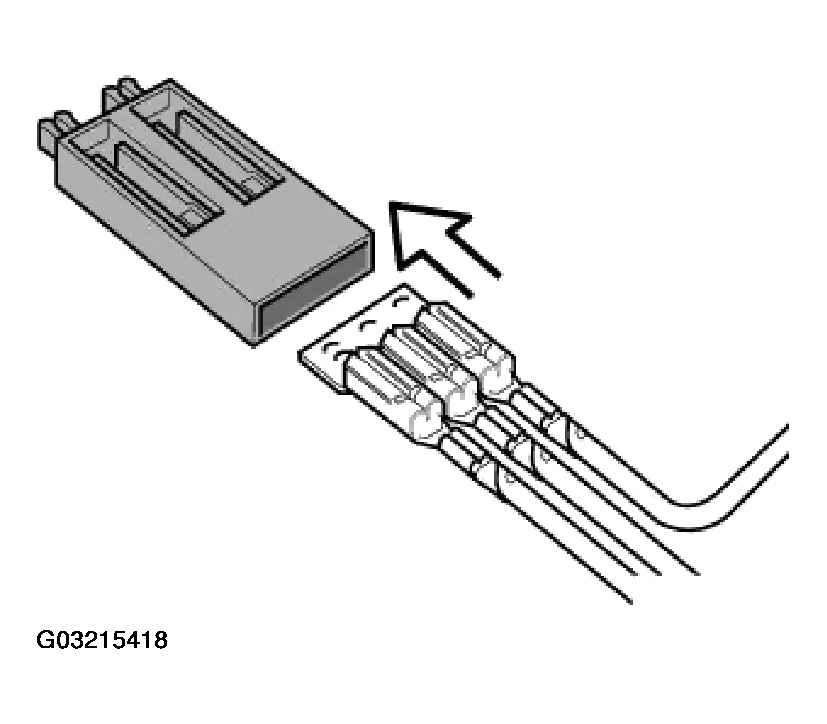

Fig 7: Unclipping Required Terminal Connector From Holder
G03215418

Place the terminal connector into special tool 61 9 041/042.

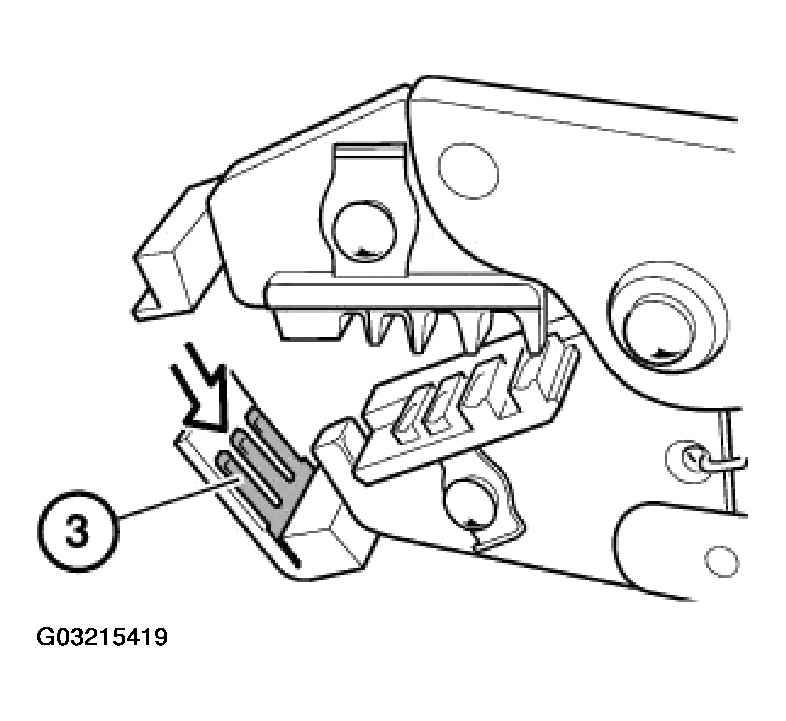

Fig 8: Placing Terminal Connector Into Special Tool
G03215419

Place the cable from the repair wiring harness onto the terminal connector.

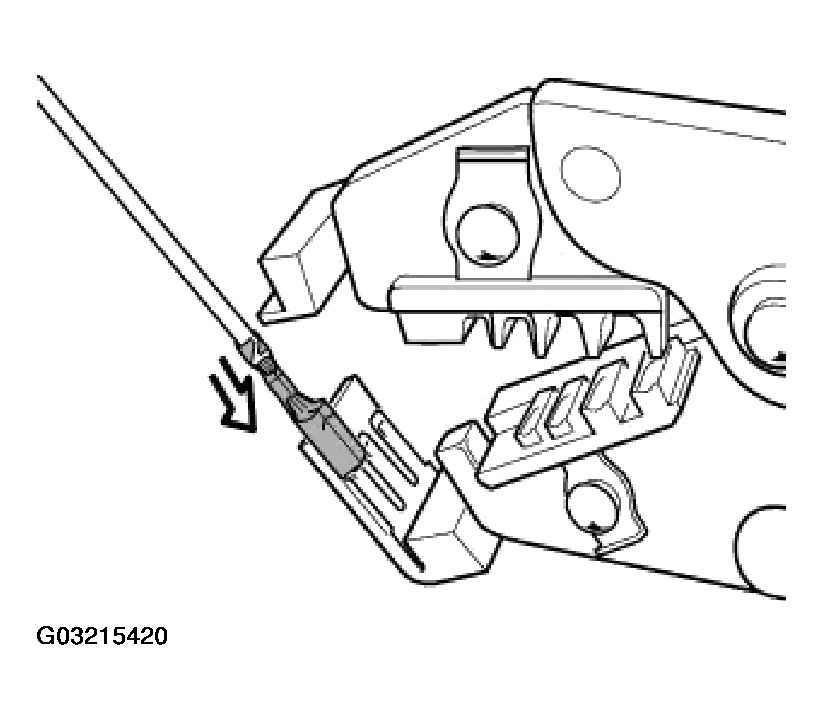

Fig 9: Placing Cable From Repair Wiring Harness Onto Terminal Connector
G03215420

Squeeze special tool and push on contact as far as it will go.

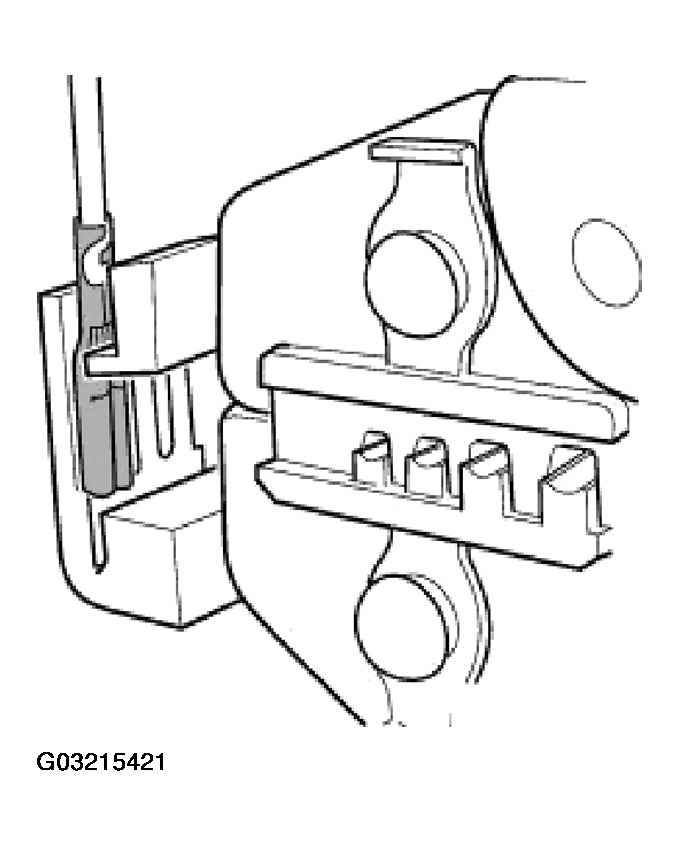

Fig 10: Inserting Special Tool
G03215421

Push the terminal connector into the insulation housing and fasten. Fasten the insulation housing into the bracket.

Fig 11: Pushing Terminal Connector Into Insulation Housing And Fasten
G03215422
