General Electrical System - Repair Instructions
>>
Plug Connection Terminal
>>
61 13... Base of tab connector housings
61 13... Base of tab connector housings
Unlock hook (1) with special tool 61 1 360 and slide plug housing downwards out of base.

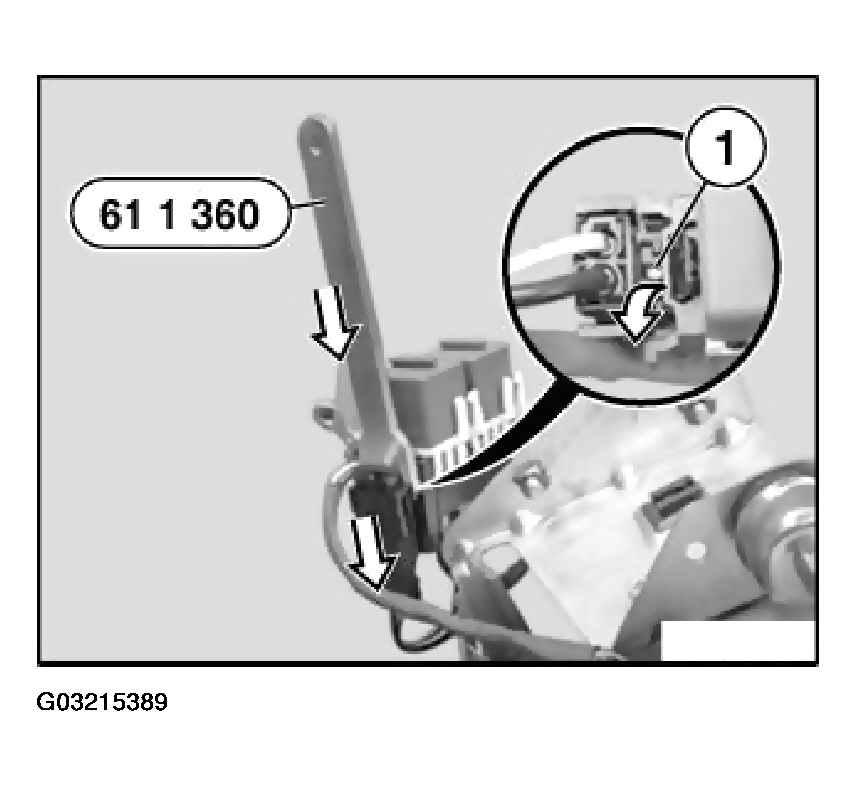

Fig 1: Unlocking Hook With Special Tool
