Diagnostic connector in engine compartment:

Connect up MoDiC or BMW DIS.

Interrogate DME fault memory.

Note down fault messages stored in memory.

Further information on troubleshooting in line with DIS or MoDiC instructions.

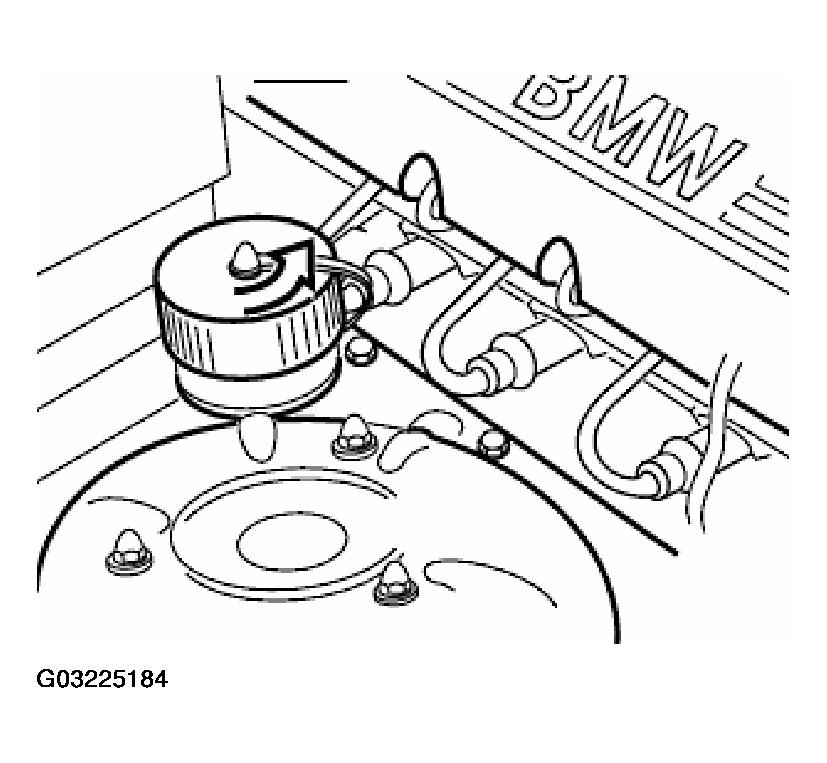

Fig 1: Removing Engine Compartment Diagnostic Connector Cover
G03225184
