11 7 450 Simulator
SIMULATOR - GENERAL SPECIFICATION
| In conjunction with: | Standard workshop exhaust emission tester |
| Note: | For Bosch oxygen sensor |
| Engine: | M10, M20, M30, M40, M42, M43, M44, M50, M52, M60, M62, M70, M73, S14, S38, S50B30, S50B32, S50US, S52US |
| Storage location: | K 102 |
| SI number: | 2 07 93(700) |
| Order number: | 11 7 450 |

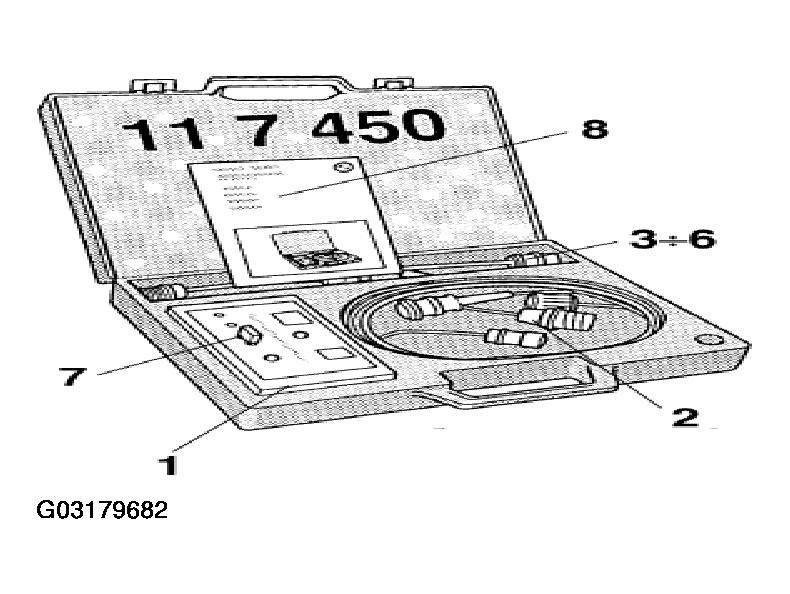

| Simulator | |
| Consisting of: | |
| 1 = 11 7 451 | Simulator (operator unit) |
| 2 = 11 7 452 | 4-pin connecting cable, coding A |
| Note: Connection to wiring harness and oxygen sensor - engine: M40, M42, M43, M50, M70 | |
| 3 = 11 7 453 | 4-pin plug connection, coding B |
| Note: Connection to oxygen sensor - engine: S50/B30 | |
| 4 = 11 7 454 | 4-pin plug connection, coding B |
| Note: Connection to wiring harness - engine: S50/B30 | |
| 5 = 11 7 455 | 1- and 3/4-pin plug connection |
| Note: Connection to oxygen sensor with Bosch or Cannon plug connection - engine: M10, M20, M30, S14 | |
| 6 = 11 7 456 | 1- and 3/4-pin plug connection |
| Note: Connection to wiring harness with Bosch or Cannon plug connection - engine: M10, M20, M30, S14 | |
| 8 = 11 7 458 | Plug-in jumper |
| 8 = 11 7 459 | Operating instructions |
