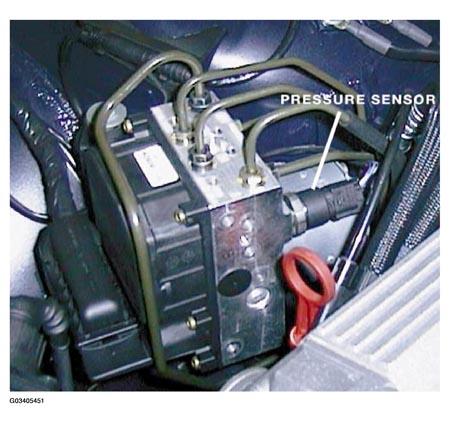

Brake Pressure Sensor

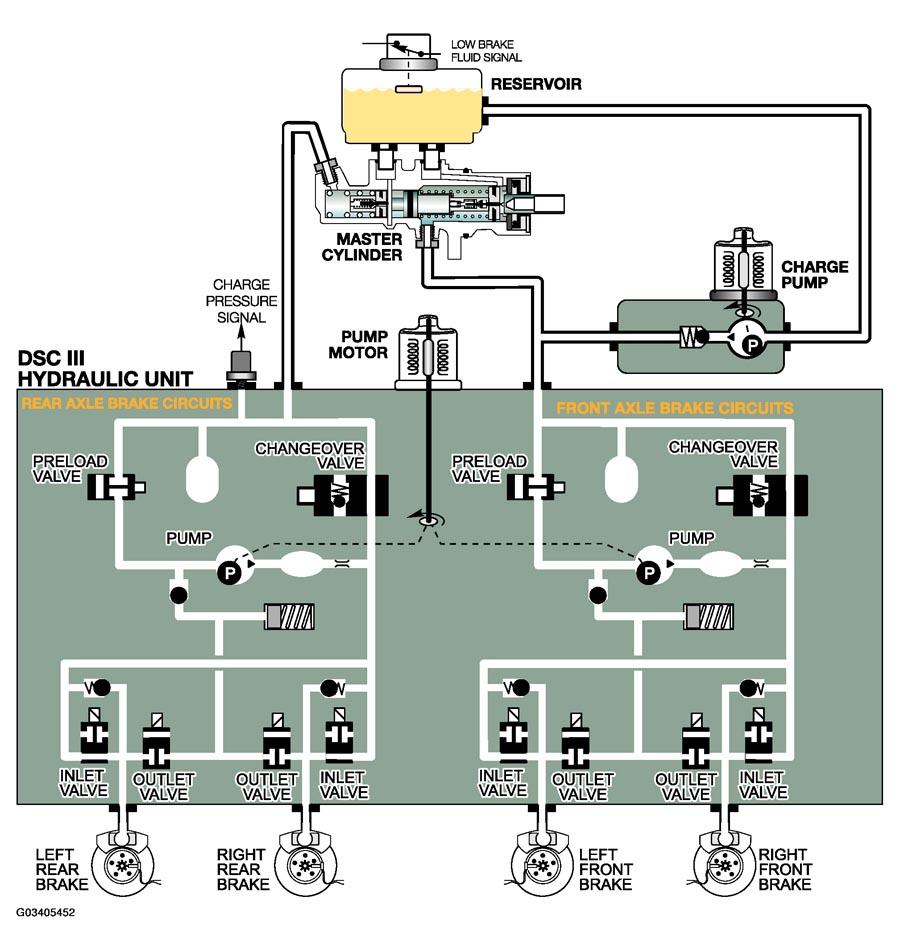

A brake pressure sensor is installed in the master cylinder to determine the degree of pressure build-up for Dynamic Brake Control. It is installed in the front axle brake circuit.

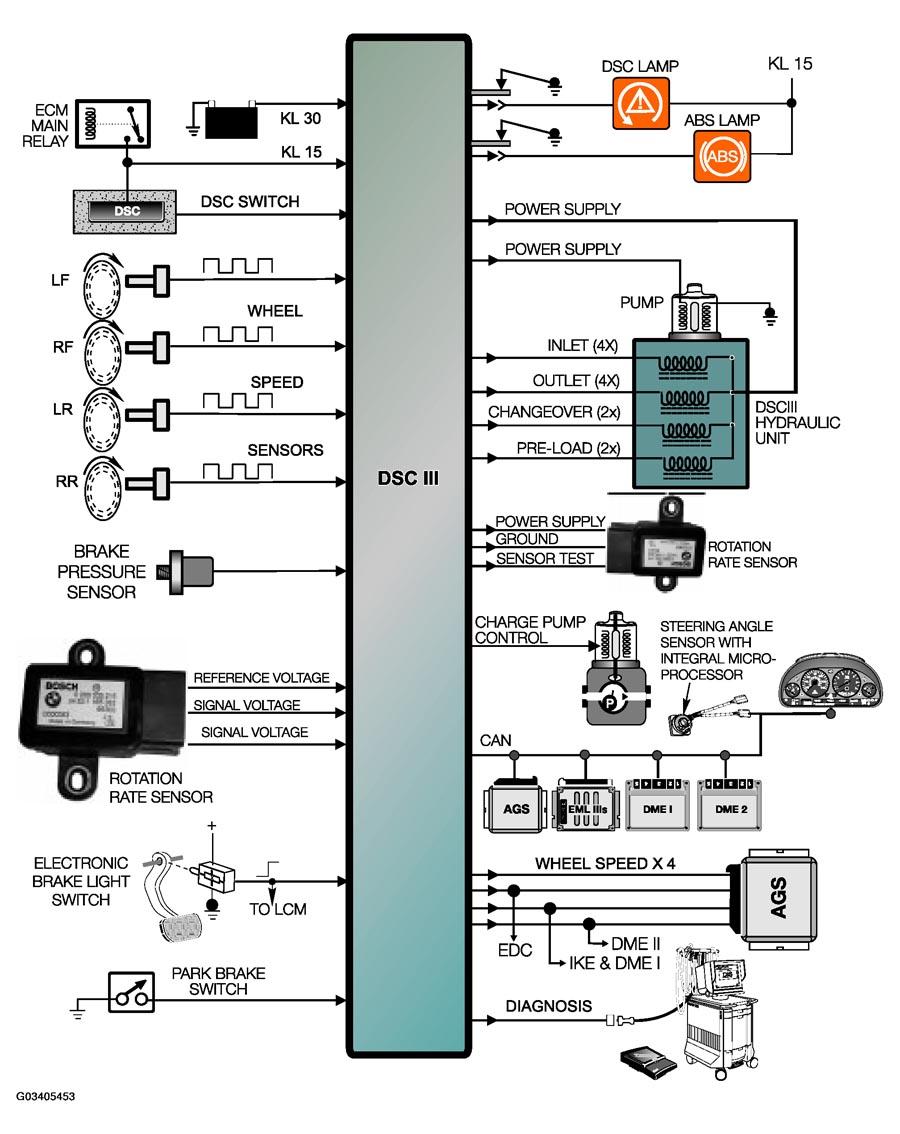

The sensor receives its power supply from the DSC control module and produces a linear voltage input signal ranging from 0.5 to 4.5 volts depending on how hard the brakes are applied.
