134 PIN BREAK OUT BOX

TECHNICAL SERVICE BULLETIN

134 PIN BREAK OUT BOX

Model(s): 1998-on BMW 540i

1997-on BMW 740i, 740iL, 750iL

Group: 04 - Tools and Equipment

Bulletin No.: 04 14 97

Date: November, 1997

MODELS AFFECTED

• E39 with M62 as of 9/97
• E38 with M62/73 as of 5/97

SITUATION

Distribution of the following tool will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC. Refer to Parts Information bulletin 01 01 95 for tool warranty details.

A new Break Out Box set has been developed to diagnose DME M5.2.1 control modules. The new Break Out Box set is made of 3 new boxes and 1 new cable. A previously distributed 26 pin Break Out Box is also utilized. You will be prompted through the DIS which box to attach depending on the troubleshooting involved.

134 Pin Adapter Set P/N 90 88 6 121 300

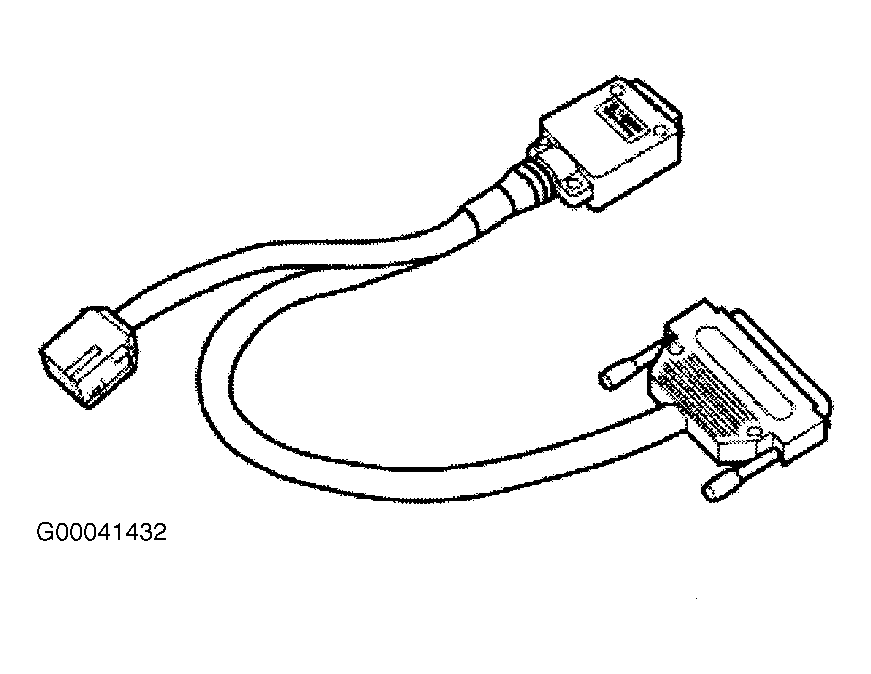

• 9 Pin Adapter Cable - See Fig 1 .

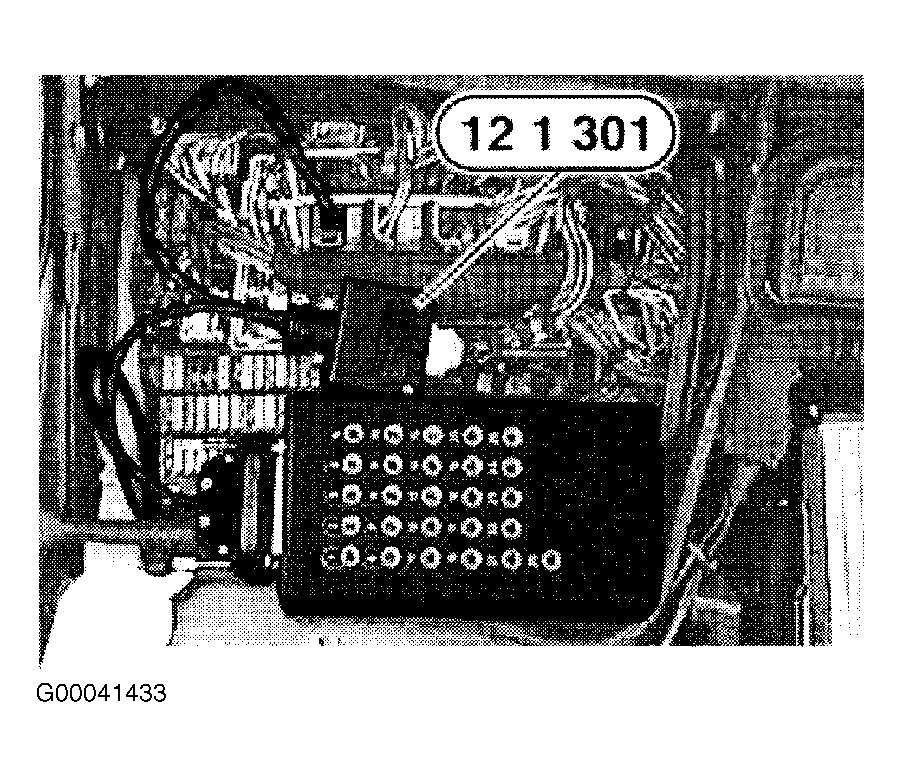

To be used in conjunction with previously distributed 26 pin break out box 88 88 6 611 459. See Fig 2 .

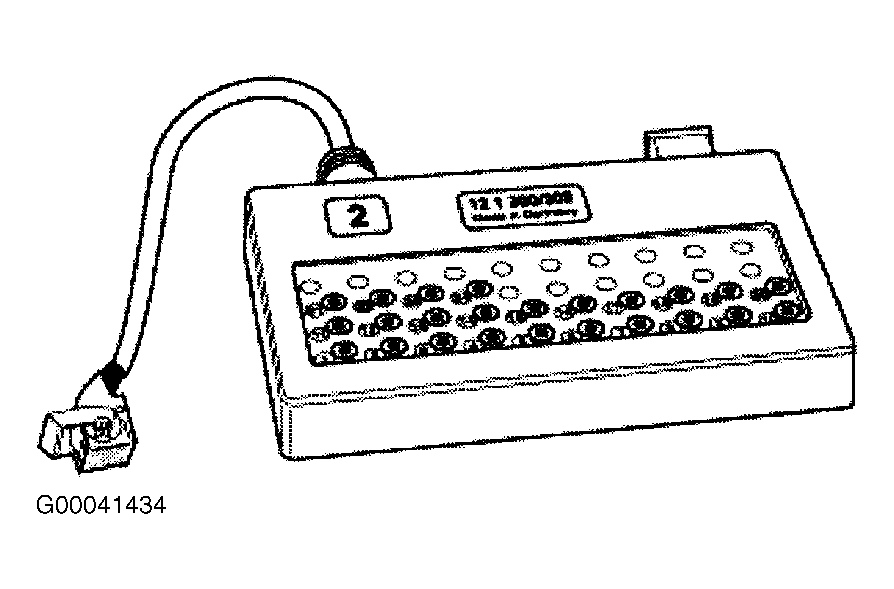

• 24 Pin Break Out Box - See Fig 3 .

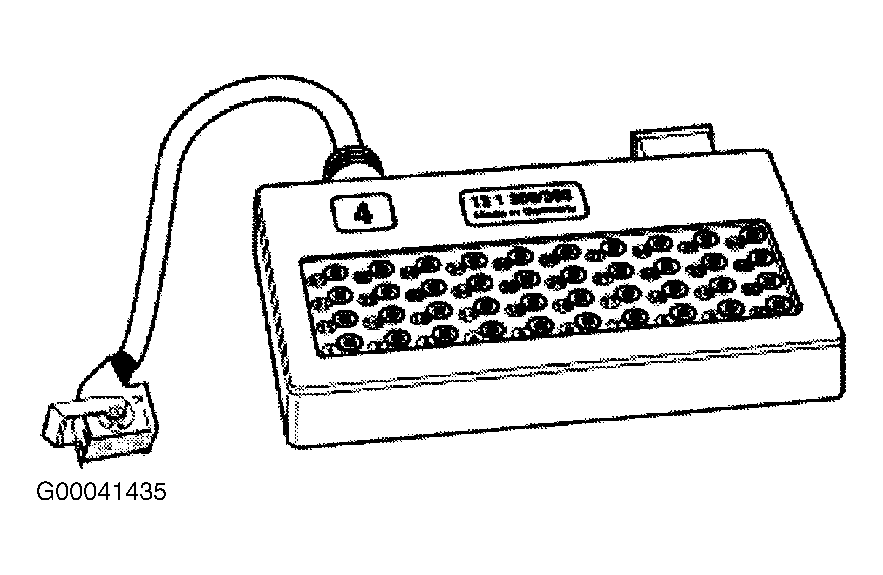

• 40 Pin Break Out Box - See Fig 4 .

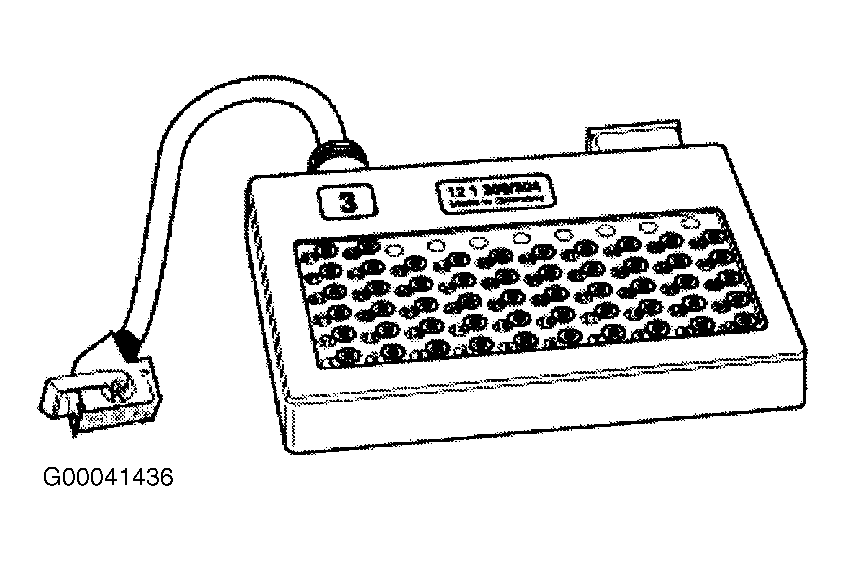

• 52 Pin Break Out Box - See Fig 5 .

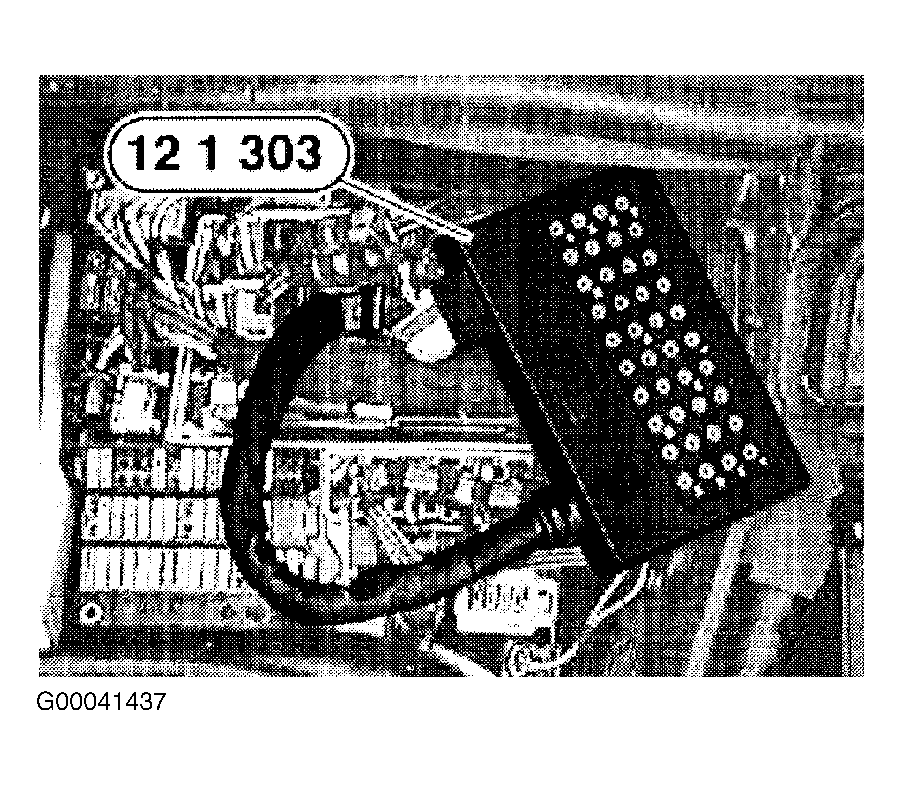

When prompted by the DIS either the 24, 26, 40 or 52 pin Break Out Box is to be connected to the DME for the purpose of troubleshooting. See Fig 6 .
