Disassembly & Reassembly

Disassembly and reassembly procedures are not available from manufacturer. Refer to illustrations for component locations. See Fig 1 and Fig 2 .

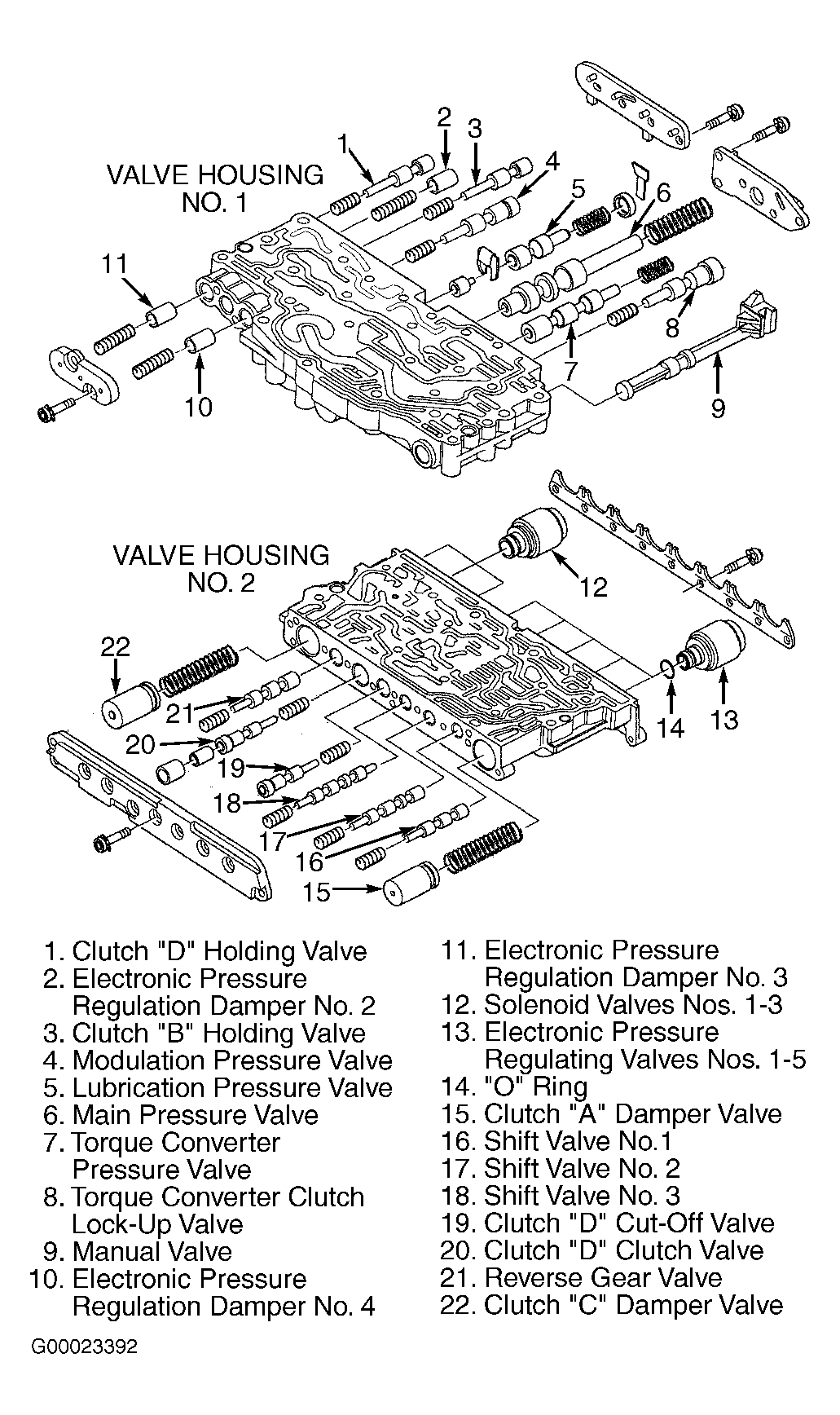

Fig 1: Exploded View Of Valve Housings No. 1 & 2

Courtesy of ZF GETRIEBE GMBH SAARBRUCKEN

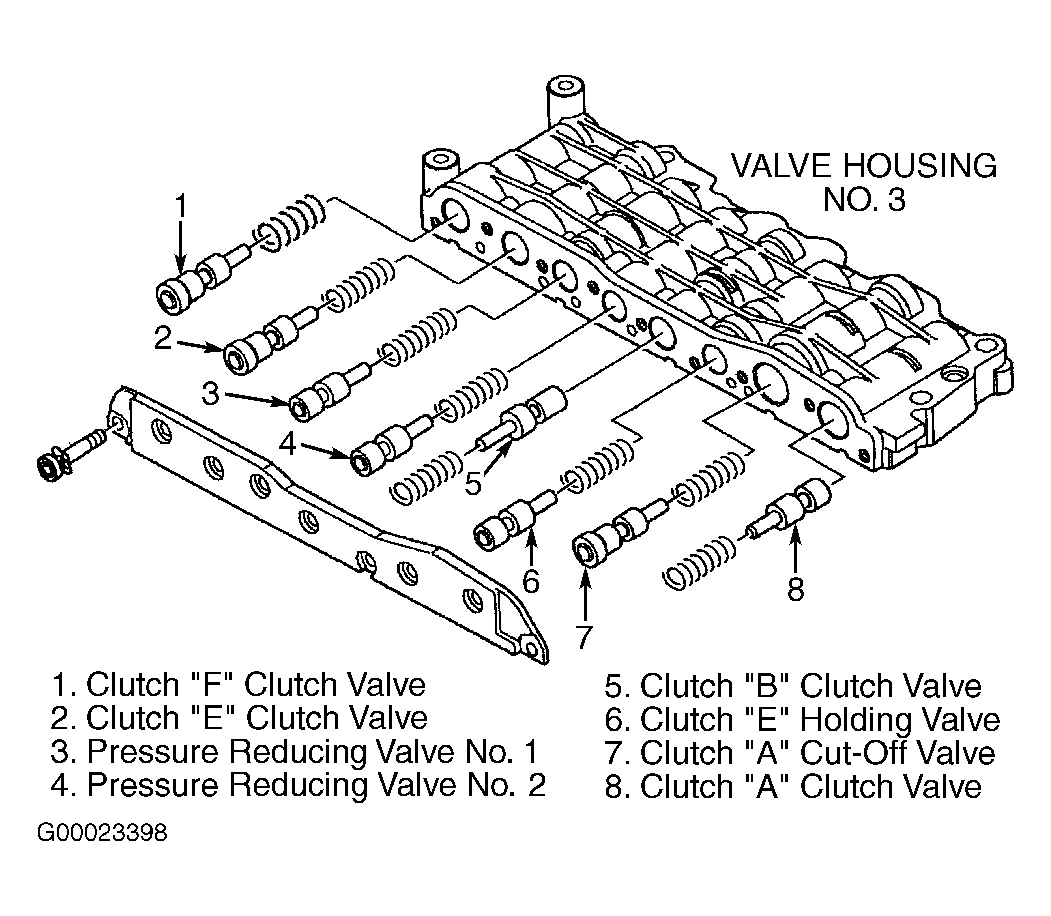

Fig 2: Exploded View Of Valve Housing No. 3

Courtesy of ZF GETRIEBE GMBH SAARBRUCKEN
