Temperature Control Button

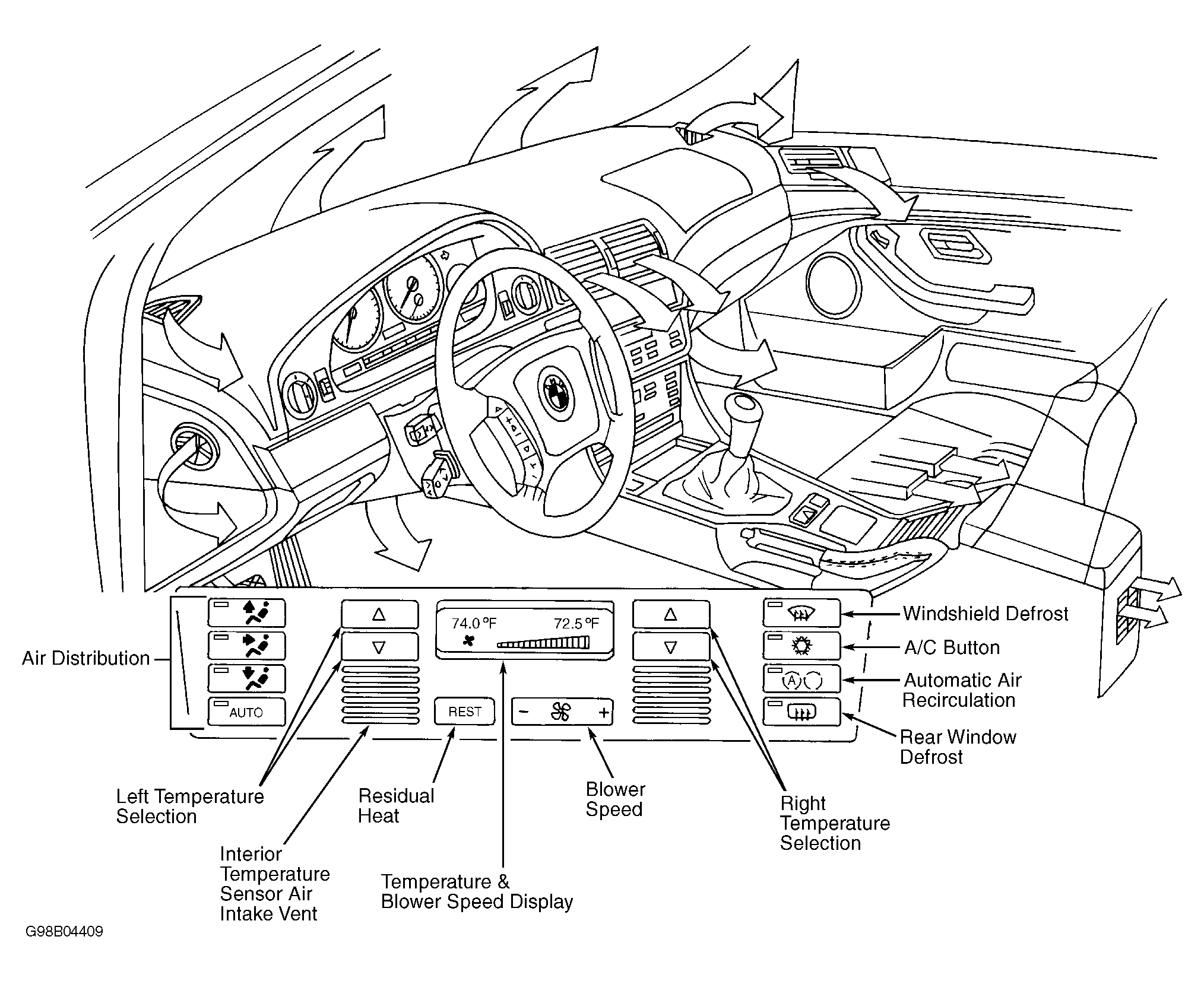

Temperature control buttons determine temperature of air entering driver-side or passenger-side compartments. See Figure . Pressing lower button will decrease air temperature. Pressing upper button will increase air temperature. Driver and front passenger can select individual temperature ranges.
