Removal & Installation

Open plug housing. Remove plug connection from fixture and disconnect. See Fig 1 .
Remove cable with rubber grommet from fixture on spring strut.

NOTE: Modified ABS pulse sensors are used as of 03/2000. They are secured with one screw only.

Release hexagon-socket head cap screw(s) (1). Pull cable out of fixture on spring strut. Withdraw ABS pulse generator from bore. See Fig 2 .
Clean bore for pulse sensor and grease with Staburags NBU 12/K lubricating grease or equivalent.
Installation is reverse of removal.
Tighten socket head cap screw(s) to specification. See TORQUE SPECIFICATIONS .

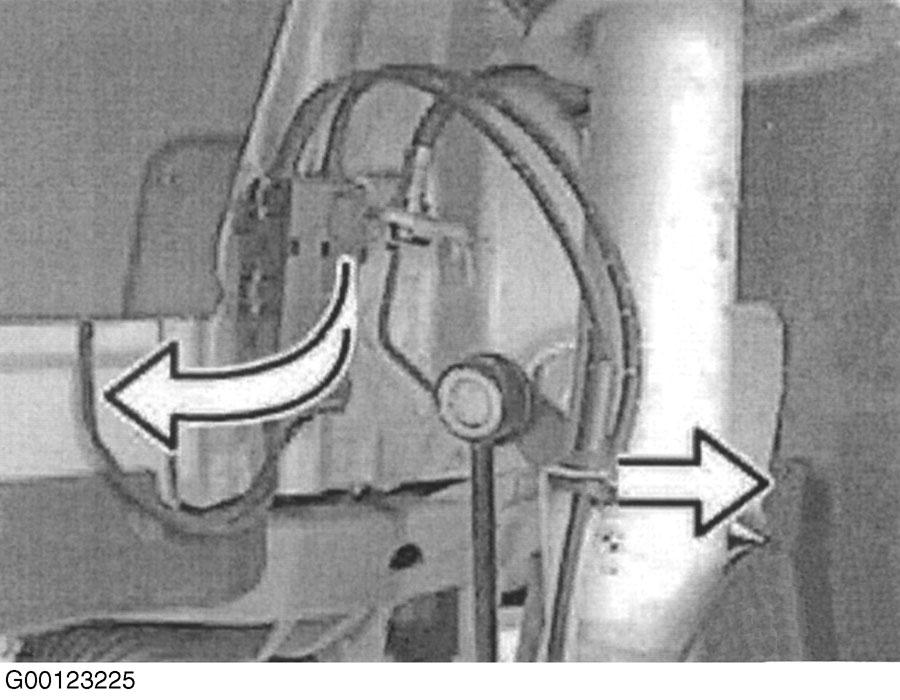

Fig 1: Removing Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

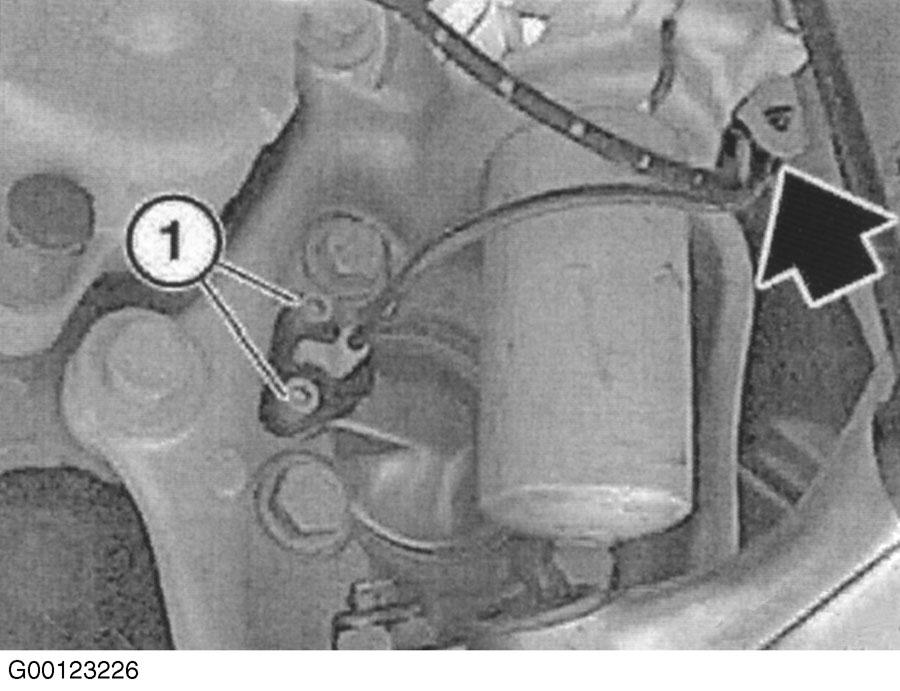

Fig 2: Locating Pulse Sensor Connections

Courtesy of BMW OF NORTH AMERICA, INC.
