Removal & Installation (V8)

Remove throttle body. See THROTTLE BODY . Disconnect intake air temperature sensor electrical connector. Press locking button and unclip temperature sensor from intake air manifold. To install, reverse removal procedure.

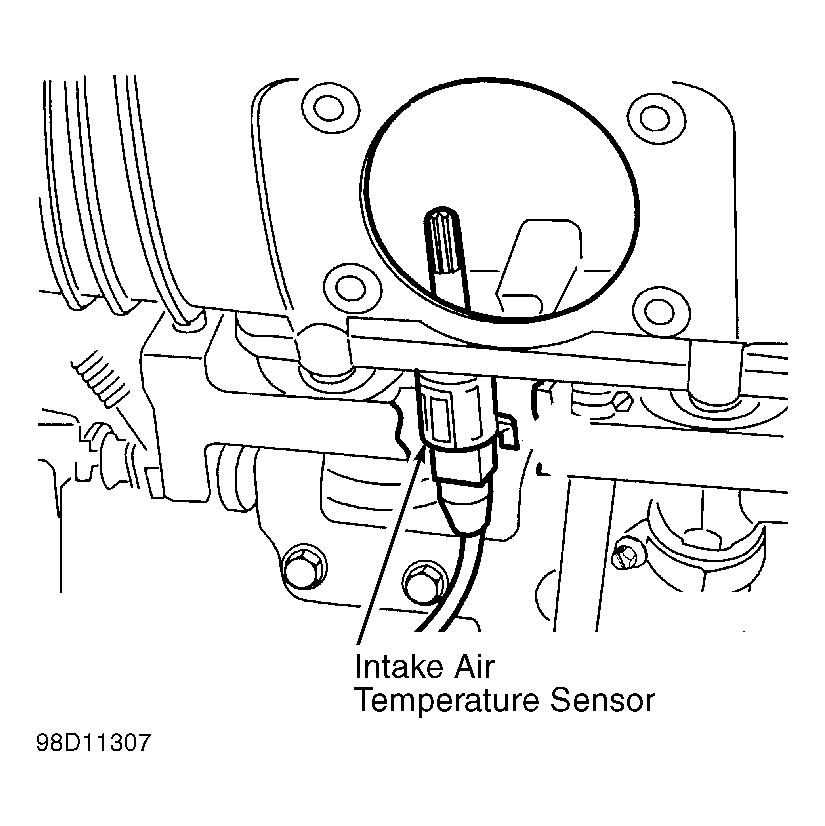

Fig 1: Removing Intake Air Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
