DTC Chart For Miscellaneous Codes (V12) - 1 Of 3

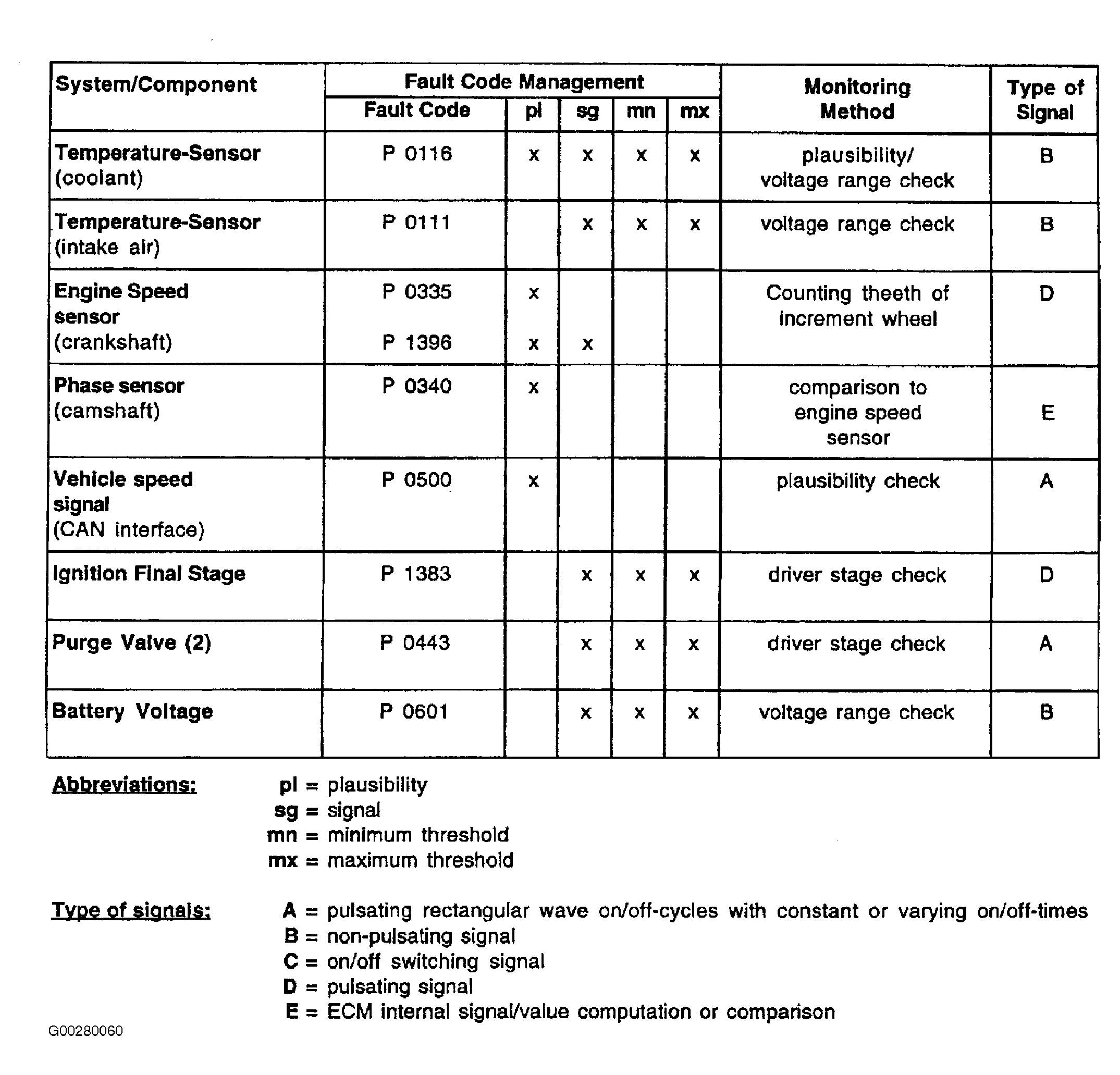

Fig 1: DTC Chart For Miscellaneous Codes (V12) - 1 Of 3

G00280060

Courtesy of BMW OF NORTH AMERICA, INC.
