Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
Auxiliary Fuse Box Left side of dash.

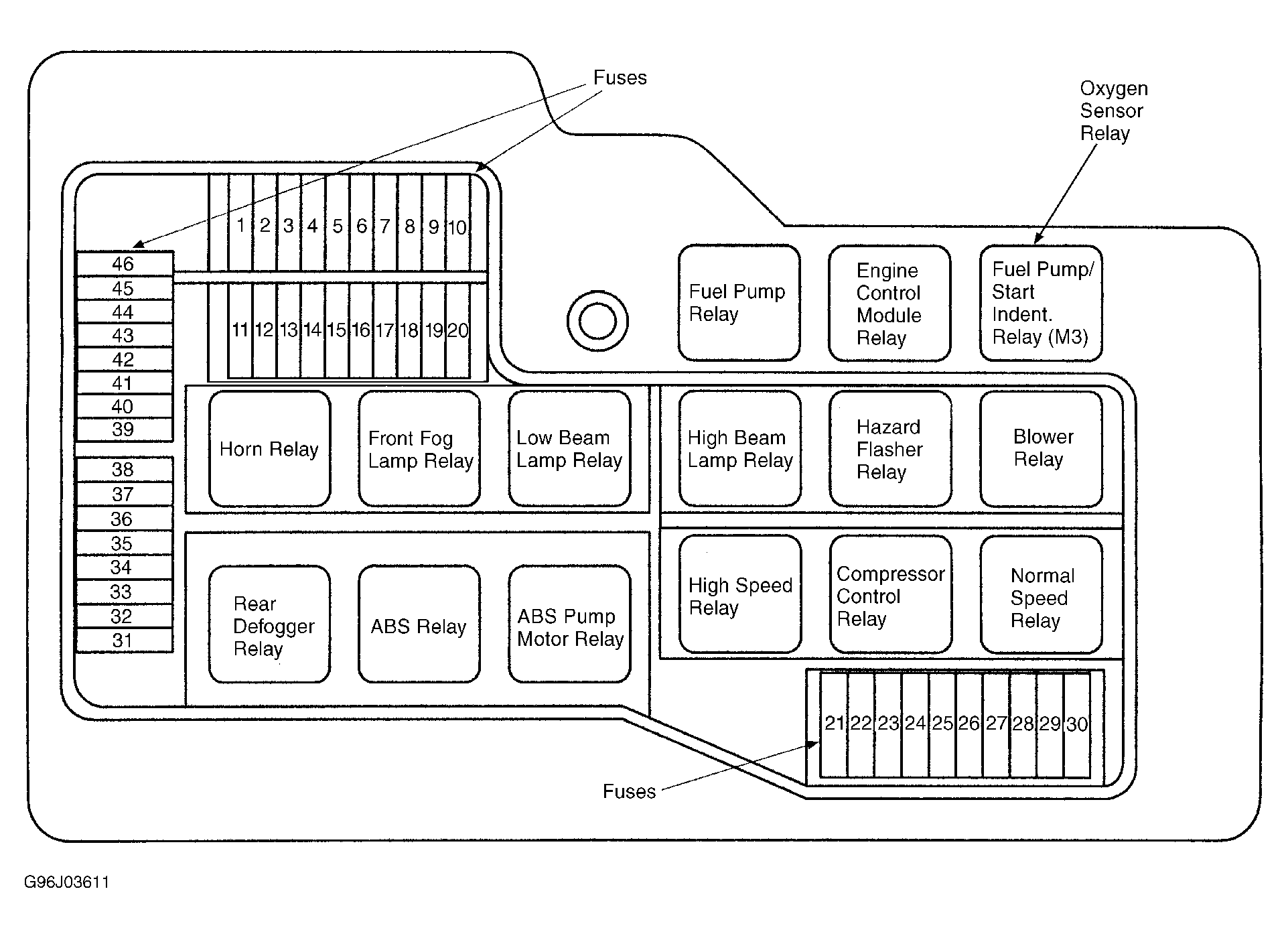

Front Power Distribution Box In left rear corner of engine compartment. See Figure .

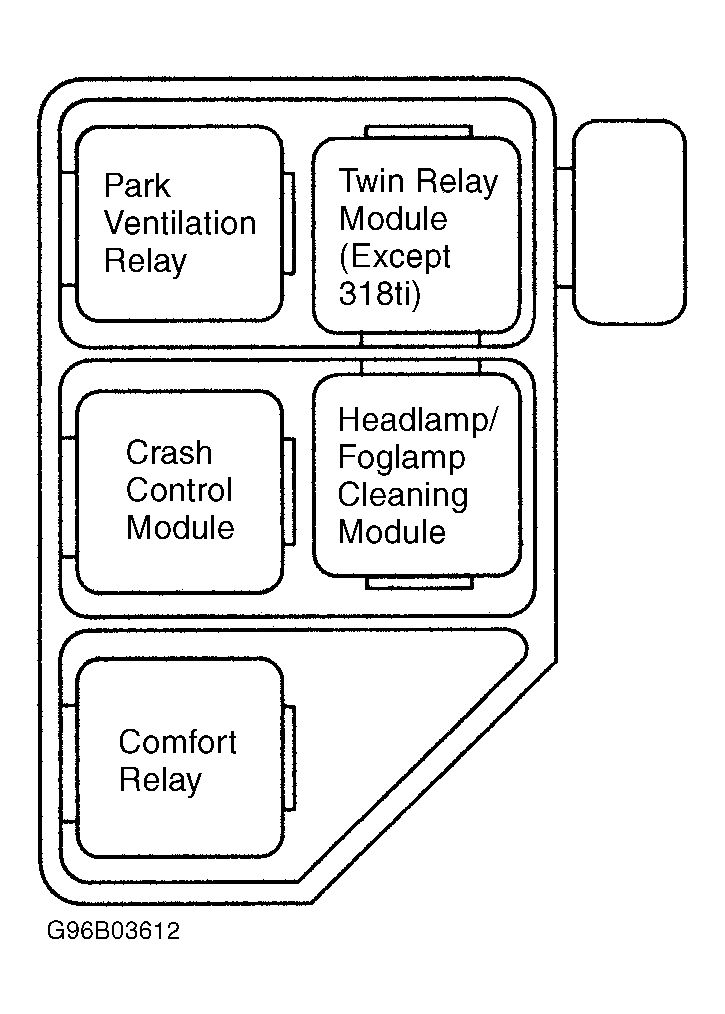

Relay Panel Under left side of dash. See Figure .

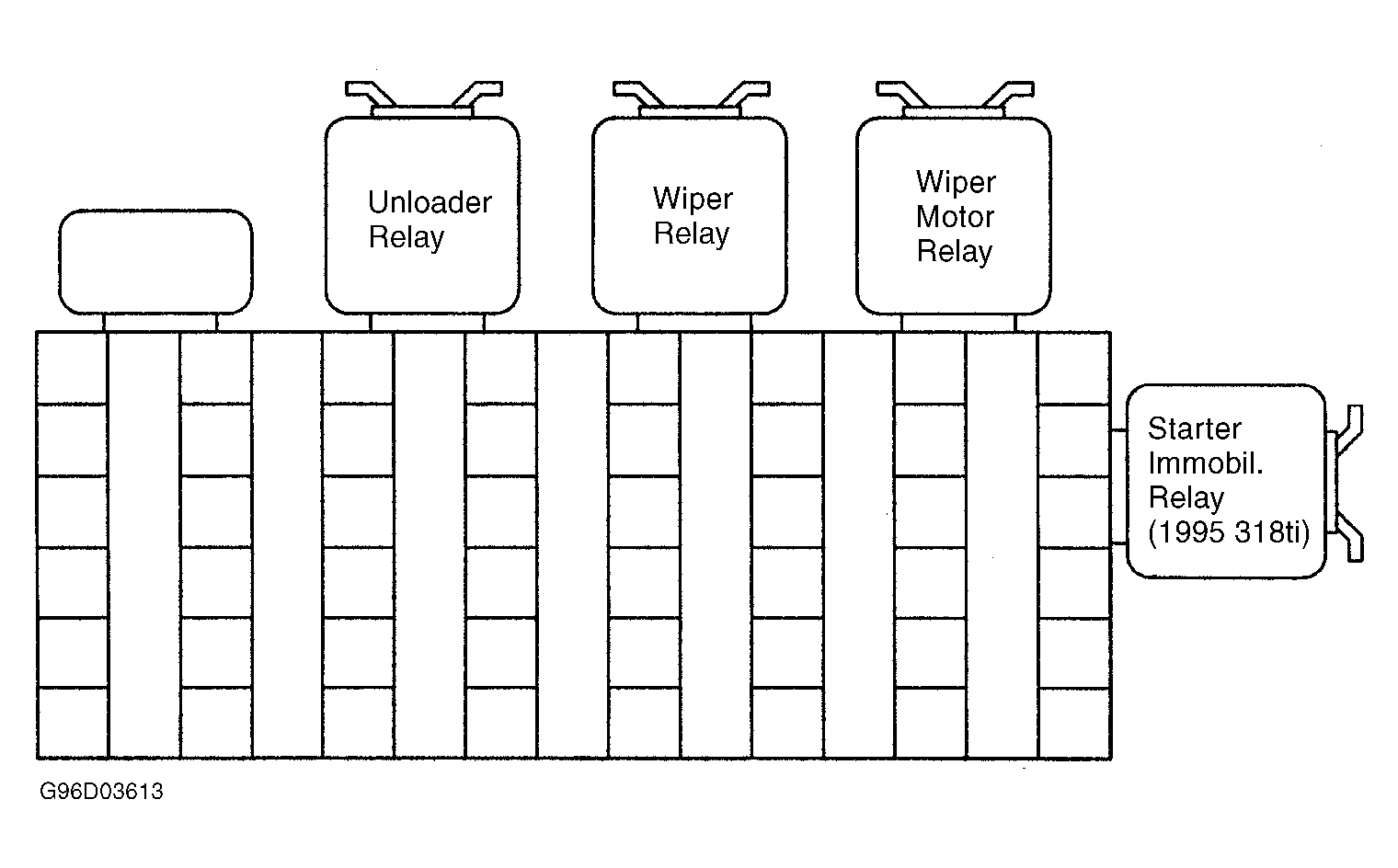

Splice Panel Under left side of dash. See Figure .
