IHKA E36 Air Distribution

Fig 1: Identifying IHKA E36 Air Distribution

All outlet flaps are operated by M-bus stepper motors, controlled by the control panel/module:

• Defrosting
  Fig 2: Identifying Defrosting Buttons


• Face vents
  Fig 3: Identifying Face Vents Buttons

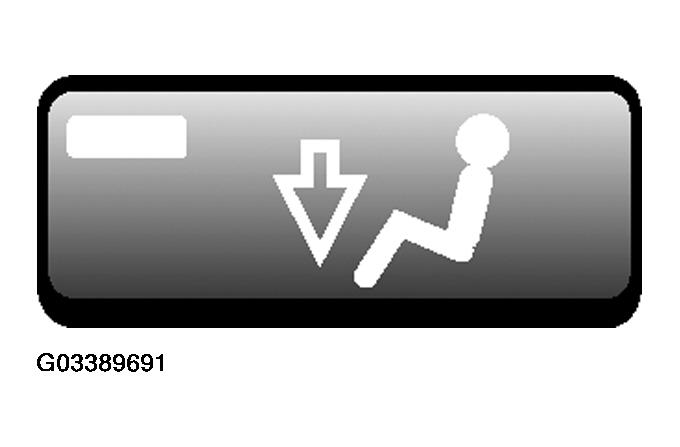

• Footwells
  Fig 4: Identifying Footwells Buttons
