| Camshaft Bearing Cap Bolts |
11 (15) |
| Camshaft Sprocket Bolts Splined Shaft-To-Intake Camshaft Bolts |
| Step 1 |
30 (40) |
| Step 2 |
60 Degrees |
| Clutch Drive Plate |
17 (23) |
| Connecting Rod Bolts |
| Step 1 |
15 (20) |
| Step 2 (Torque Angle) |
70 Degrees |
| Coolant Drain Plug (Crankcase) |
22 (30) |
| Cooling Fan Nut |
22 (30) |

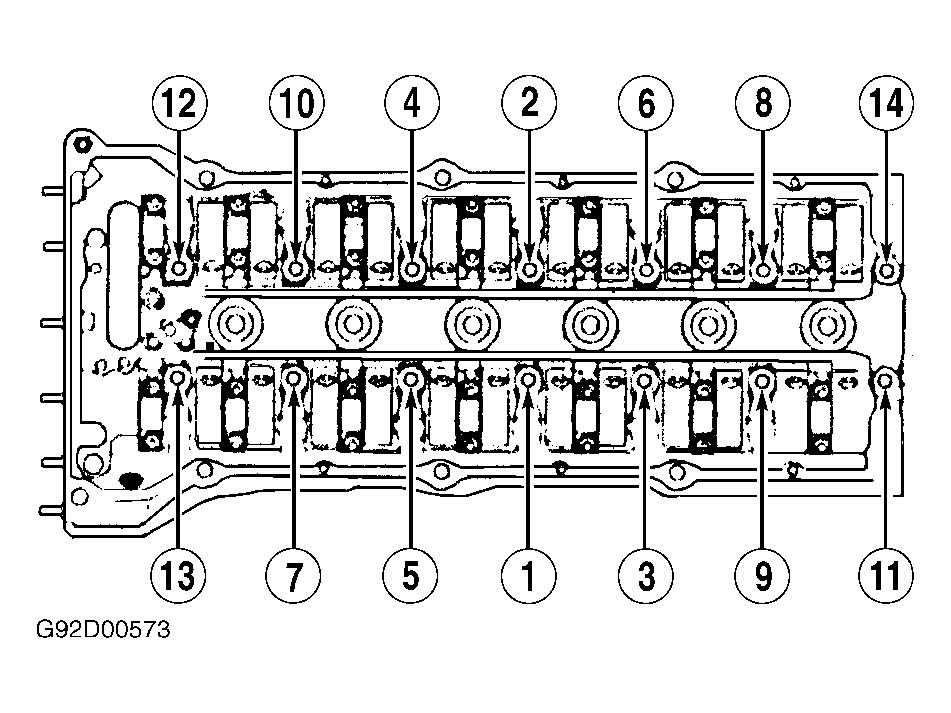

| Cylinder Head Bolts |
| Step 1 (Aluminum Block) |
24 (40) |
| Step 1 (Cast Iron Block) |
22 (30) |
| Step 2 (Torque Angle - All) |
90 Degrees |
| Step 3 (Torque Angle - All) |
90 Degrees |
| Exhaust Manifold Nuts |
15 (20) |
| Flywheel-To-Crankshaft Bolts (Loctite) |
83-96 (113-130) |
| Front/Rear Crankshaft End Cover Bolts (8 mm) |
16 (22) |
| Intake Camshaft Sprocket Splined Hub |
| Step 1 |
30 (40) |
| Step 2 |
60 Degrees |
| Intake Manifold Bolts |
11 (15) |
| Main Bearing Cap Bolts |
| Step 1 |
15-18 (20-24) |
| Step 2 (Torque Angle) |
50 Degrees |
| Aluminum Block |
70 Degrees |
| Cast Iron Block |
50 Degrees |
| Oil Filter Cover |
20-24 (27-33) |
| Oil Pan Cover Bolts (8 mm) |
15 (20) |
| Oil Pump Sprocket Nut |
18 (24) |
| Starter Bolts |
35-37 (47-50) |
| Suspension Bar-To-Cylinder Head |
15-18 (20-24) |
| Timing Chain Tensioner Piston Cylinder |
48-55 (65-75) |
| Timing Chain Tensioner Plug |
28-31 (38-42) |
| Upper/Lower Timing Case Cover Bolts (8 mm) |
16 (22) |
| Vibration Damper Bolts |
17 (23) |
| Vibration Damper Hub Bolt |
317 (440) |
| VANOS Banjo Bolt |
24 (33) |
| VANOS Oil Line-To-Filter Nut |
37 (50) |
| Water Pump Bolts (8 mm) |
16 (22) |
| INCH Lbs. (N.m) |
| Cylinder Head Bolts (Small) |
86 (10) |
| Cylinder Head Cover Bolts |
86 (10) |
| Front/Rear Crankshaft End Cover Bolts (6 mm) |
79 (9) |
| Fuel Injectors-To-Intake Manifold |
86 (10) |
| Oil Pan Cover Bolts (6 mm) |
79 (9) |
| Oil Pump Cover Bolts |
79 (9) |
| Sprocket-To-Camshaft Flange Bolt |
| Step 1 |
48 |
| Step 2 |
|
| Thermostat Housing Bolts |
79 (9) |
| Upper/Lower Timing Case Cover Bolts (6 mm) |
79-96 (9-11) |
| Water Pump Bolts (6 mm) |
79 (9) |
| Water Pump Pulley Bolts |
79 (9) |
