Engine Controls - Pin Voltage Charts V12 1991-94: Introduction

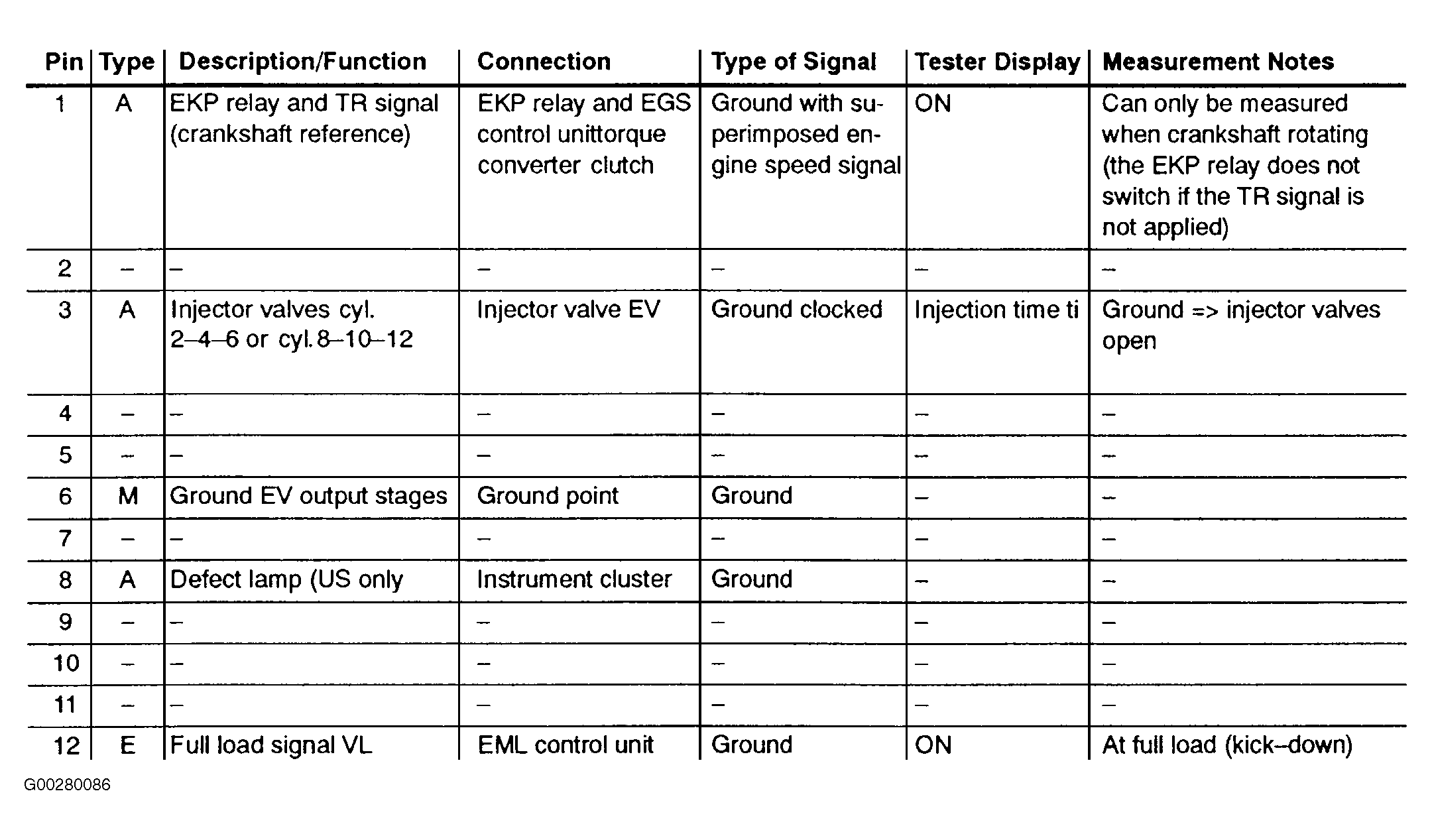

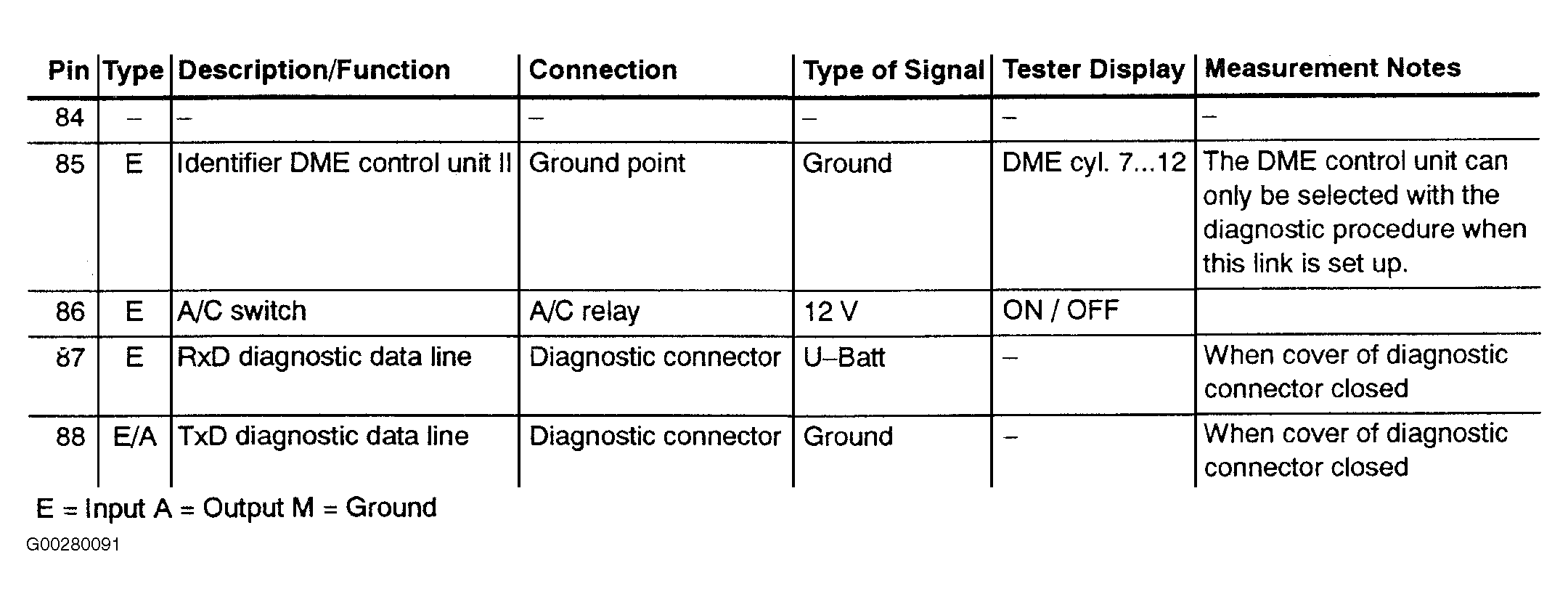

Pin voltage charts are supplied to reduce diagnostic time. Checking pin voltages at the DME/Motronic control unit determines whether it is receiving and transmitting proper voltage signals. Charts may also help determine if control unit wiring harness has a short or open circuit. See Figure-Figure .
