SLACK TUBE MANOMETER TEST TOOL

TECHNICAL SERVICE BULLETIN

Reference Number(s): 04 08 98, Date of Issue: September, 1998

BMW:	All with M42 (from 1/94), M44, M52, S52, M60, M62 and M73 engines
GROUP:	04 - Tools and Equipment

SUBJECT

Slack Tube Manometer Test Tool

SITUATION

Distribution of the following tool will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC. Refer to Parts Information bulletin 01 01 95 for tool warranty details.

Slack Tube Manometer P/N 99 00 0 001 410

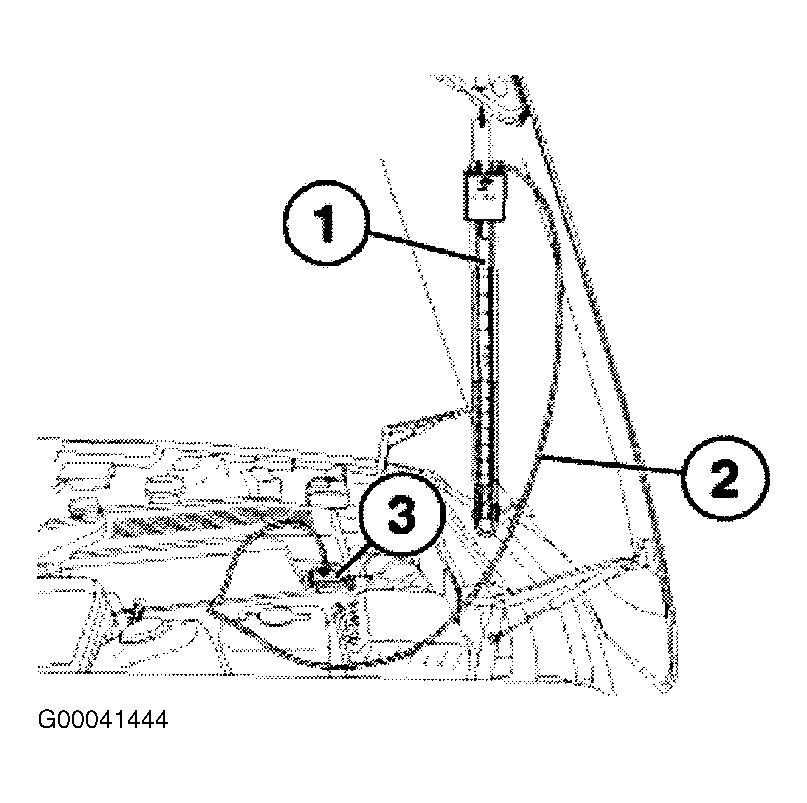

Fig 1: Slack Tube Manometer Assembly

Used to troubleshoot crankcase ventilation valves for possible malfunctions on the above engines. Refer to SI B 11 03 08 for information regarding the operation of the slack tube manometer tool. Instructions are included with the tool for proper set up of the tools indicator fluid.
