84 11 530 Removing and installing / replacing interface for D-Network car phone
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Remove and install center console, refer to 51 16 200 REMOVING AND INSTALLING STORAGE TRAY .

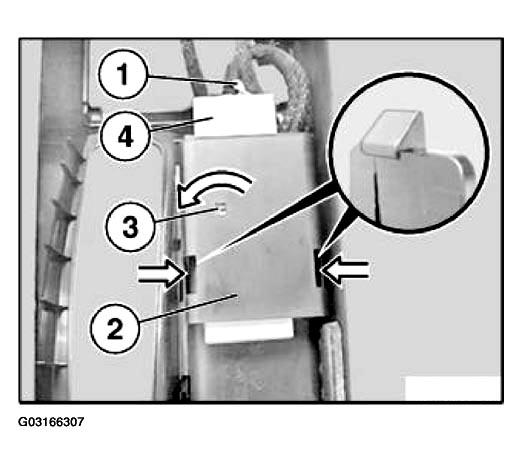

Unfasten plug connection (1). Unclip bracket (2). Remove interface (4).
Installation:
- Ensure guide (3) is correctly seated.
