84 11 510 Removing and installing/replacing eject box (fixed mounting)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Operation is described in: 51 16 200 REMOVING AND INSTALLING STORAGE TRAY .

Remove insert in storage tray (1) in direction of arrow from storage tray (2).

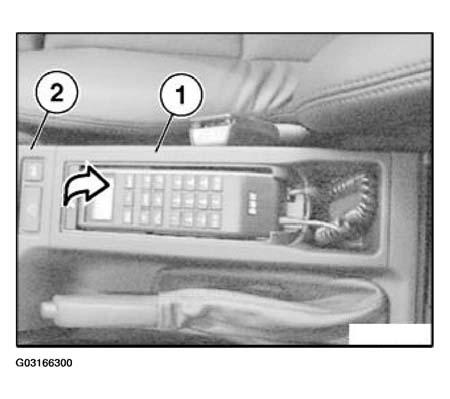

Fig 1: Removing Insert In Storage Tray In Direction Of Arrow From Storage Tray
G03166300Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

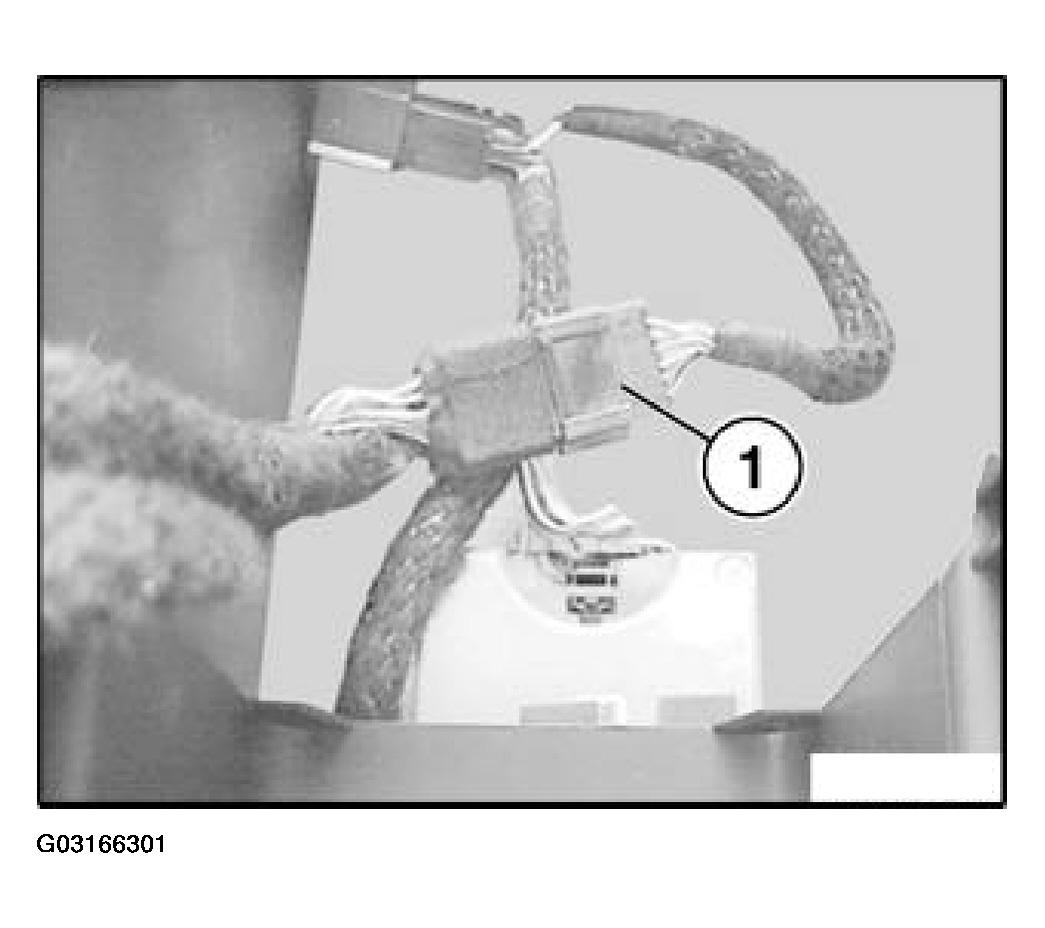

Fig 2: Disconnecting Plug Connection
G03166301Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retainer (1) in direction of arrow.

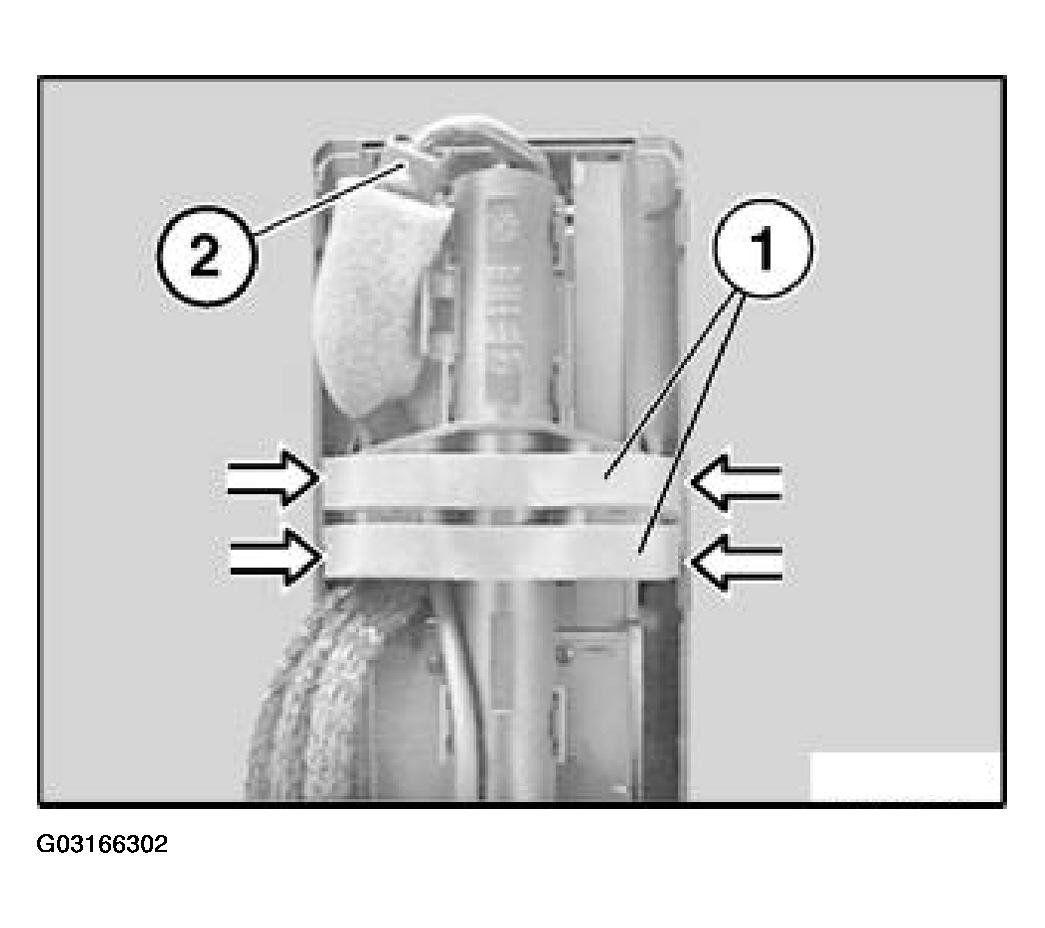

Fig 3: Unlocking Retainer In Direction Of Arrow
G03166302Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (2).

Unhook cable duct (1) in direction of arrow and remove eject box (2).

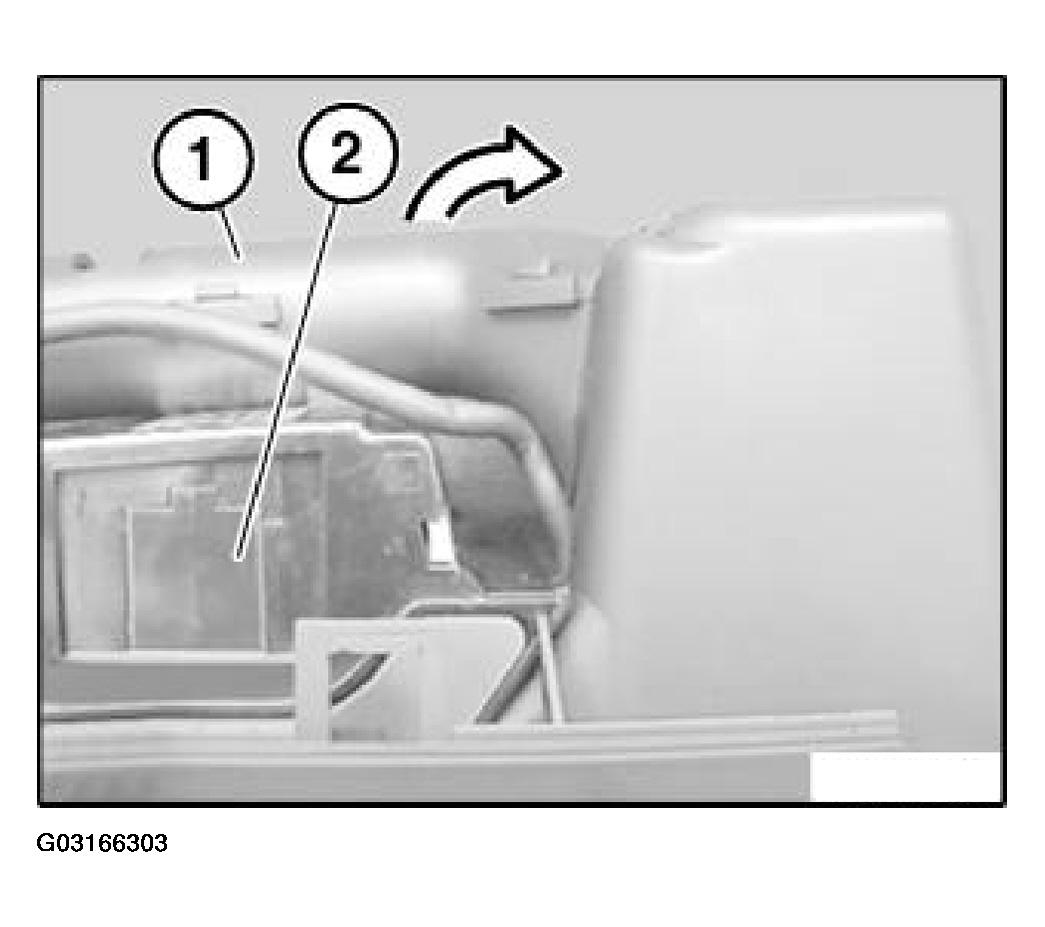

Fig 4: Unhooking Cable Duct (1) In Direction Of Arrow And Remove Eject Box (2)
G03166303Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

  1. Ensure correct cable routing.

Replacement:

  1. Disconnect plug connection (1).

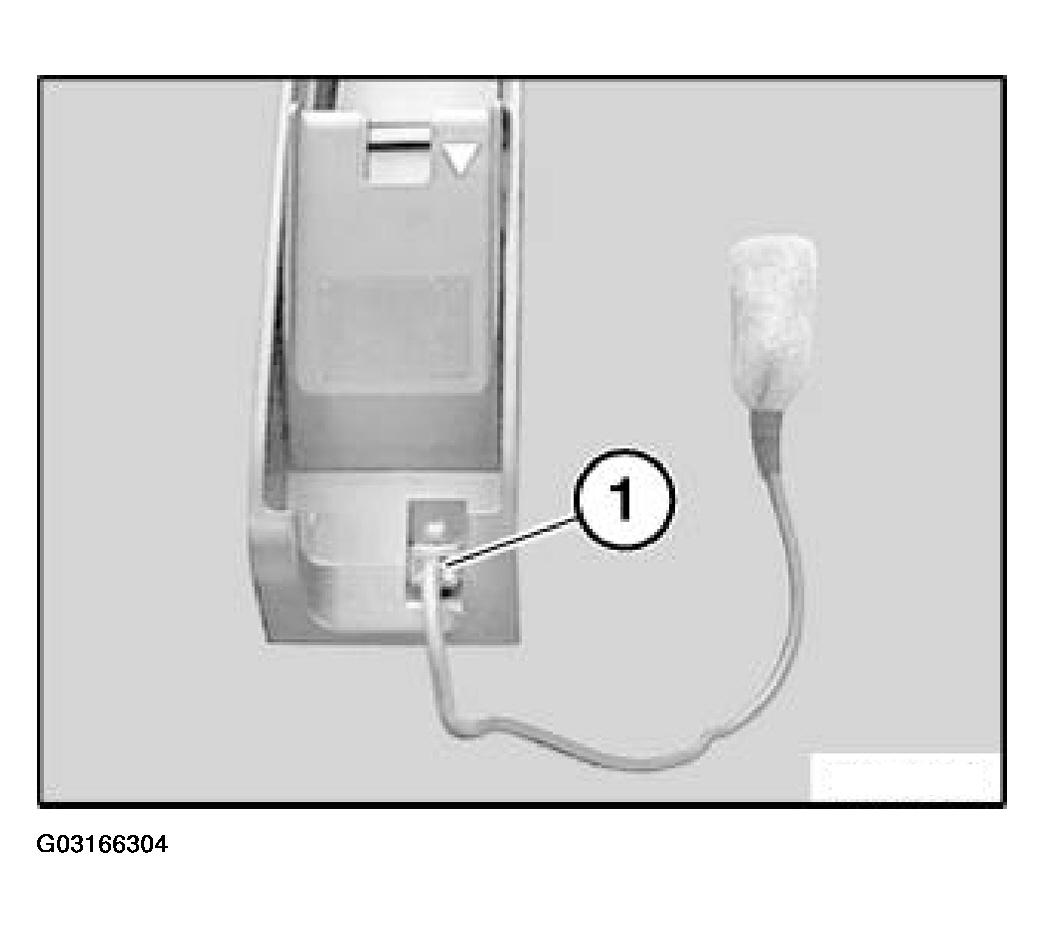

Fig 5: Disconnecting Plug Connection
G03166304Courtesy of BMW OF NORTH AMERICA, INC.
