Pin Voltage Charts

For pin voltage information on 3-series, see Fig 1 -Fig 3 . For pin voltage information on 5-series, see Fig 4 -Fig 6 .

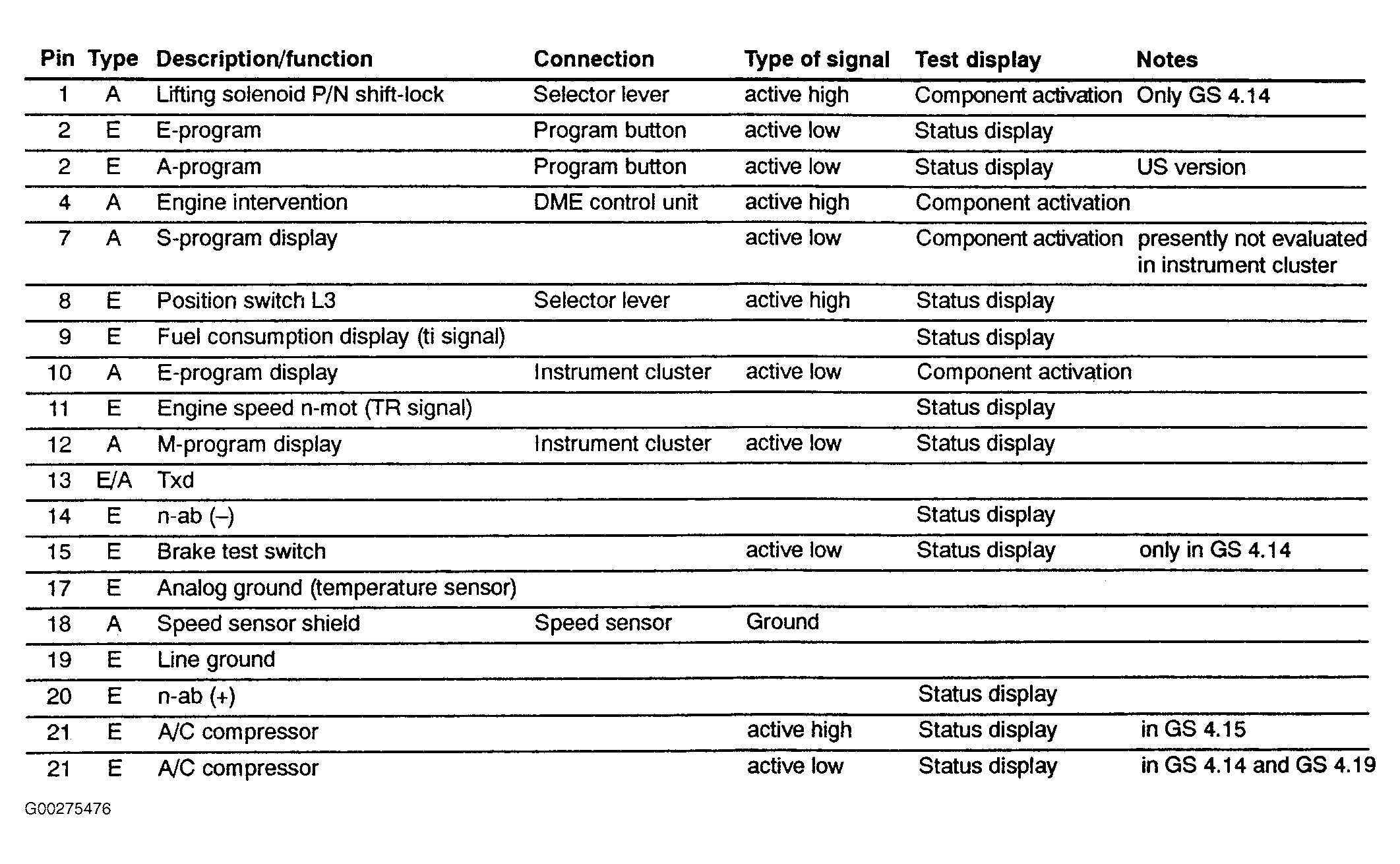

Fig 1: Electronic Transmission Control Pin Voltage Chart - (3-Series E36 - 1 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

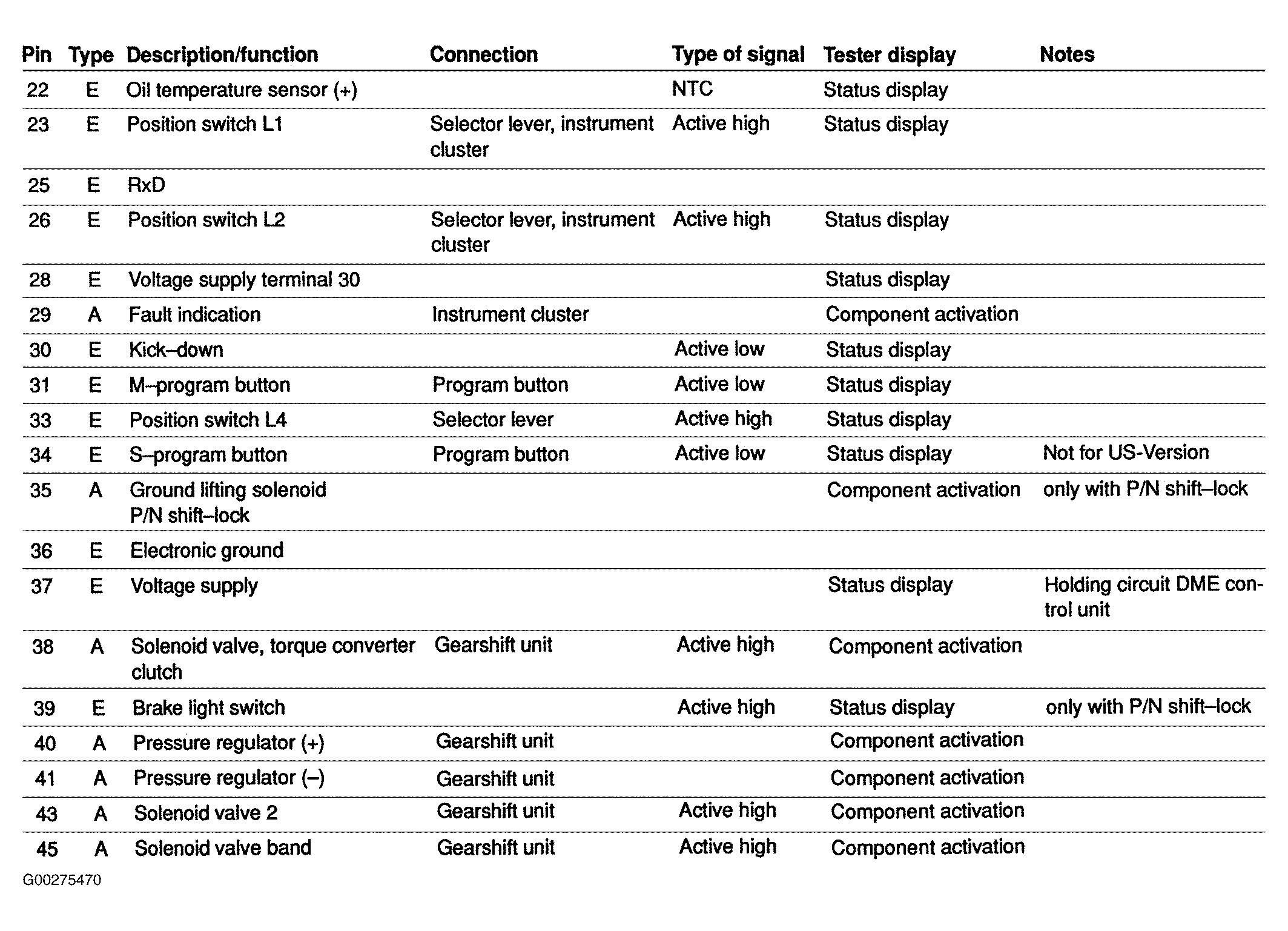

Fig 2: Electronic Transmission Control Pin Voltage Chart - (3-Series E36 - 2 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

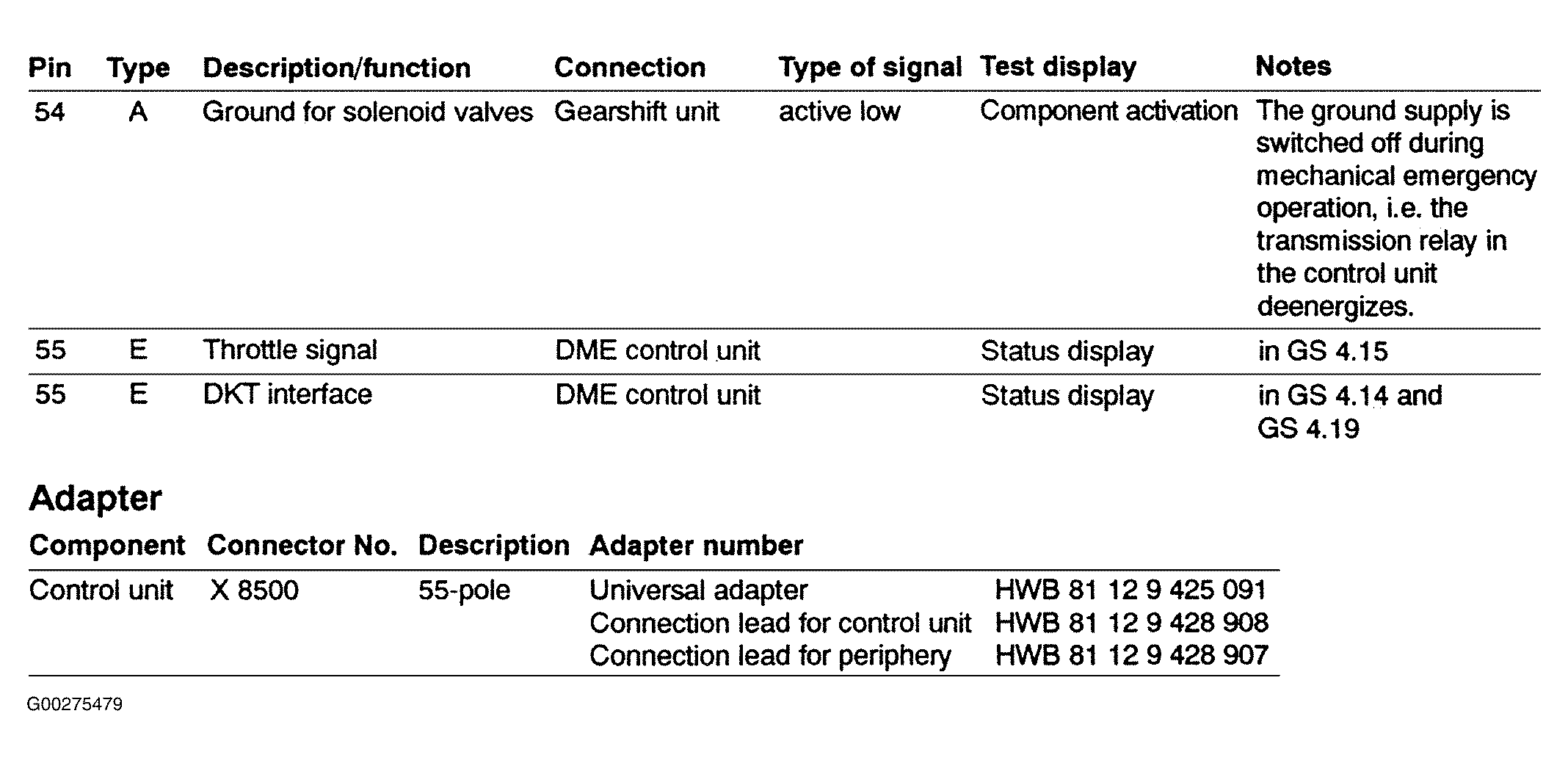

Fig 3: Electronic Transmission Control Pin Voltage Chart - (3-Series E36 - 3 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

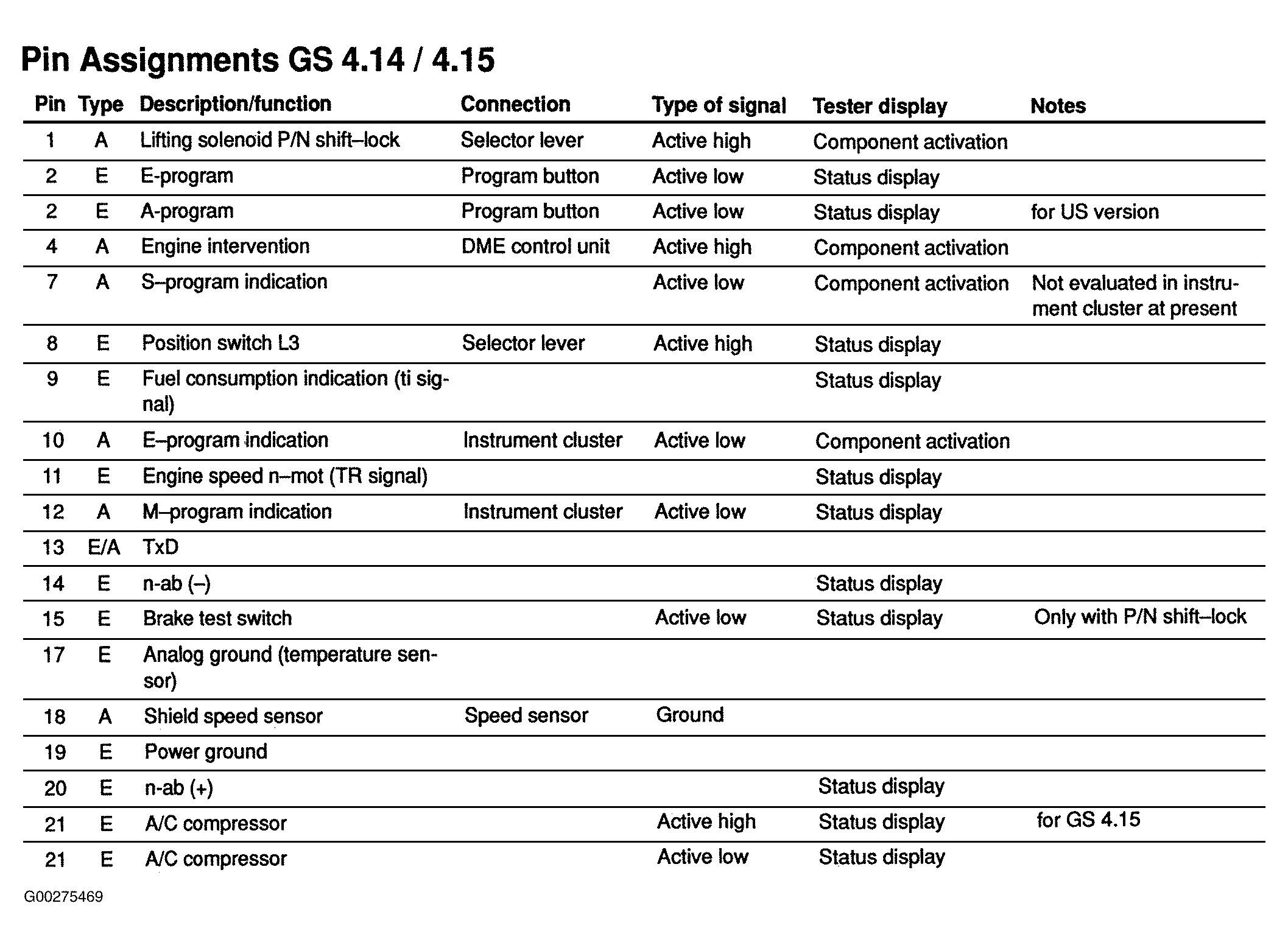

Fig 4: Electronic Transmission Control Pin Voltage Chart - (5-Series E34 - 1 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

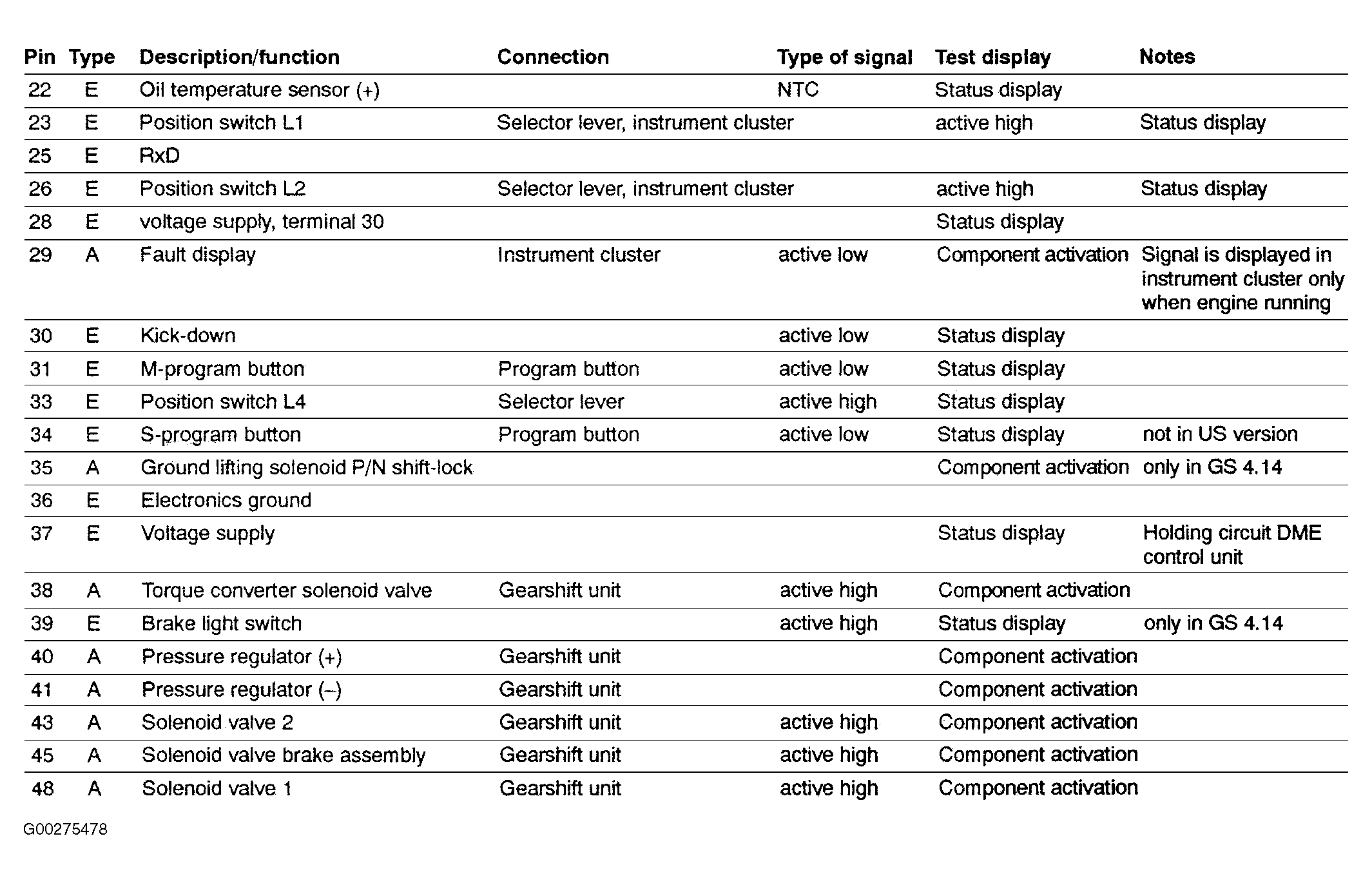

Fig 5: Electronic Transmission Control Pin Voltage Chart - (5-Series E34 - 2 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

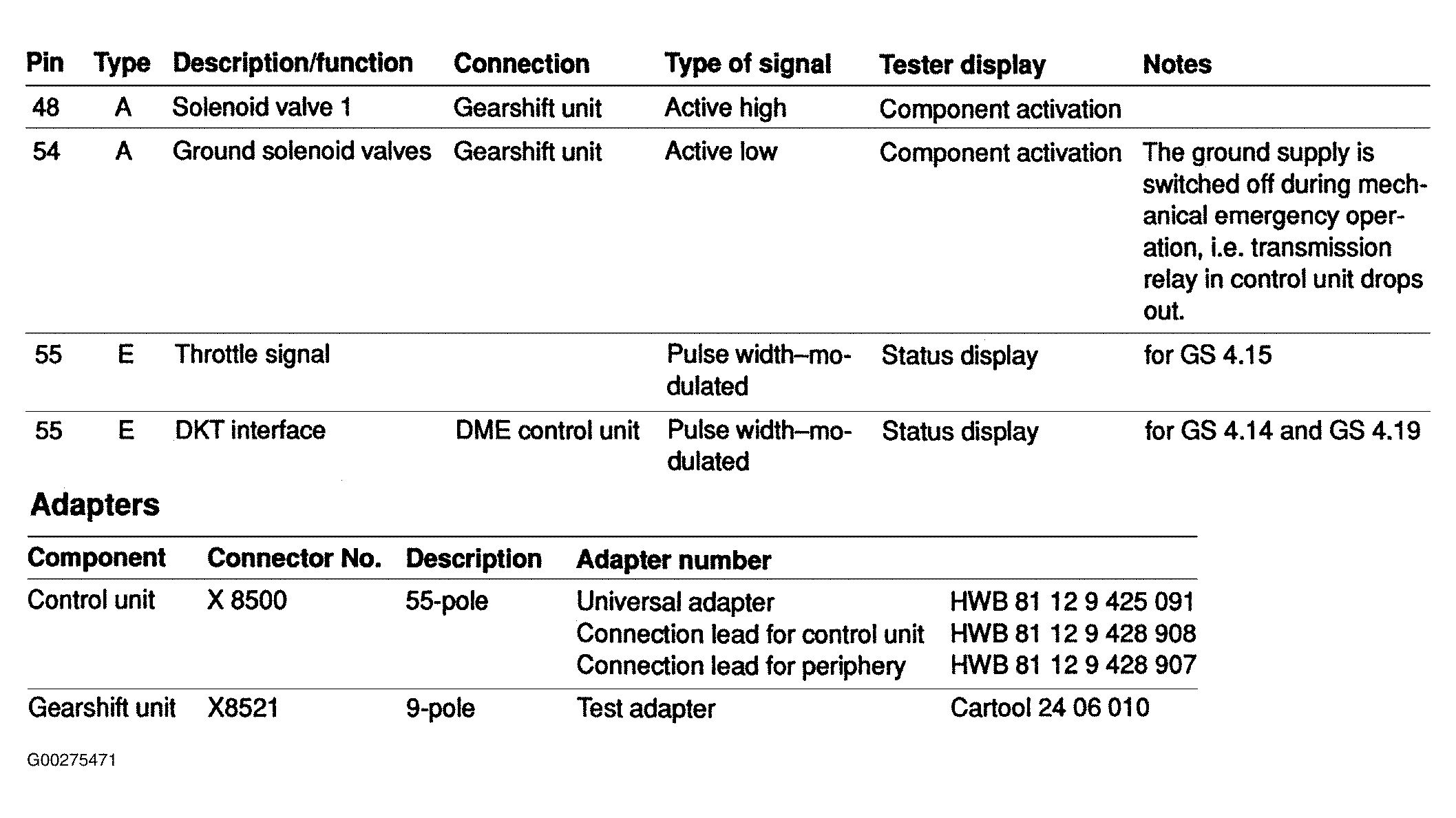

Fig 6: Electronic Transmission Control Pin Voltage Chart - (5-Series E34 - 3 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.
