65 90 510 Removing and installing/replacing navigation computer with CD-drive

WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

65 5 400

NOTE: Japanese national variant only: When the navigation computer is being pulled out, the computer's connectors may touch the computer holder. If necessary, remove navigation computer holder and unlock and disconnect plug connections on navigation computer.

Touring:

Remove flap in luggage compartment trim panel on left. See 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN TRUNK TRIM PANEL, LEFT OR RIGHT (TOURING)

Release navigation computer (1) with special tool 65 5 400 (2) and pull out.

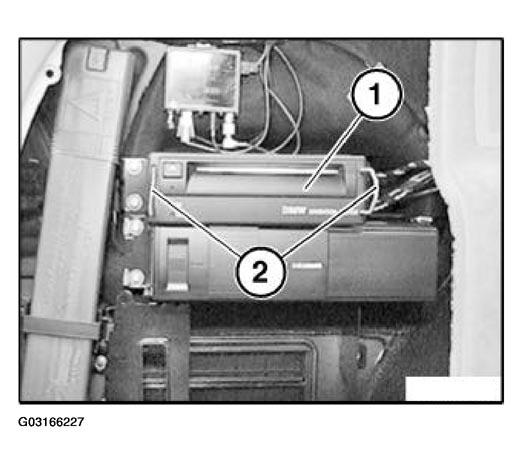

Fig 1: Releasing Navigation Computer With Special Tool

G03166227

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections behind and disconnect.

Saloon, Coupe:

Remove luggage compartment wheel arch trim on left. See 51 47 151 REMOVING AND INSTALLING / REPLACING LEFT TRUNK WHEEL HOUSING TRIM (TOURING)

Release navigation computer (1) with special tool 65 5 400 (2) and pull out.

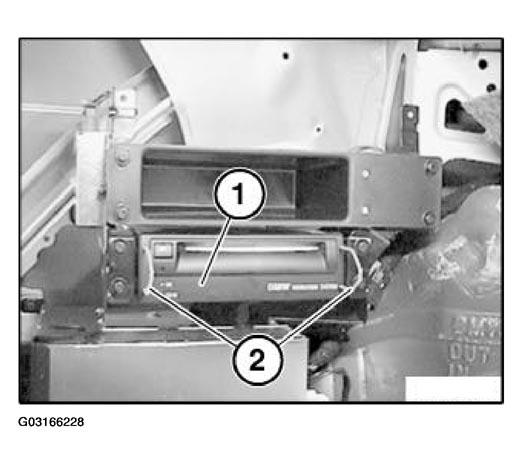

Fig 2: Identifying Navigation Computer And Special Tool

G03166228

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections behind and disconnect.

Convertible:

Release navigation computer (1) with special tool 65 5 400 (2) and pull out.

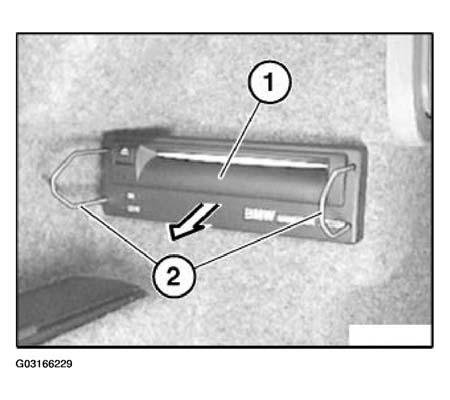

Fig 3: Releasing Navigation Computer With Special Tool

G03166229

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections behind and disconnect.

Compact:

Remove flap in luggage compartment panel on left. See 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN TRUNK TRIM PANEL, LEFT OR RIGHT (TOURING)

Release navigation computer (1) with special tool 65 5 400 (2) and pull out.

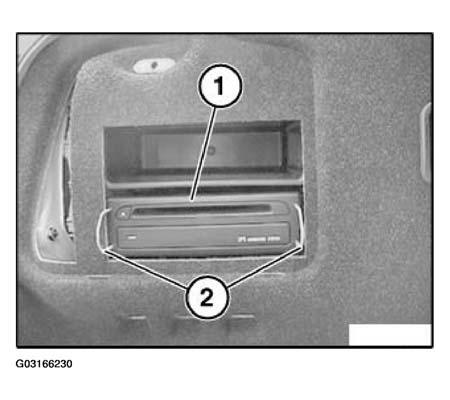

Fig 4: Releasing Navigation Computer With Special Tool

G03166230

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections behind and disconnect.

Replacement:

Observe instruction for Replacing codable/programmable control units, refer to 61 35...NOTE ON REPLACING CODABLE/PROGRAMMABLE CONTROL UNITS .
