61 13... Antenna elbow plug on radio receiver

WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

Cut off faulty antenna angle plug directly after strain relief.

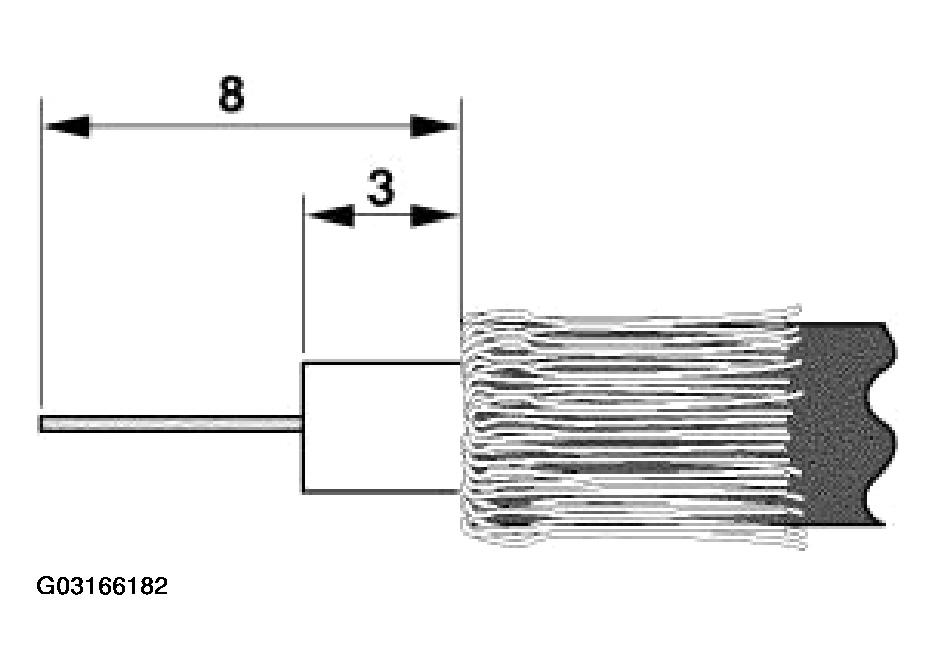

Carefully and with precision, strip insulation from antenna cable as illustrated (lengths given in mm).

Fig 1: Striping Insulation From Antenna Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Brush shield (copper braid) towards rear.

IMPORTANT: There must be no more copper wire protruding in the direction of the inner conductor on the inner conductor insulation (risk of short circuits).

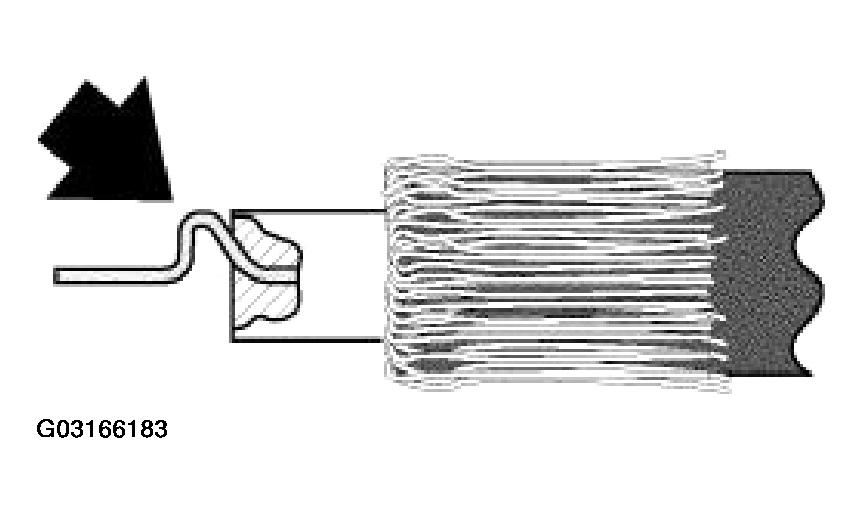

Create a loop on inner conductor.

Fig 2: Creating Loop On Inner Conductor

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Cover soldering area extensively in center console all round radio aperture. Avoid blobs of melted solder in inside area.

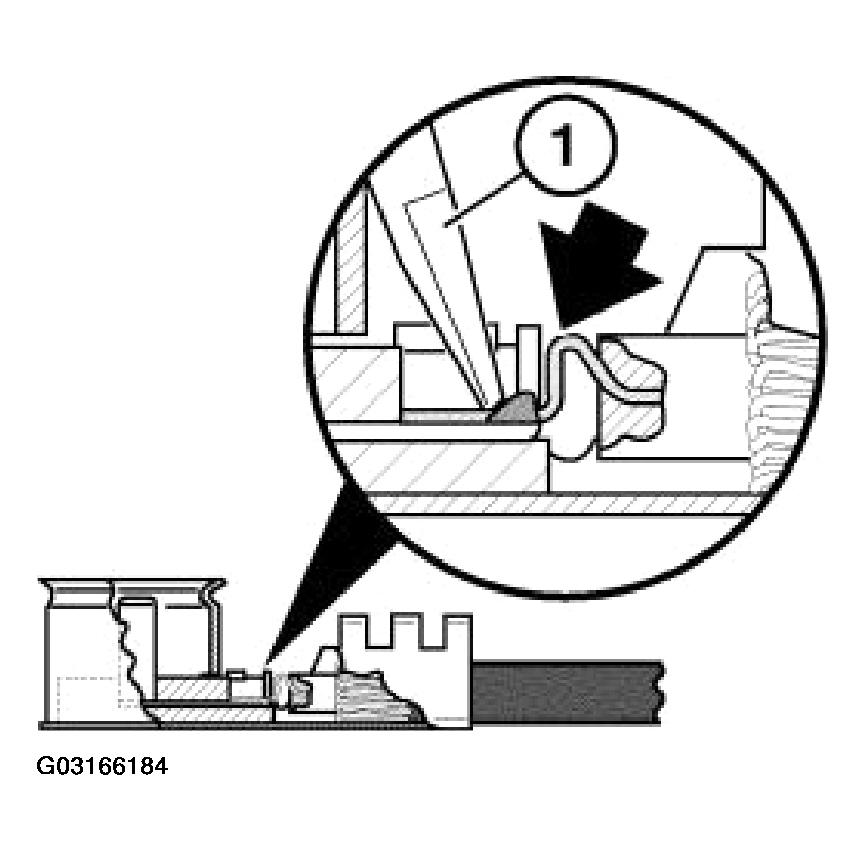

Tin-plate center connection on antenna angle plug and stripped inner conductor.

Solder inner conductor on center connection with a small soldering iron (max. 50 watts) and matching soldering tip (1).

Gently push insulation forward to soldering point and pay attention to correct position of loop.

NOTE: The loop must not under any circumstances come into contact with the metal parts of the antenna plug.

Fig 3: Pushing Insulation Forward To Soldering Point

Courtesy of BMW OF NORTH AMERICA, INC.

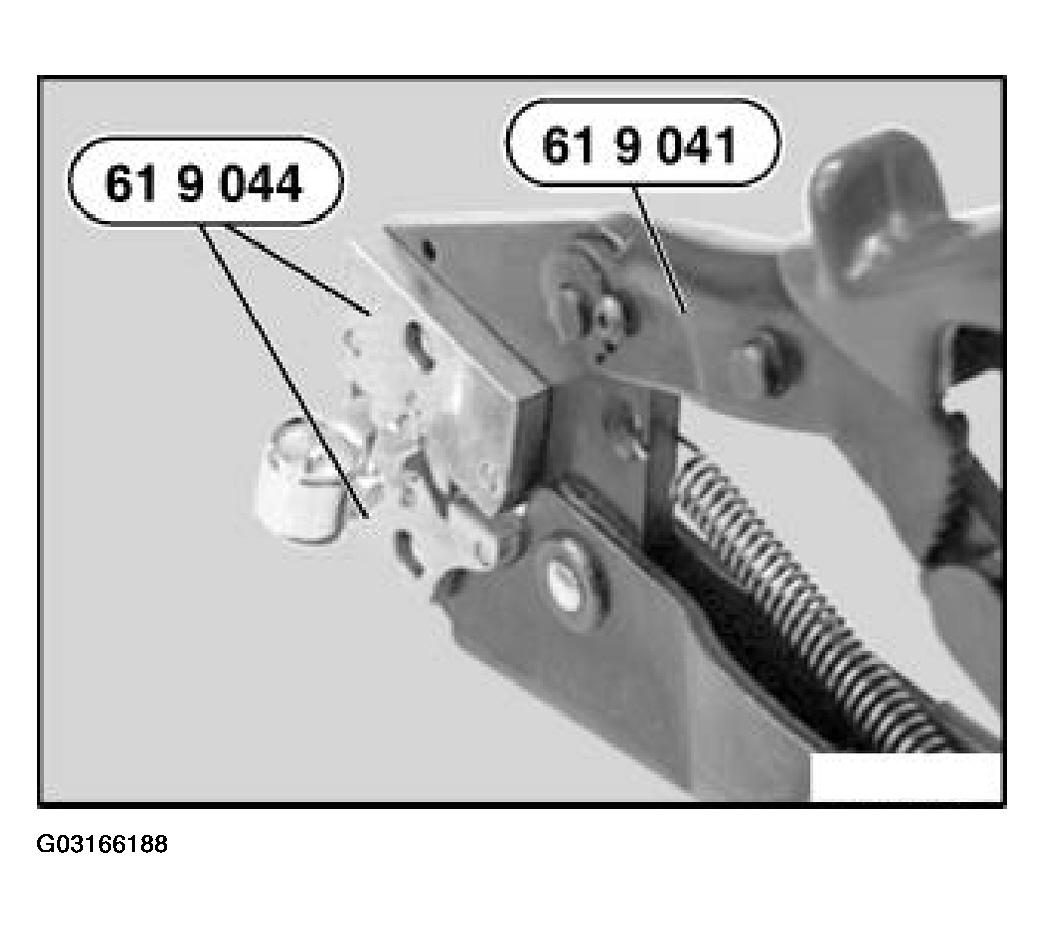

Special tool 61 9 041 (hand pliers) in conjunction with special tool 61 9 044 (matrix) is used to crimp antenna angle plug.

Fig 4: Identifying Special Tools 61 9 041 And 61 9 044

Courtesy of BMW OF NORTH AMERICA, INC.

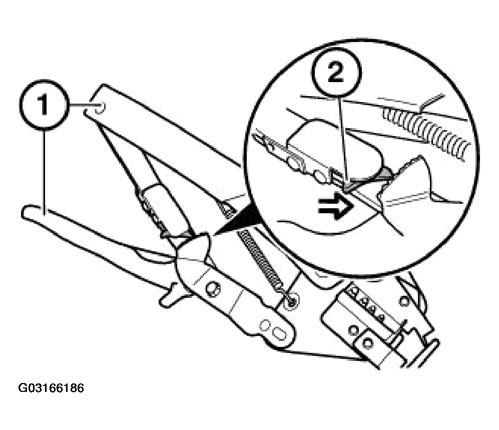

Unlock special tool 61 9 041:

Squeeze grips (1) lightly and push unlocking lever (2) in direction of arrow or compress handles as far as they will go, tool unlocks automatically.

Fig 5: Squeezing Grips Lightly And Pushing Unlocking Lever

Courtesy of BMW OF NORTH AMERICA, INC.

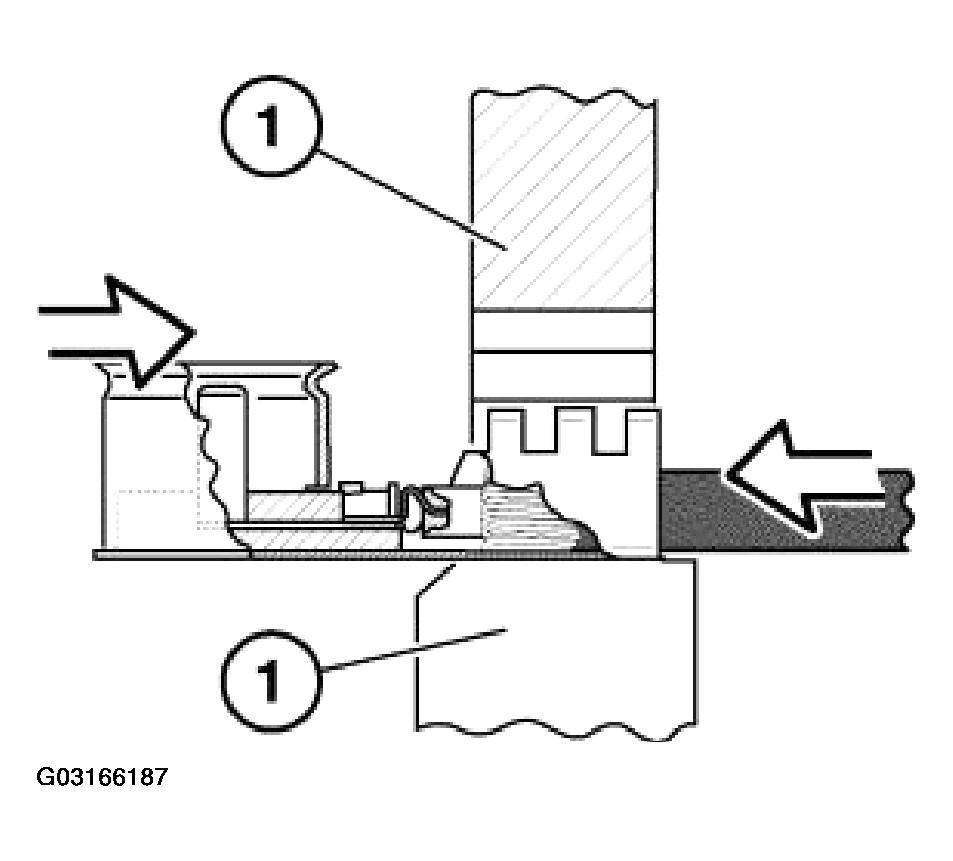

Place antenna angle plug with cable guide and strain relief in matrix (1).

Fig 6: Placing Antenna Angle Plug With Cable Guide And Strain Relief In Matrix

Courtesy of BMW OF NORTH AMERICA, INC.

Compress special tool 61 9 041 as far as it will go.

Special tool 61 9 041 unlocks automatically.

Remove antenna angle plug with antenna cable from special tool 61 9 044.

Fig 7: Removing Antenna Angle Plug With Antenna Cable From Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
