Wiring Diagrams

NOTE: For additional starting and charging system wiring diagrams, see appropriate system wiring diagram in WIRING DIAGRAMS.

Fig 1: Starting Circuit (750iL)

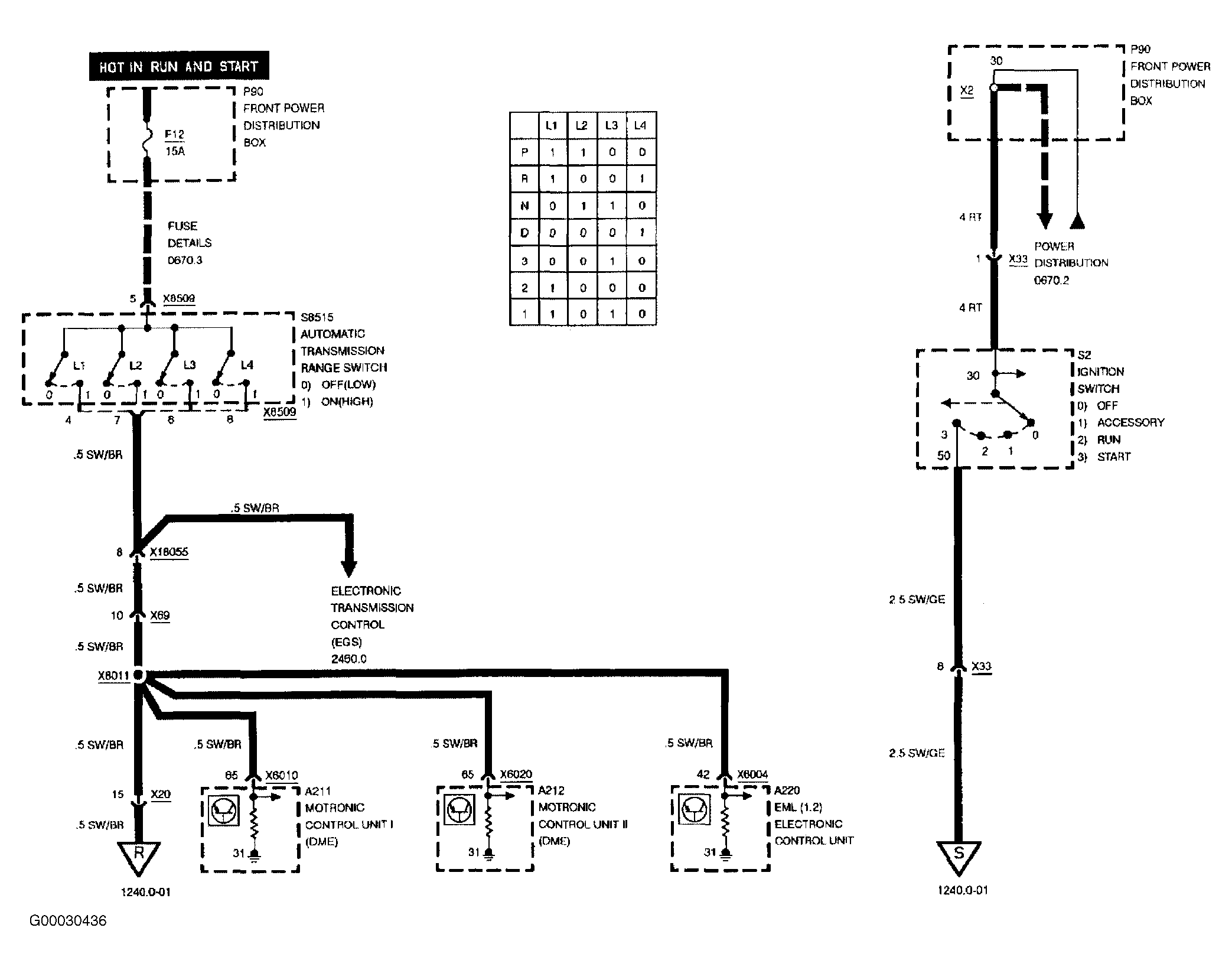

Fig 2: Starting Circuit - 1991 850Ci (1 Of 2)

G00030436

Fig 3: Starting Circuit - 1991 850Ci (2 Of 2)

G00030436

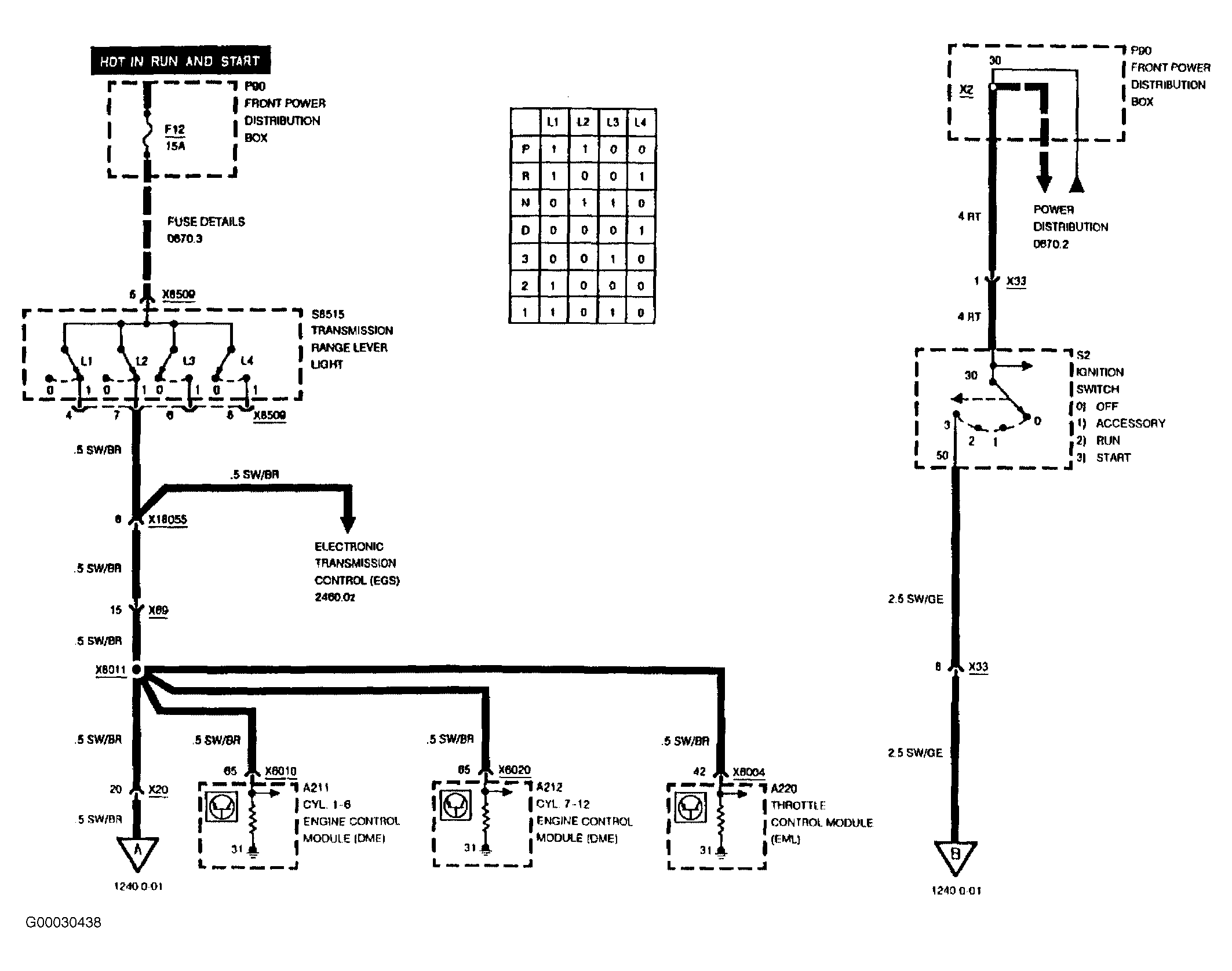

Fig 4: Starting Circuit - 1992-93 850Ci (1 Of 2)

G00030438

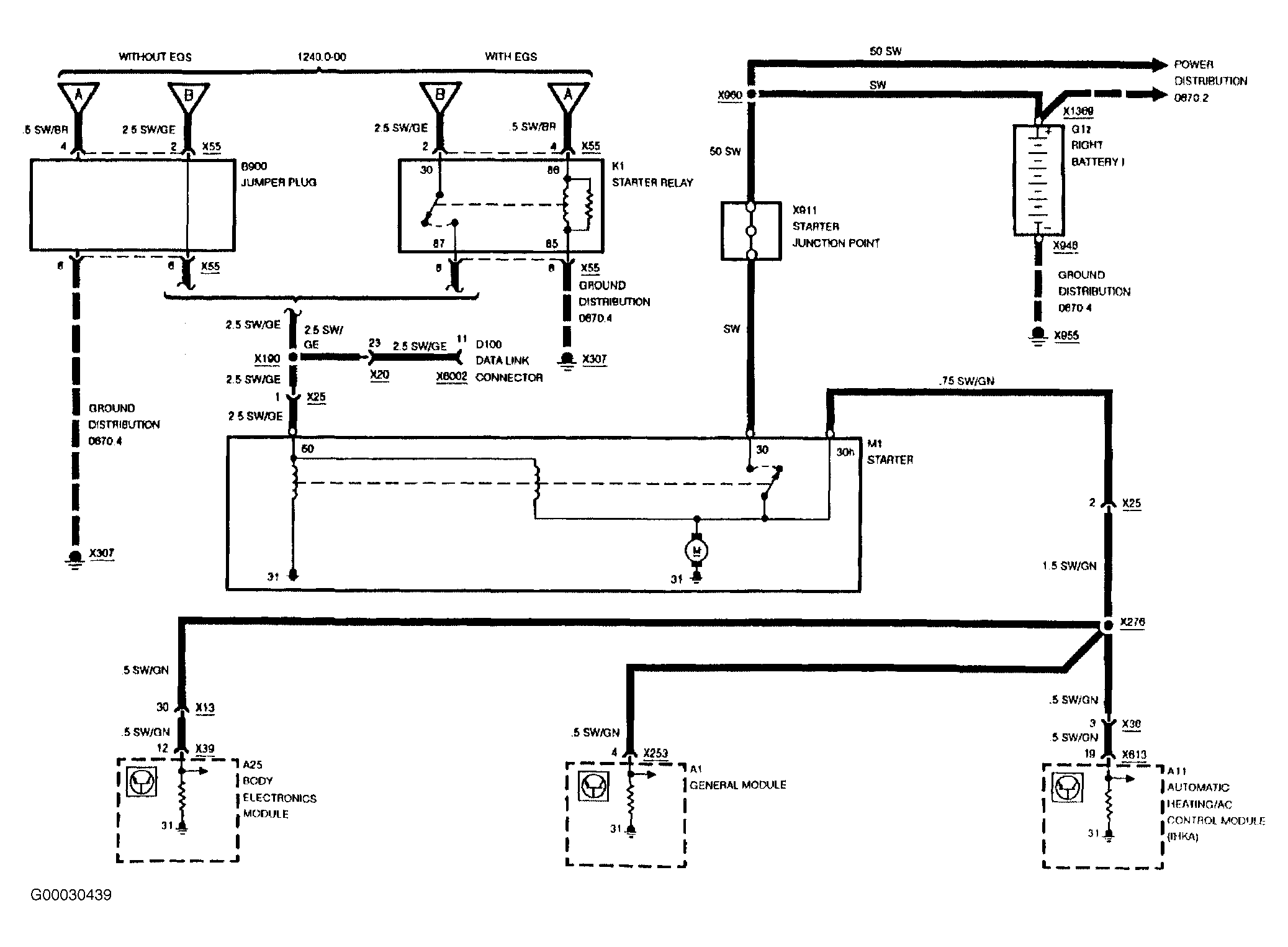

Fig 5: Starting Circuit - 1992-93 850Ci (2 Of 2)

G00030439

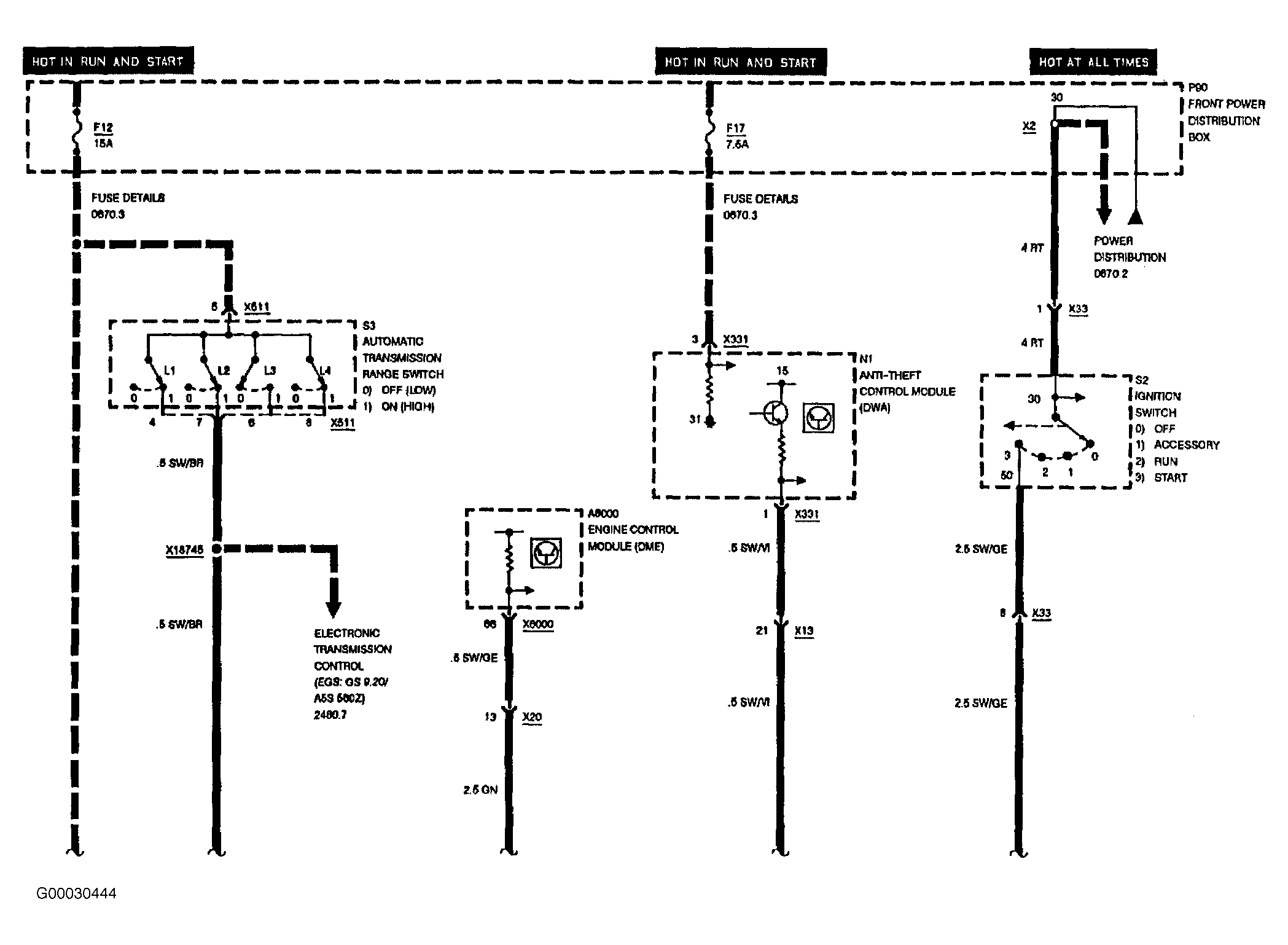

Fig 6: Starting Circuit - 1994 840Ci Late Production (1 Of 2)

G00030444

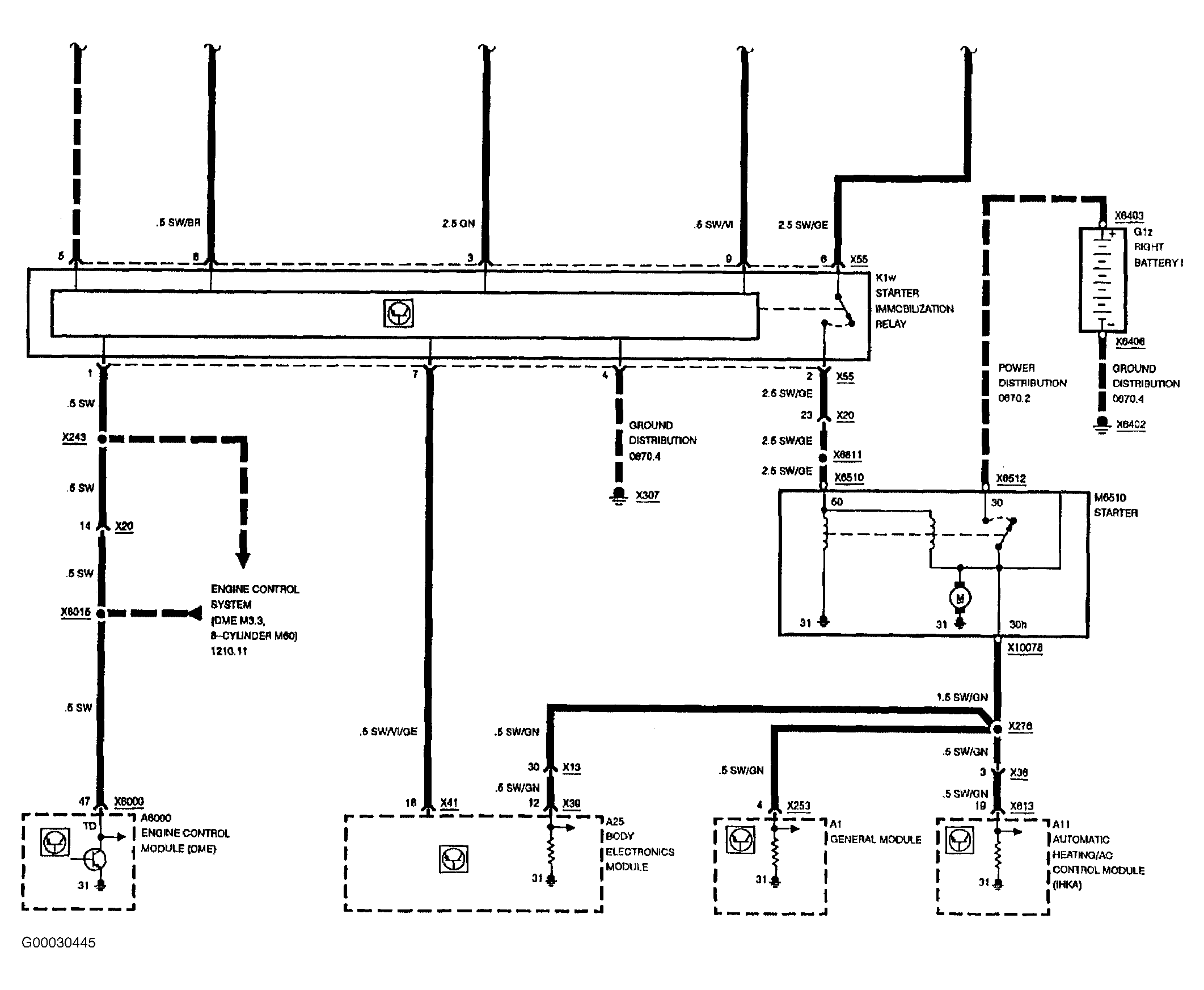

Fig 7: Starting Circuit - 1994 840Ci Late Production (2 Of 2)

G00030445

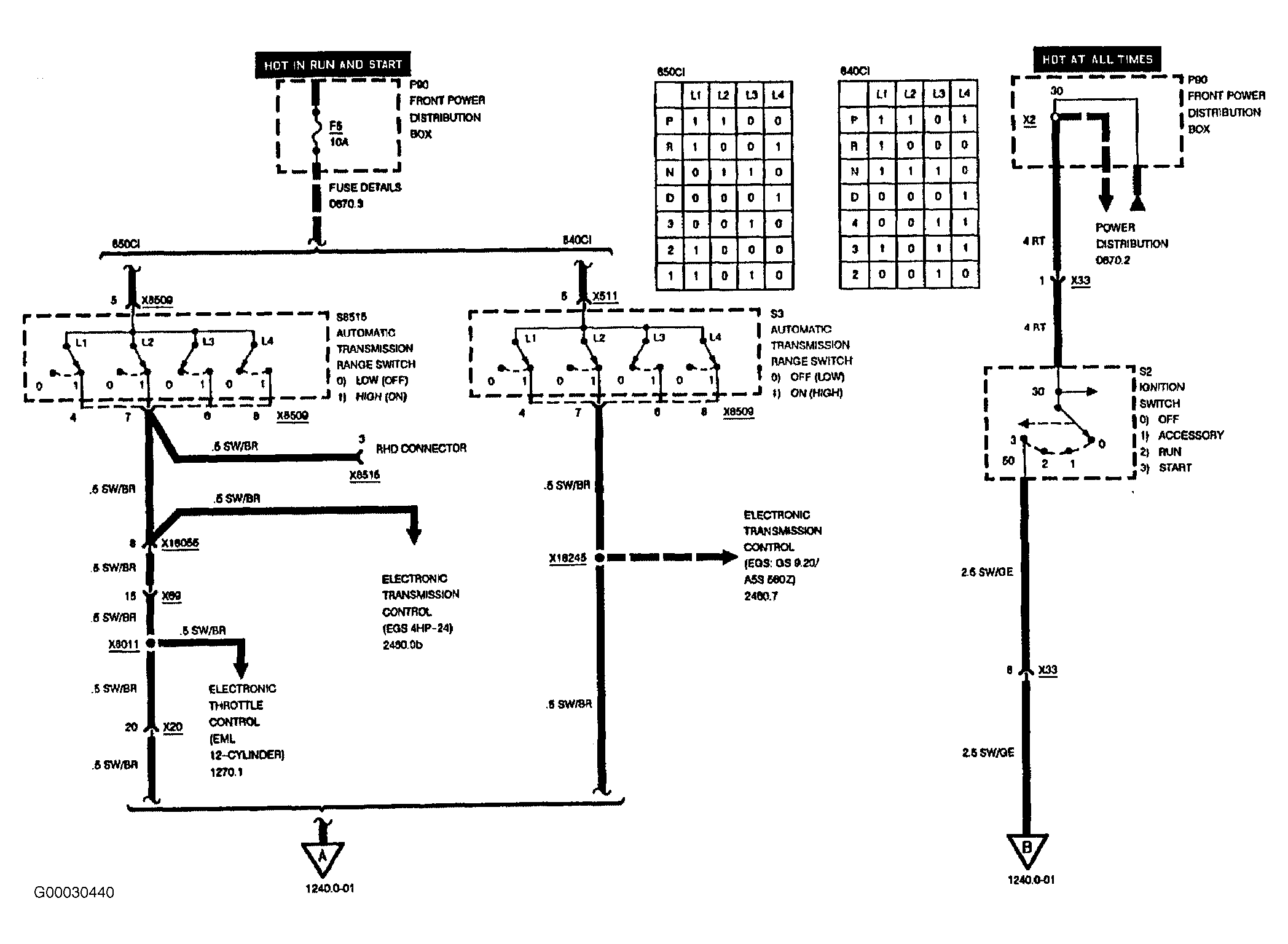

Fig 8: Starting Circuit - 1994 850Ci Early Production (1 Of 2)

G00030440

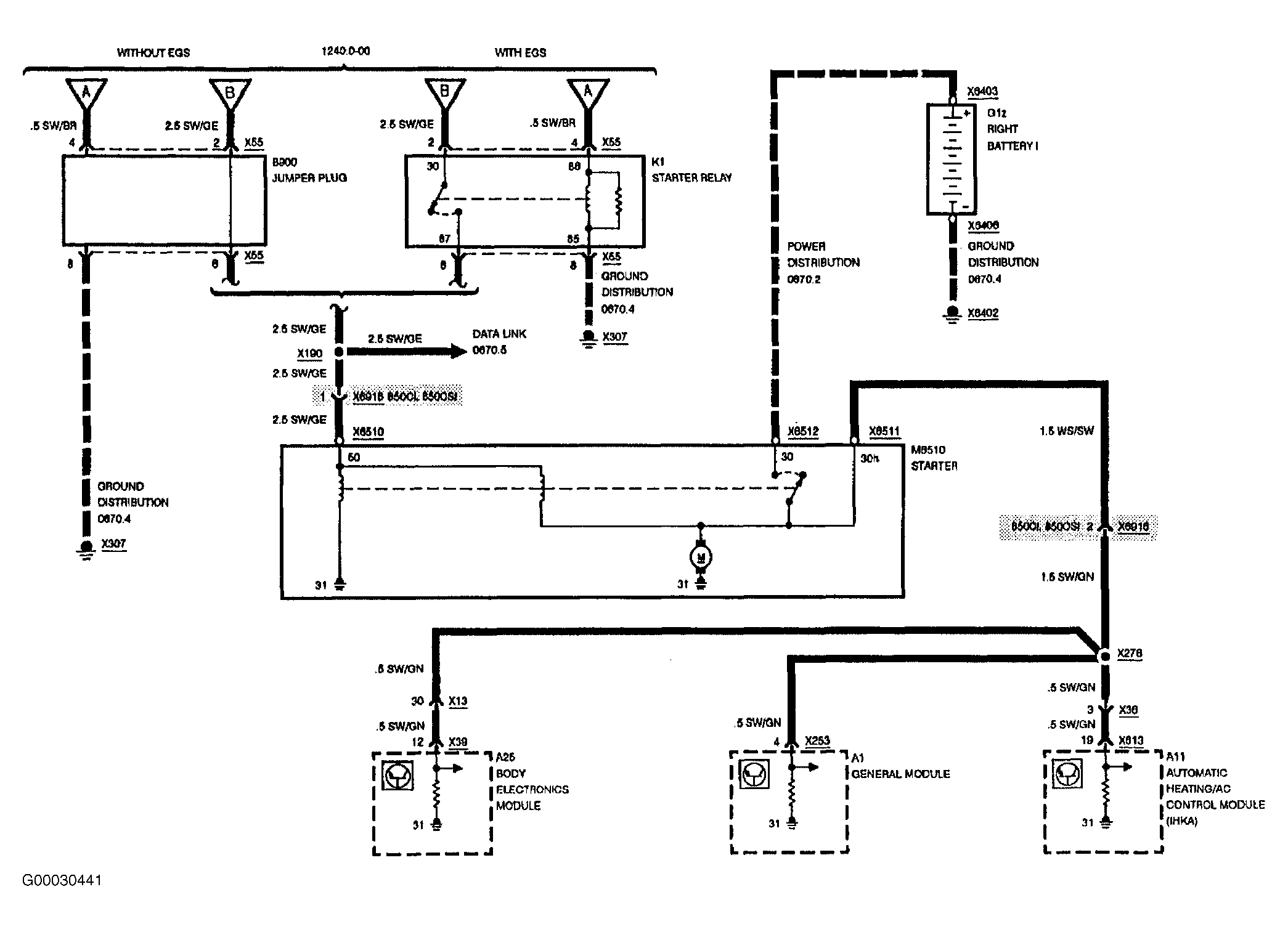

Fig 9: Starting Circuit - 1994 850Ci Early Production (2 Of 2)

G00030441

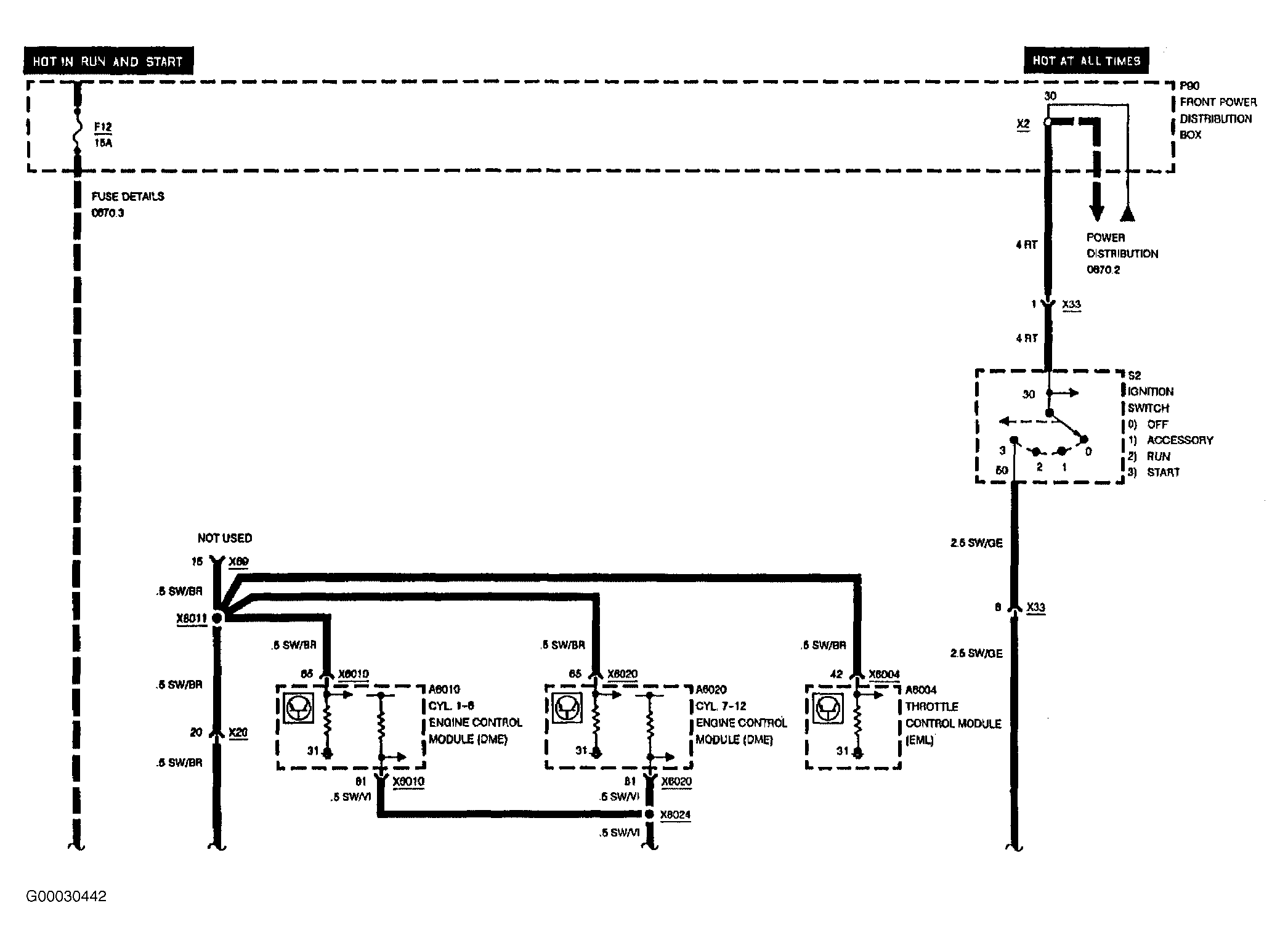

Fig 10: Starting Circuit - 1994 850Ci & 850CSi Late Production (1 Of 2)

G00030442

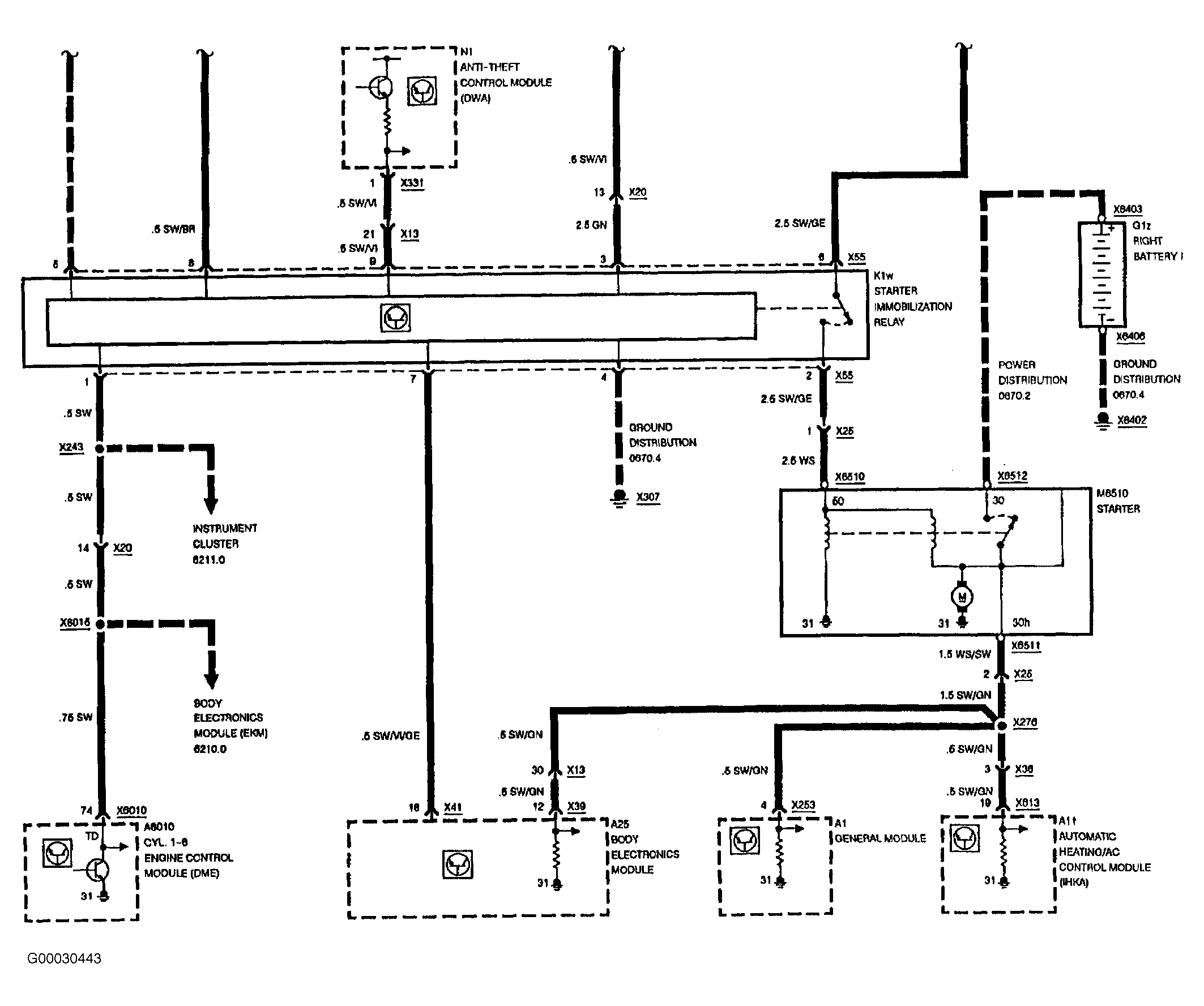

Fig 11: Starting Circuit - 1994 850Ci & 850CSi Late Production (2 Of 2)

G00030443

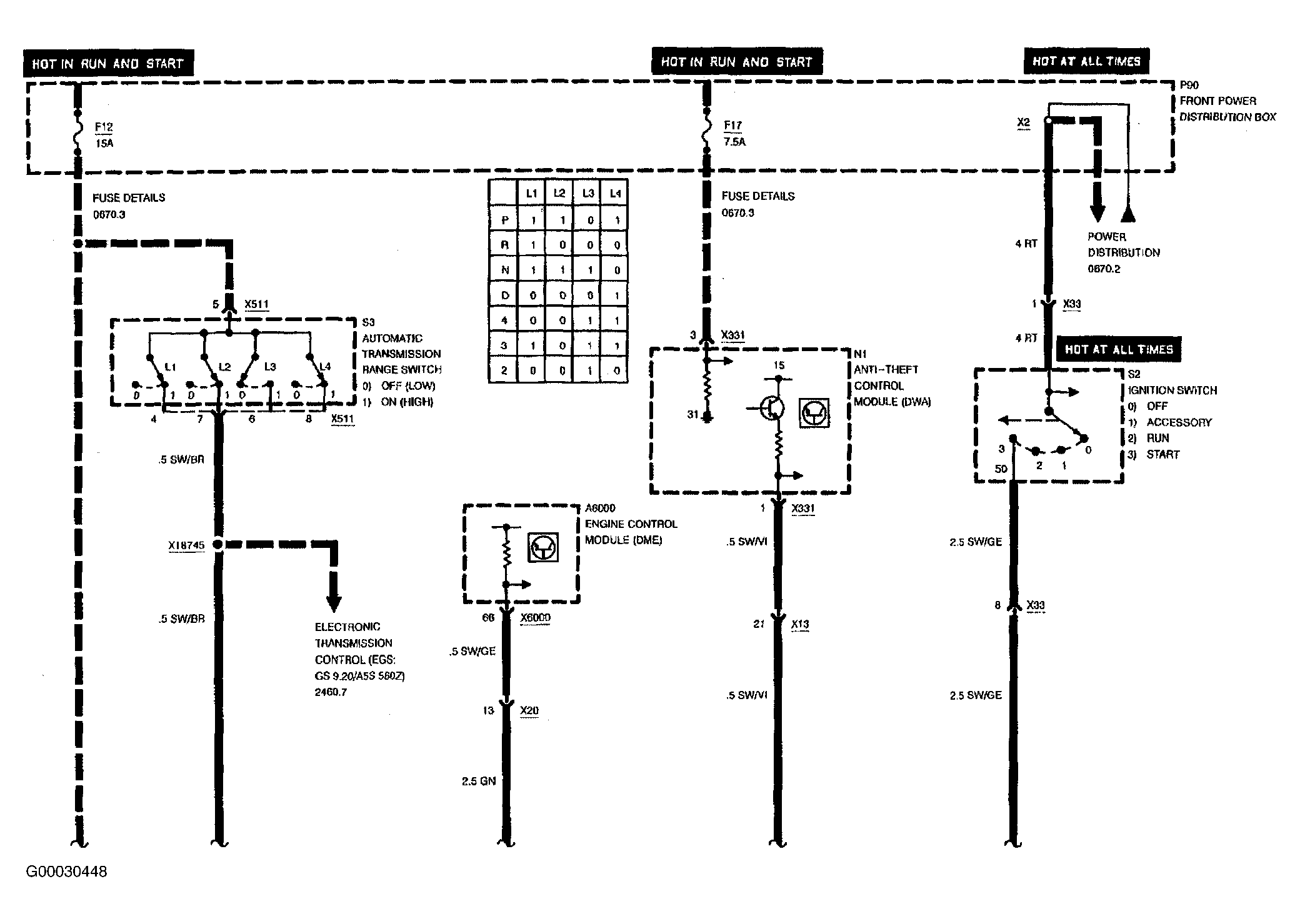

Fig 12: Starting Circuit - 1995-96 840Ci Early Production (1 Of 2)

G00030448

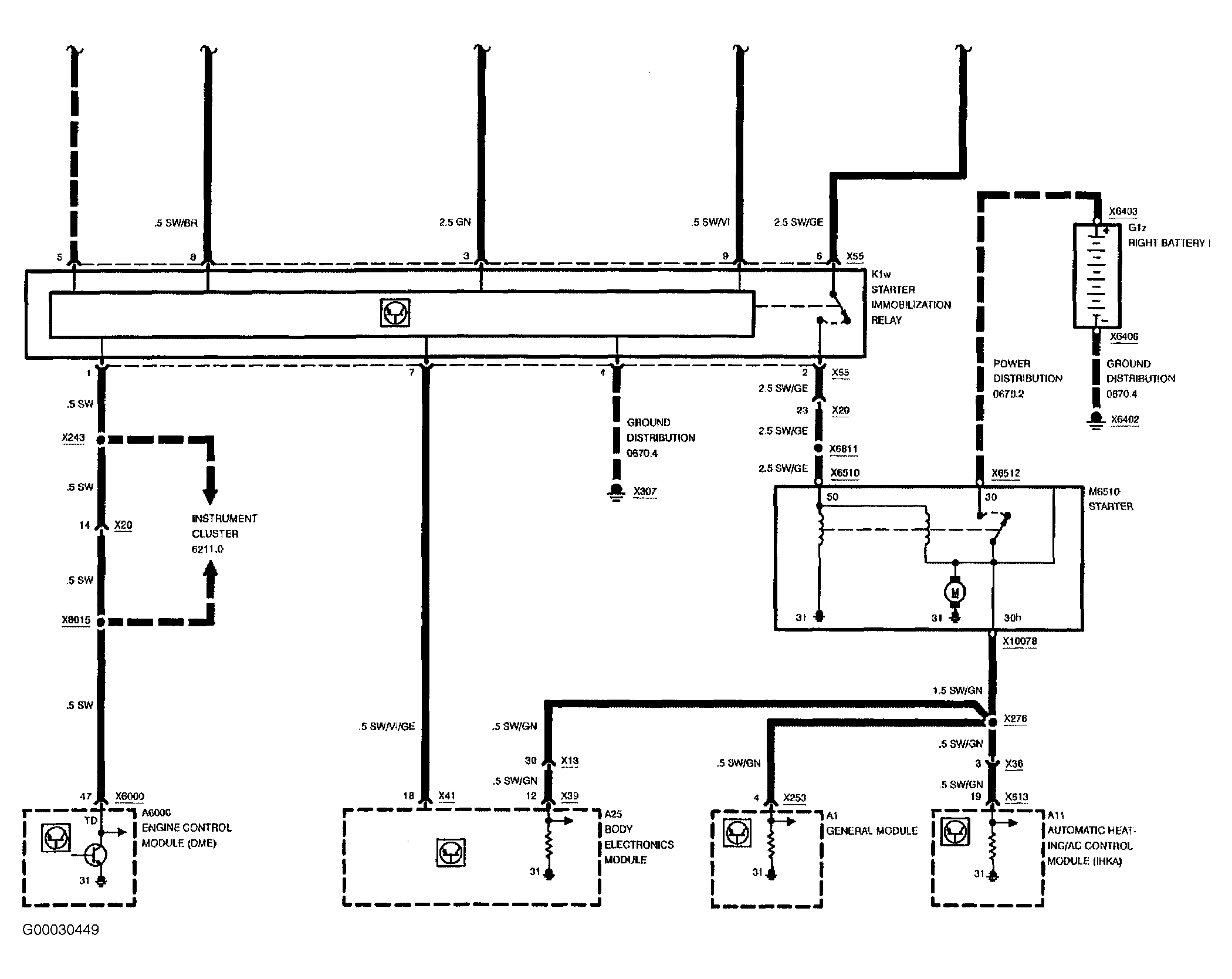

Fig 13: Starting Circuit - 1995-96 840Ci Early Production (2 Of 2)

G00030449

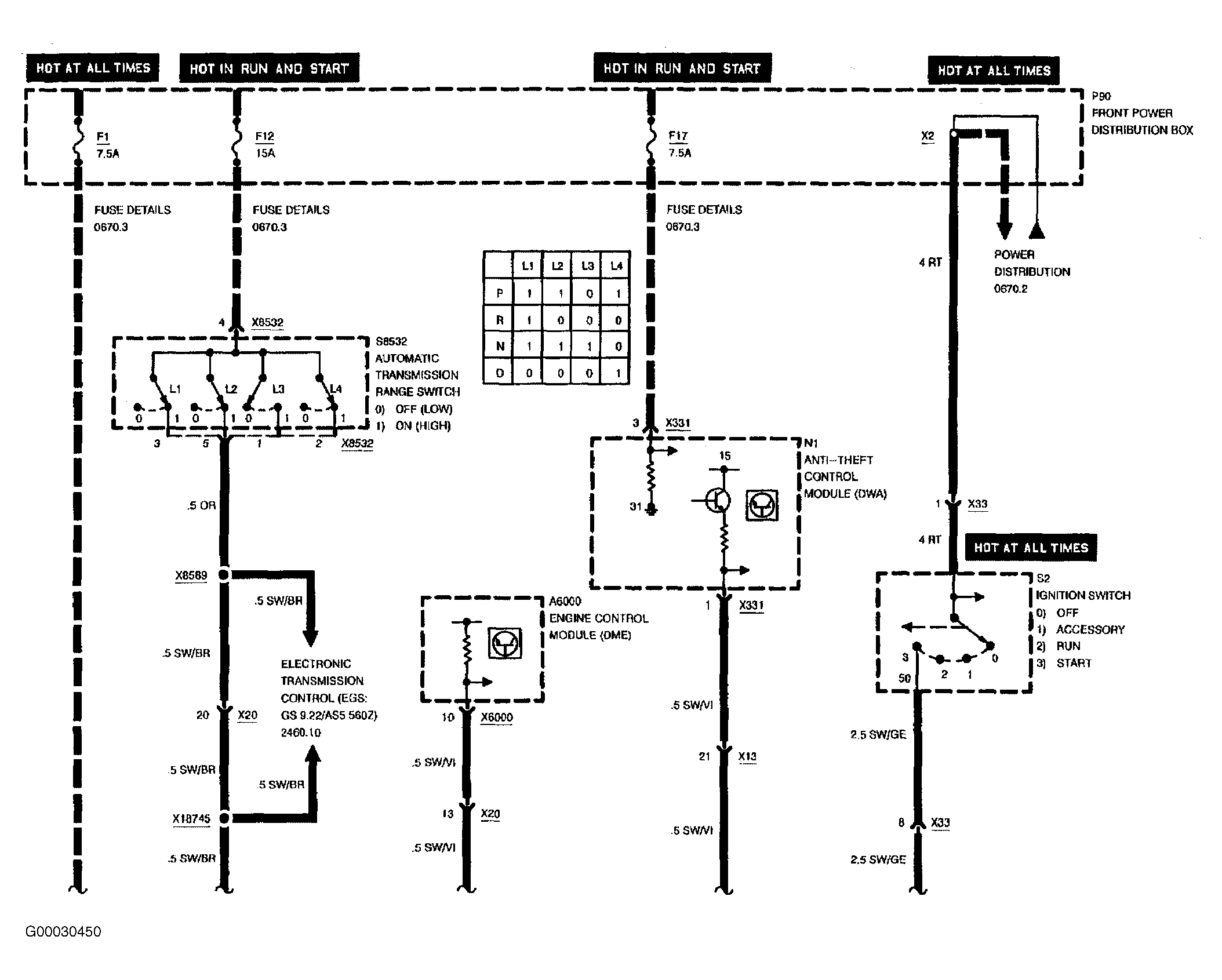

Fig 14: Starting Circuit - 1995-96 840Ci (1 Of 2)

G00030450

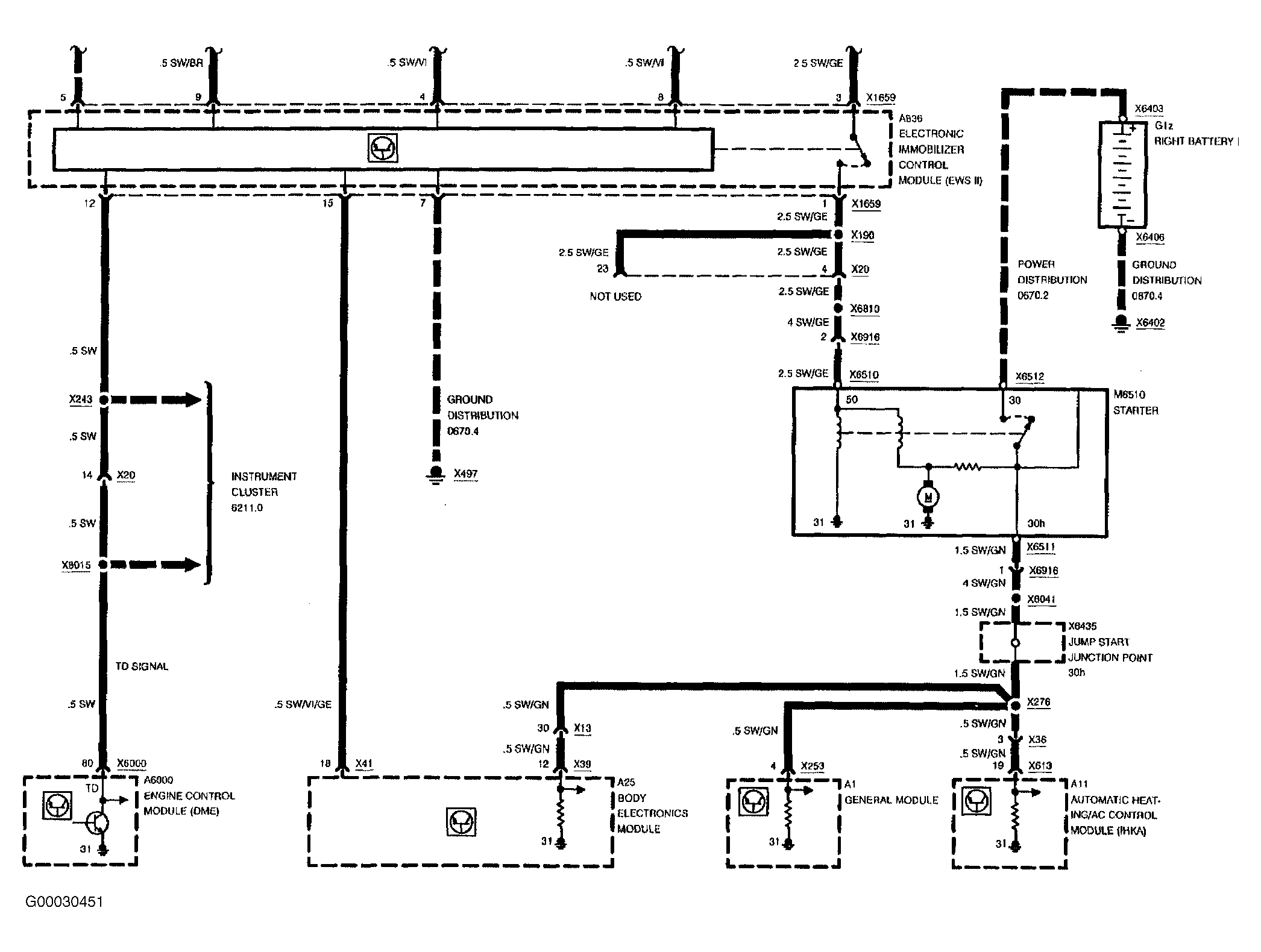

Fig 15: Starting Circuit - 1995-96 840Ci (2 Of 2)

G00030451

Fig 16: Starting Circuit - 1995-96 840Ci Late Production (1 Of 2)

G00030452

Fig 17: Starting Circuit - 1995-96 840Ci Late Production (2 Of 2)

G00030453

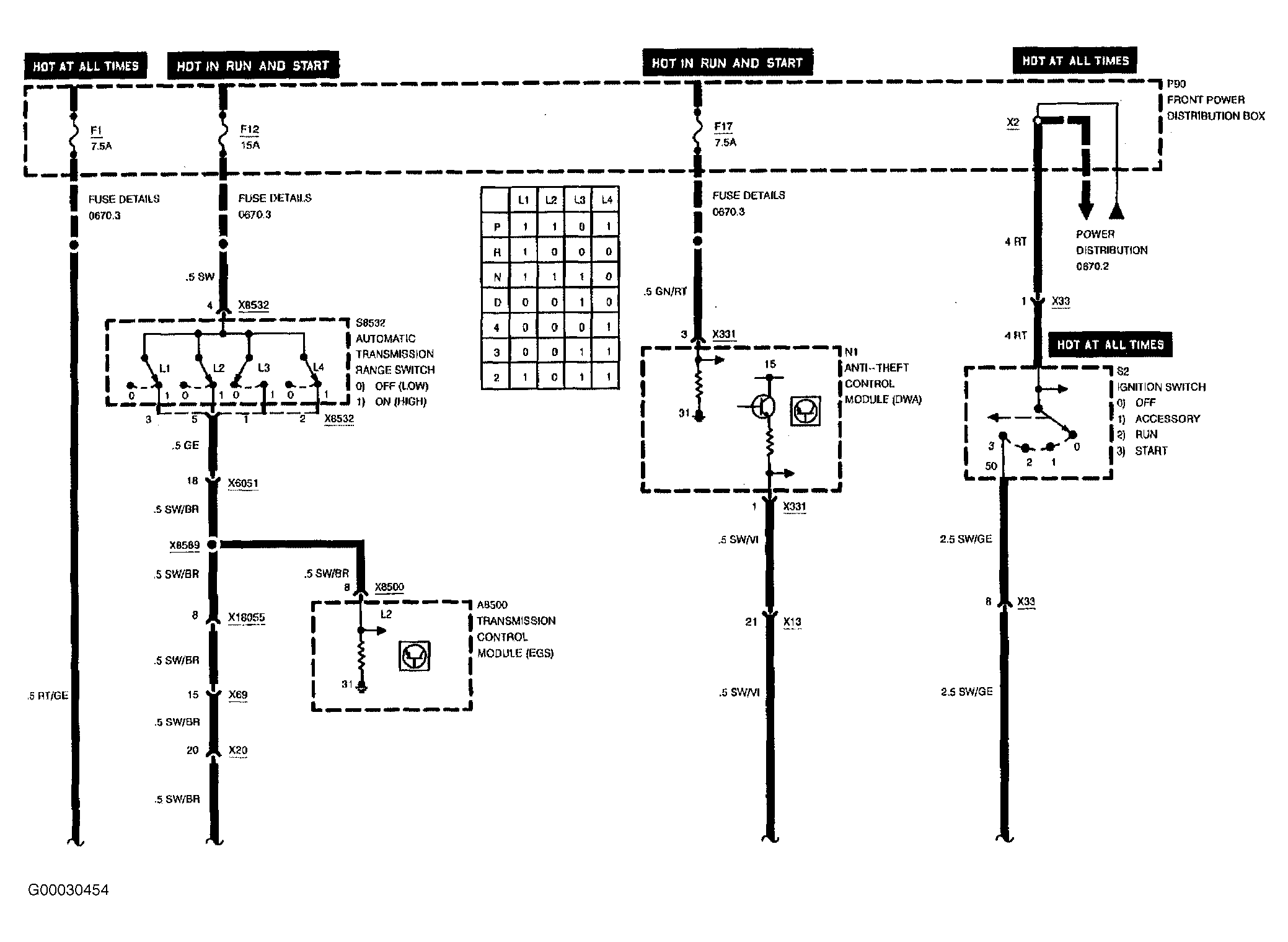

Fig 18: Starting Circuit - 1995-96 850Ci Early Production (1 Of 2)

G00030454

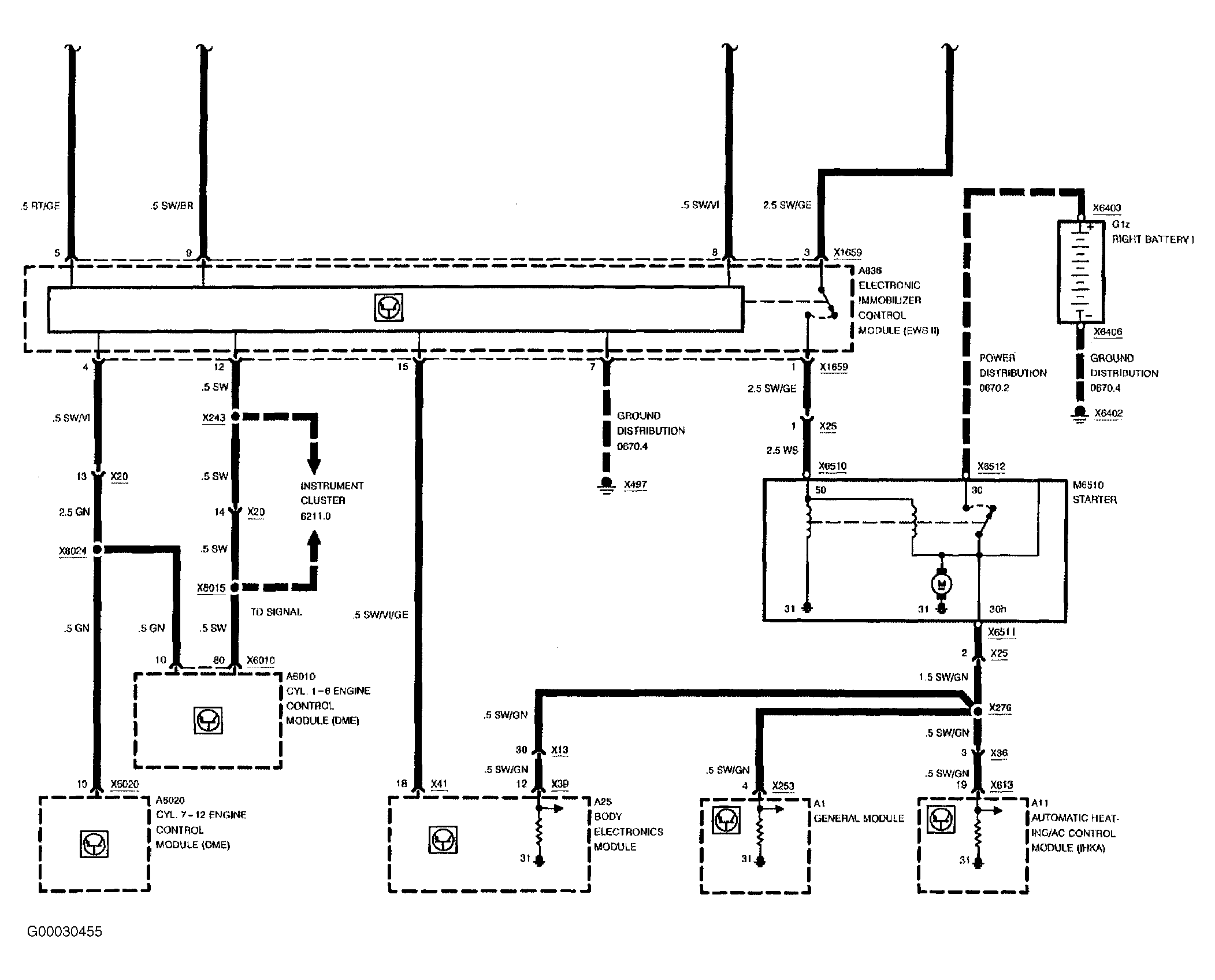

Fig 19: Starting Circuit - 1995-96 850Ci Early Production (2 Of 2)

G00030455

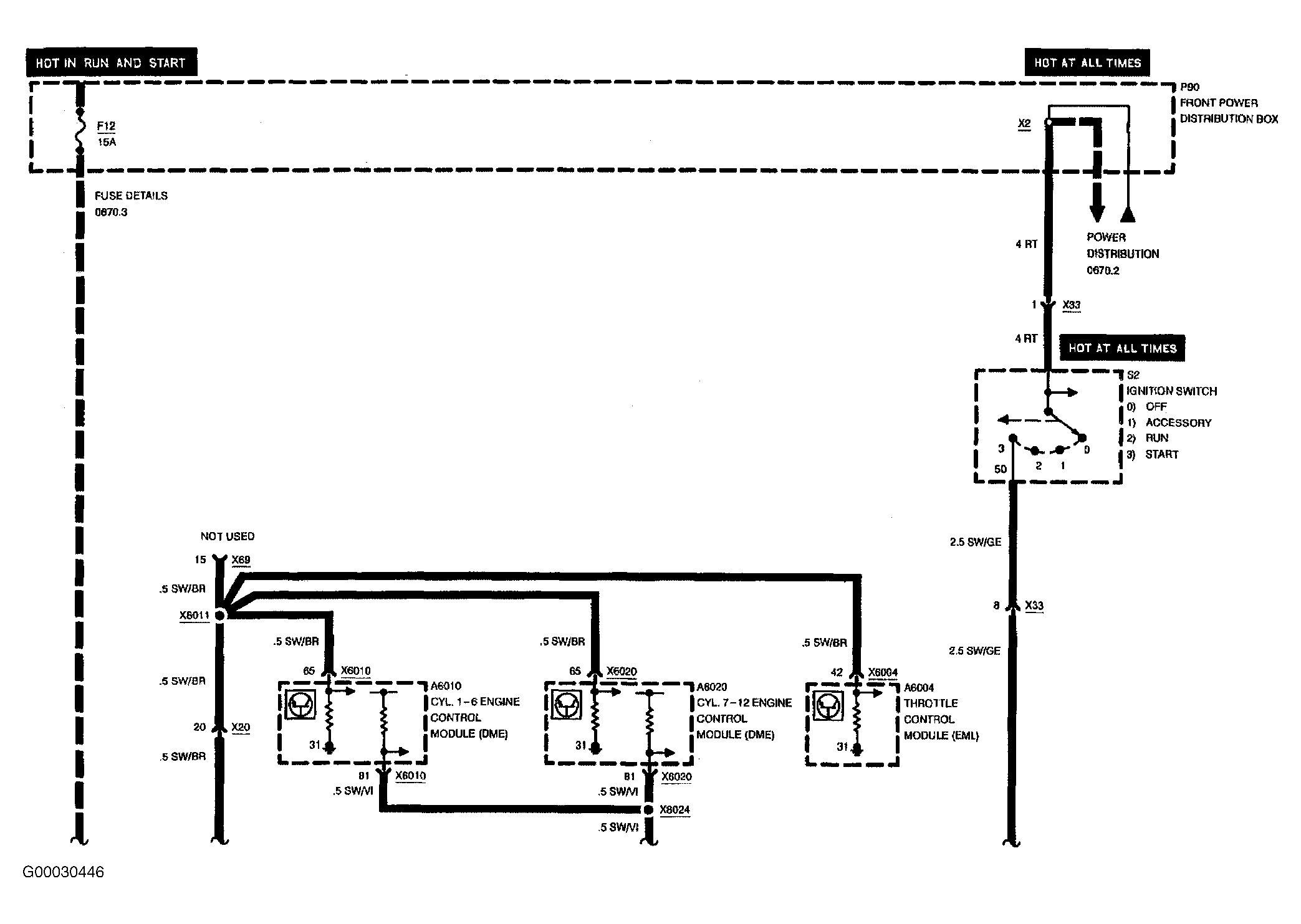

Fig 20: Starting Circuit - 1995-96 850CSi Early Production (1 Of 2)

G00030446

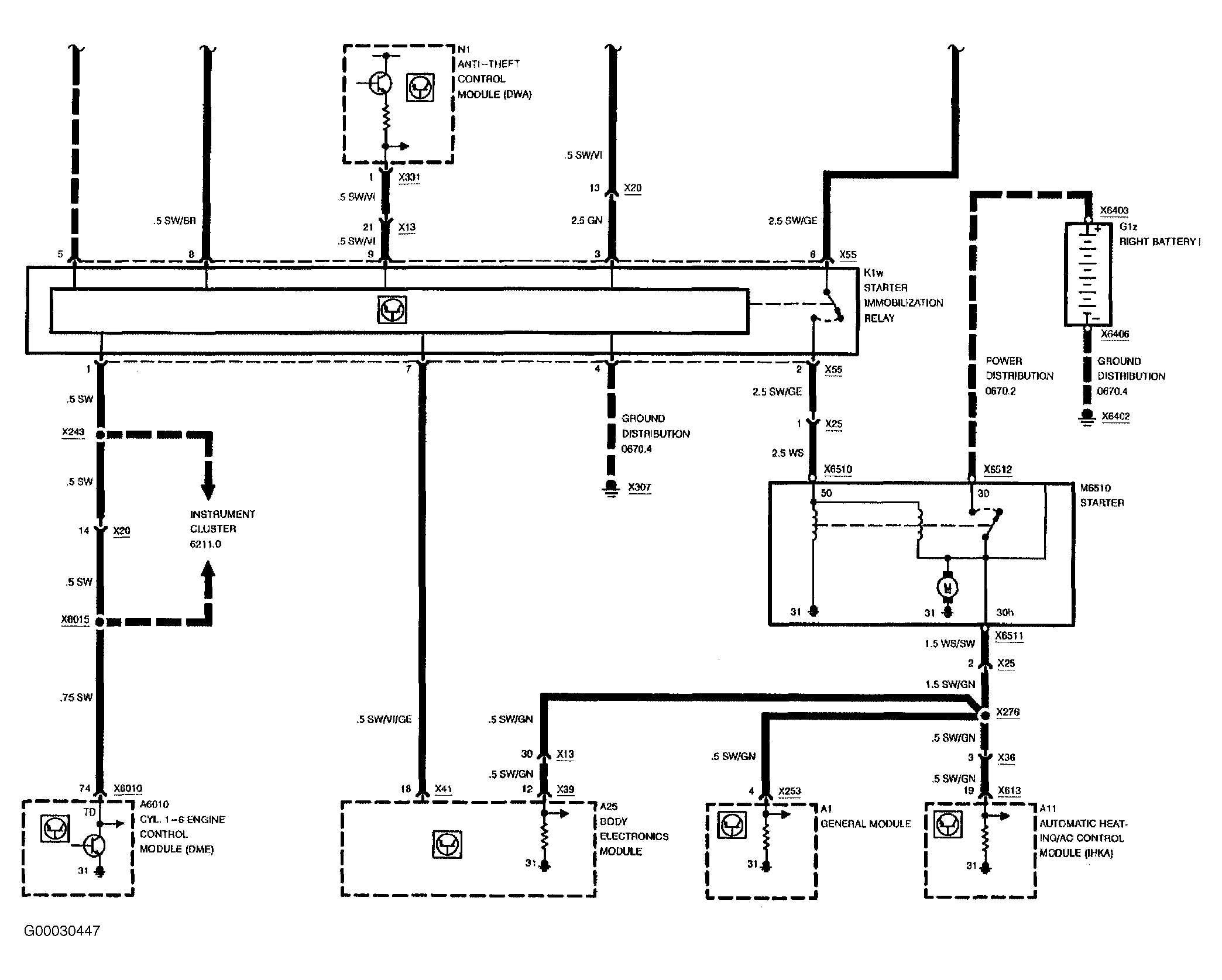

Fig 21: Starting Circuit - 1995-96 850CSi Early Production (2 Of 2)

G00030447

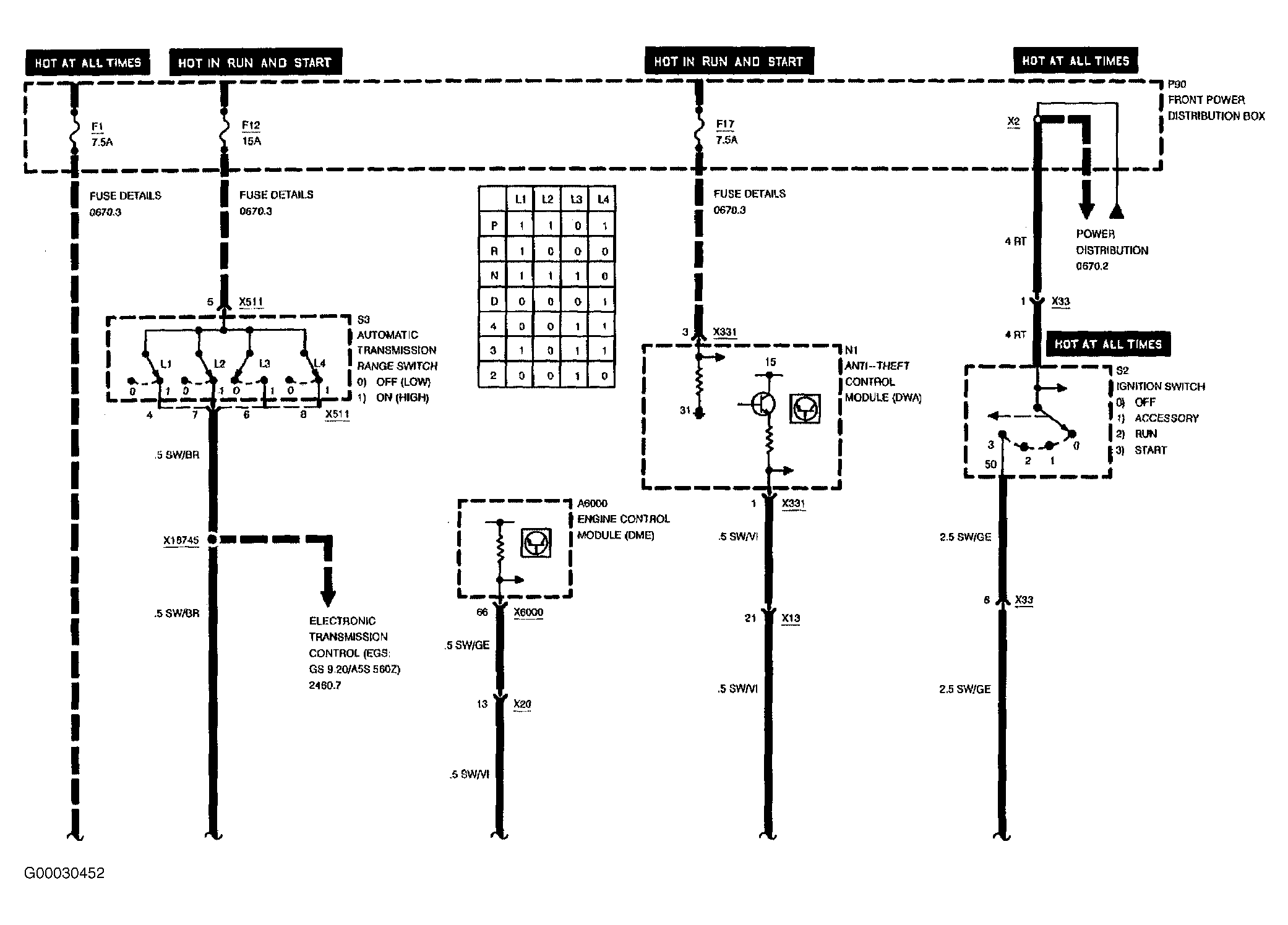

Fig 22: Starting Circuit - 1995-96 850CSi Late Production (1 Of 2)

G00030452

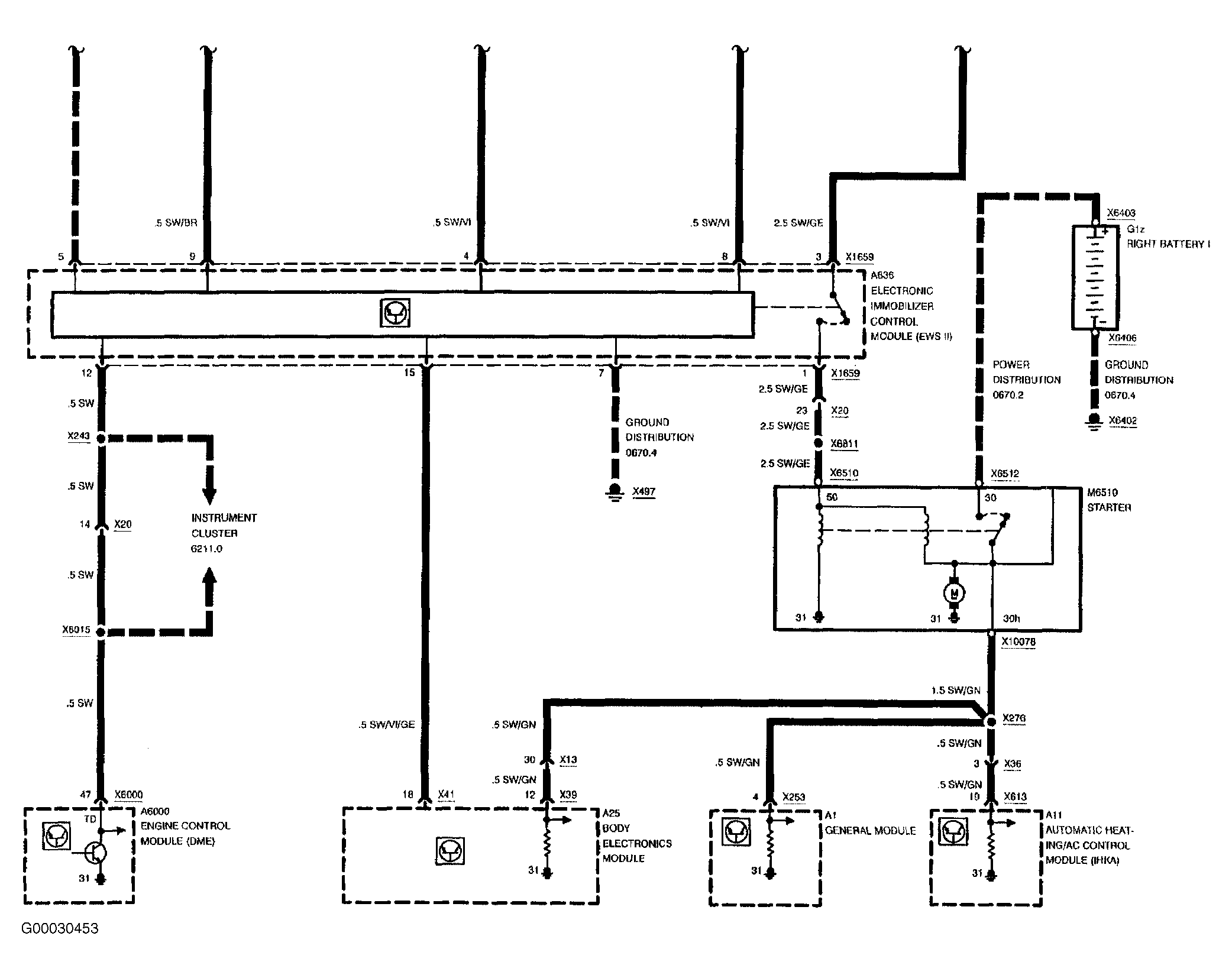

Fig 23: Starting Circuit - 1995-96 850CSi Late Production (2 Of 2)

G00030453
