Steering Column: Removal

Disconnect negative battery cable.
Remove steering wheel. See STEERING WHEEL .
Remove lower trim section from instrument panel. See INSTRUMENT LOWER TRIM PANEL .
Remove clamping bolt. Pull steering spindle downwards out of spline in upper steering spindle. See Fig 1 .
On 318ti, remove bolts. See Fig 2 .
On all models, remove collar. See Fig 3 .
Remove cable for interlock if necessary. See Figure .
Unlock bayonet ring by turning column counterclockwise. Disconnect all wires to steering column at plug in connections.
On models with AIRBAG, unscrew bolt to dashboard carrier . See Fig 4 .
On all models, remove steering column bracket shear-off bolts (1). Use a chisel on screw taper and unfasten with a hammer or mill off screw taper. Remove steering column. See Fig 5 .

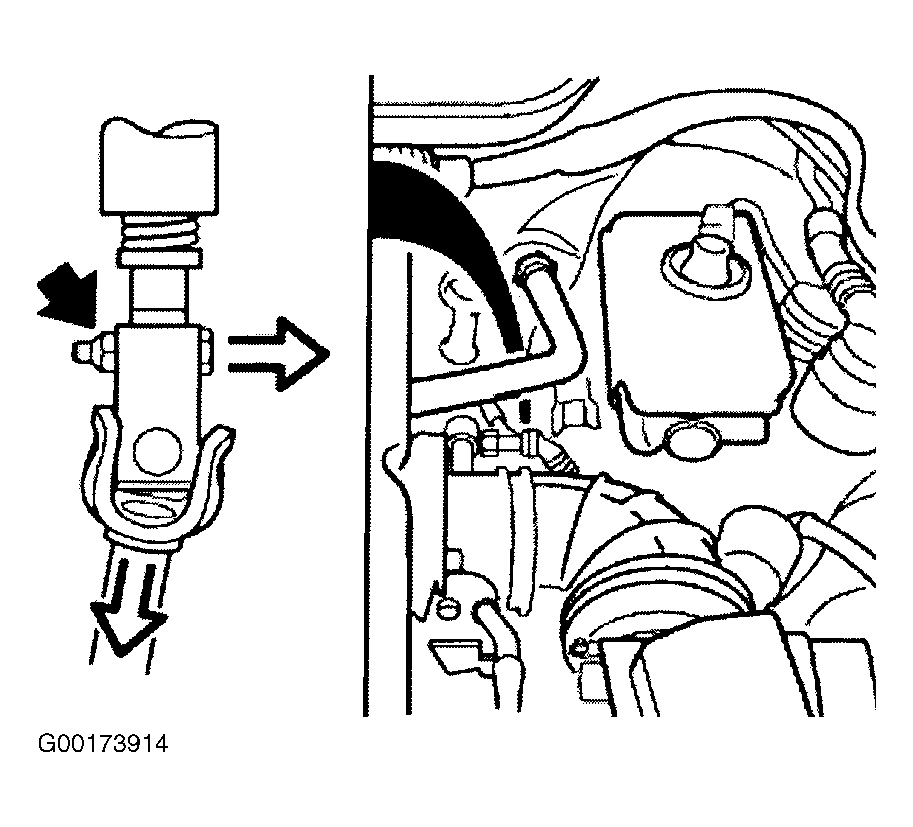

Fig 1: Locating Clamping Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Removing Steering Column Covers (318ti)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Removing Steering Column Collar

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Removing AIRBAG Bolt To Dashboard Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

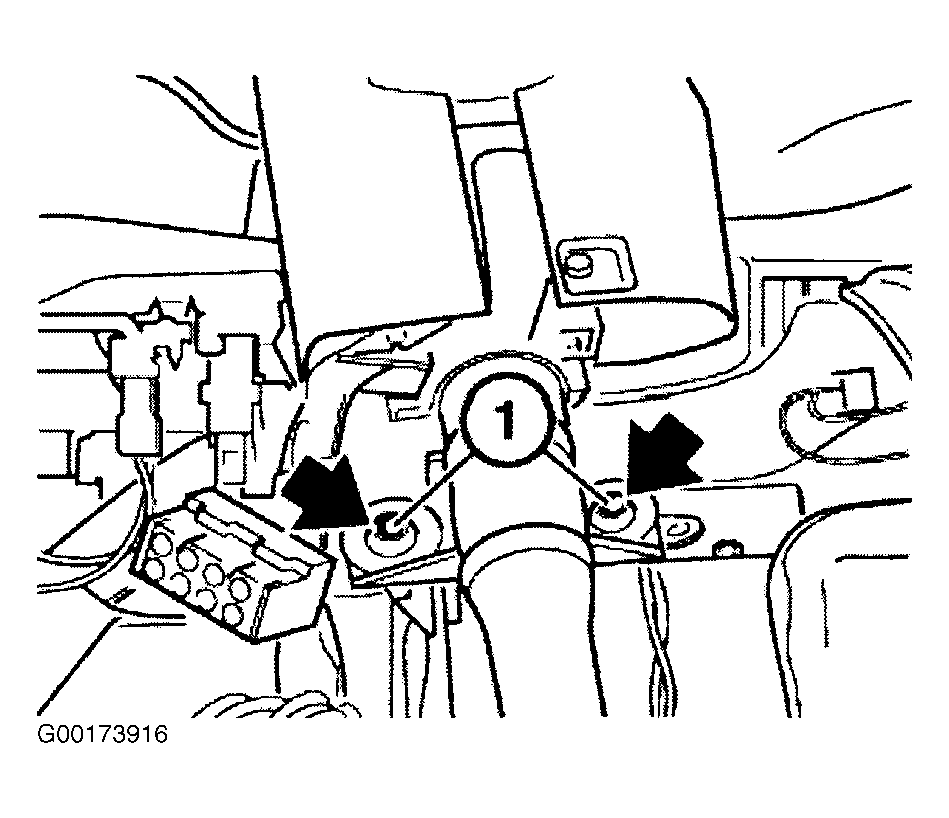

Fig 5: Locating Shear Off Screws

Courtesy of BMW OF NORTH AMERICA, INC.
