Spark Plug/Engine Oil Capacity Reference Chart (SI B00 22 92)

Publication date: 2000-12-01
Reference number: SI B00 22 92

SPARK PLUG/ENGINE OIL CAPACITY REFERENCE CHART

TECHNICAL SERVICE BULLETIN

Reference Number(s): 00 22 92

SPARK PLUG/ENGINE OIL CAPACITY REFERENCE CHART

Model(s): BMW, All Models

Group: 00 - Maintenance and General Hints

Bulletin No.: 00 22 92

Date: December, 2000

NOTE: This Service Information bulletin supersedes S.I. 00 22 92 dated January, 2000.

SITUATION

Attached is an update to the quick reference chart which includes all current spark plug applications and engine oil capacities. See Fig 1 and Fig 2 .

Description: Spark Plug/Engine Oil Capacity Reference Chart (Chrome Coated)

Order #: SD 92-016

Requests for additional copies (chrome coated) should be sent to:

Service Engineering

BMW of North America, Inc.

1 BMW Plaza

Montvale, NJ 07645

Fax Number: (201) 930-8401

A preprinted form is attached for your convenience. See Fig 3 .

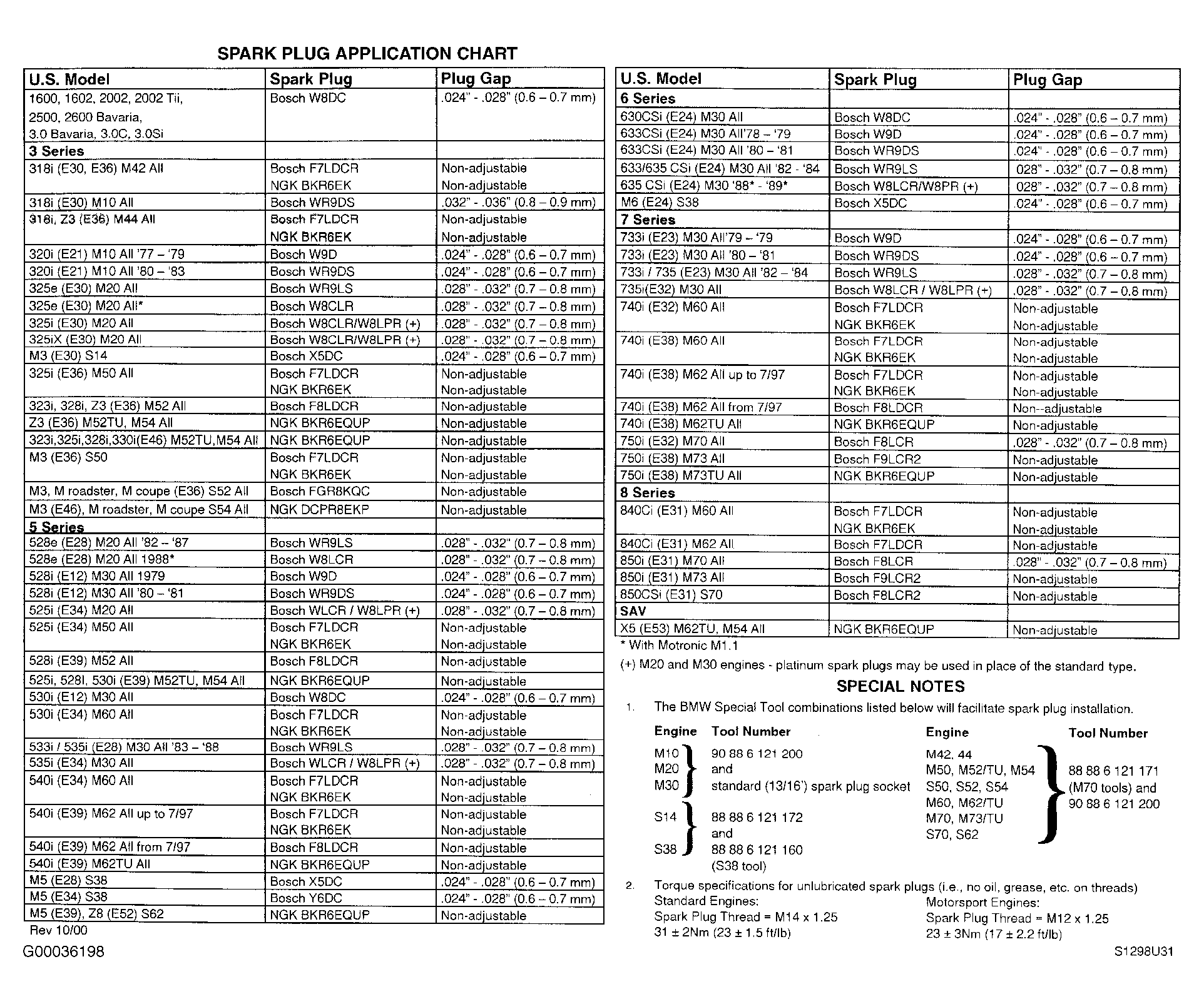

Fig 1: Spark Plug Application Chart

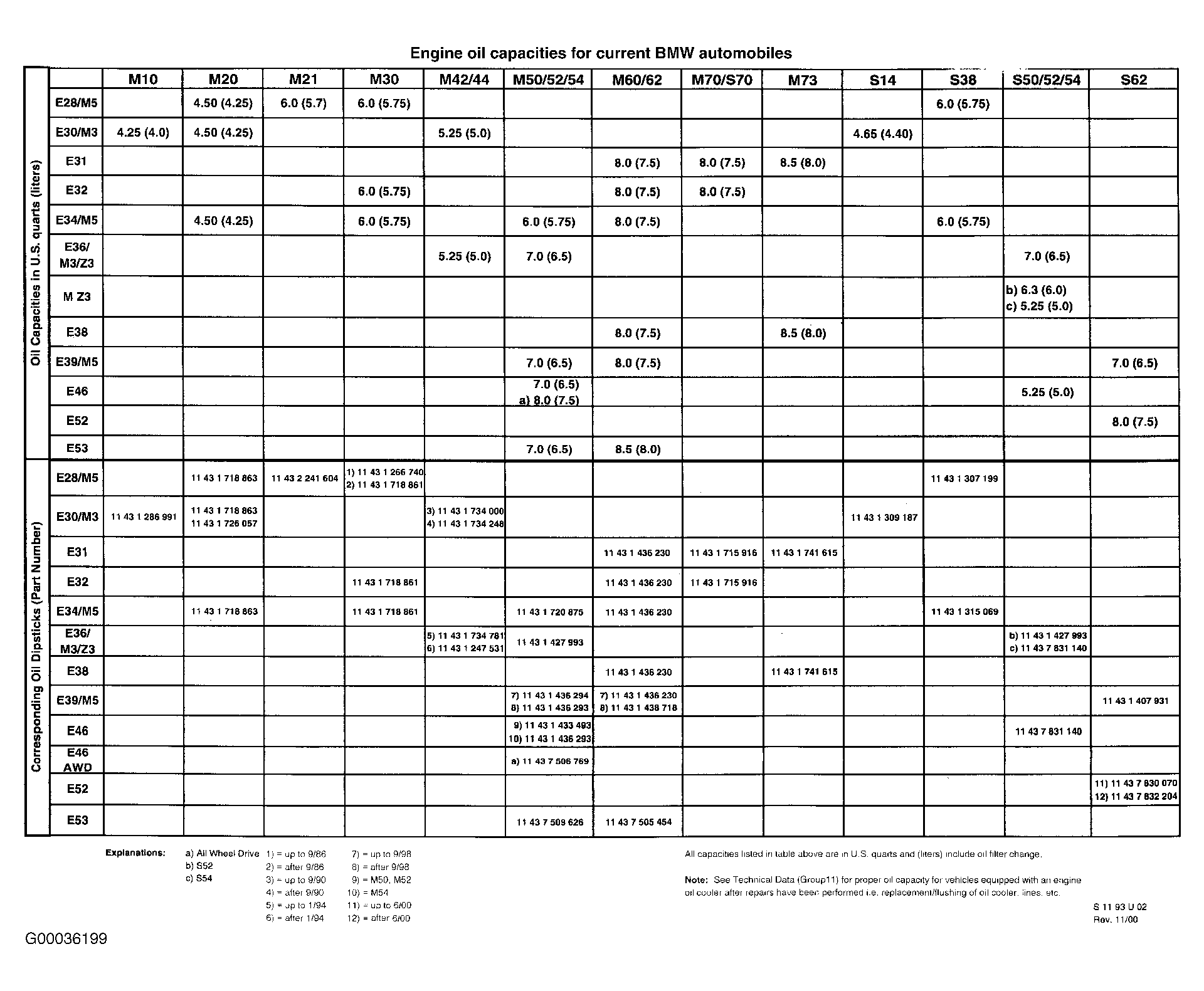

Fig 2: Engine Oil Capacities For Current BMW Automobiles

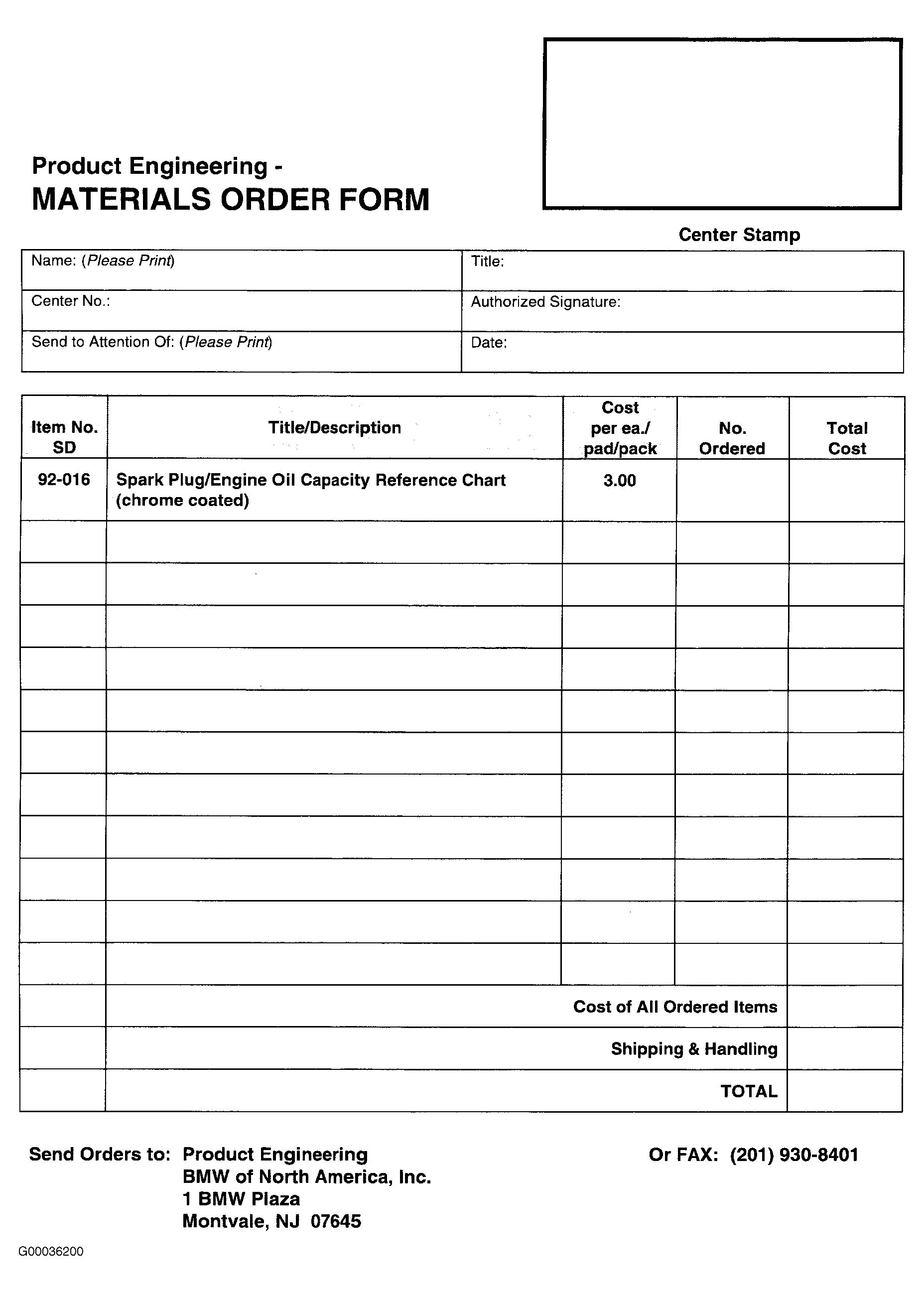

Fig 3: Materials Order Form
