Shift Rod

  1. Place gearshift lever in the "N" position. Disconnect selector rod from selector lever. SeeFig 1 .

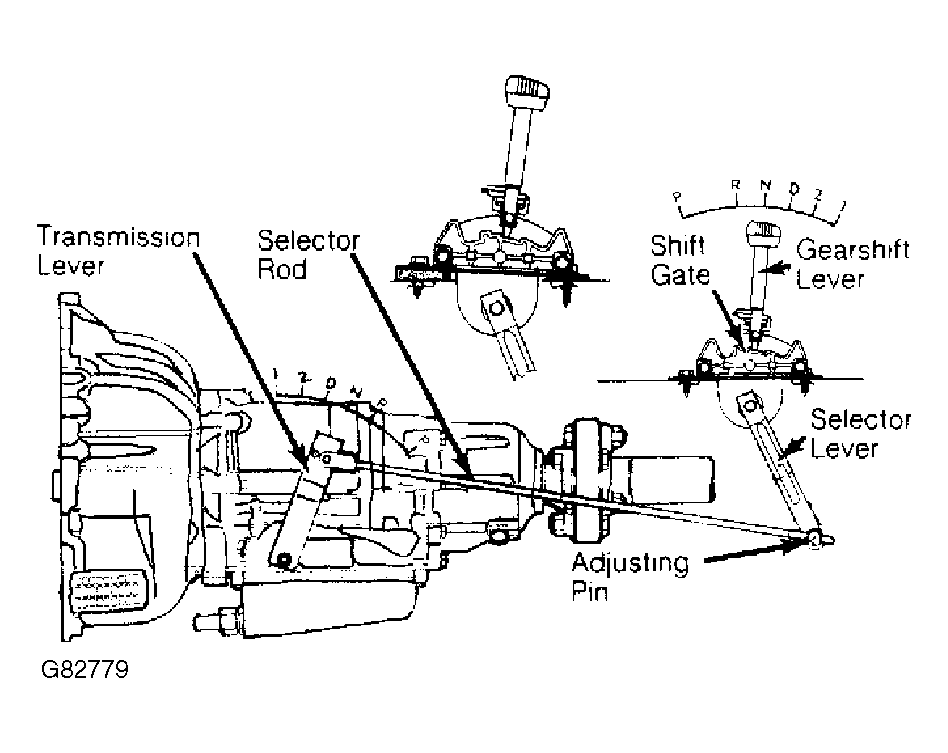

    Fig 1: Adjusting 325 Series Shift Linkage
    G82779Courtesy of BMW OF NORTH AMERICA.
  2. Make sure transmission is in Neutral. Press gearshift lever against forward stop on shift gate. Move adjusting pin so it fits easily into hole in selector lever.
  3. Shorten the length of the selector rod by 1 turn. Secure the selector rod.
