Shift Cable

  1. Move gearshift lever to the "P" position. Loosen cable attaching nut on shift lever at transmission. Push transmission shift lever forward to the "P" position and push cable rod rearward.
  2. Tighten shift cable rod nut to 88-106 INCH lbs. (10-12 N.m). Check proper operation of shifter in each gear selection, readjust if necessary. See Fig 1 .

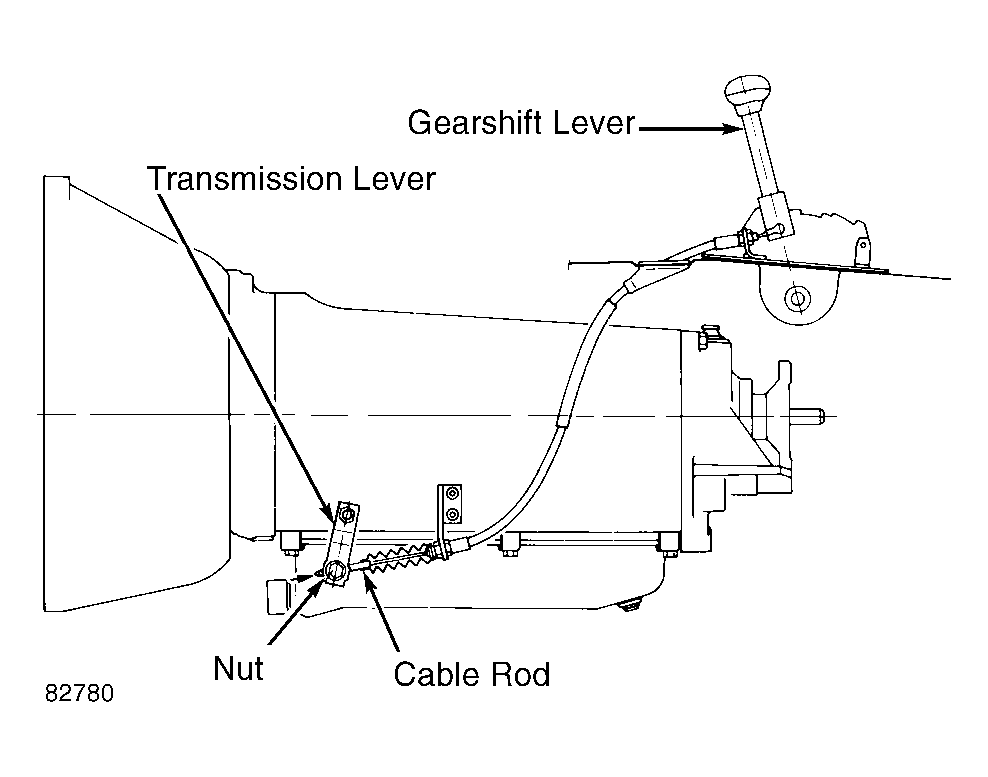

Fig 1: Adjusting Gearshift Cable
G82780Courtesy of BMW OF NORTH AMERICA.
