Step 1

Ensure ignition is off, disconnect A8 Cruise Control Module connector X22. Turn ignition switch to RUN position. Measure voltage at connector X22 as in PIN VOLTAGE SPECIFICATIONS - TABLE 1 .

PIN VOLTAGE SPECIFICATIONS -

CONDITION

MEASURE BETWEEN

CORRECT VOLTAGE

IF VOLTAGE IS INCORRECT

Selector in PARK/NEUTRAL

3 & Ground

Battery

Check connector X22, terminalNo. 3 wire for open or short.

Selector not in PARK or NEUTRAL

3 & Ground

0 Volts

Check connector X22, terminalNo. 3 wire for a short to battery.

⁽¹⁾	If measured voltages are as indicated, go to STEP 2 .

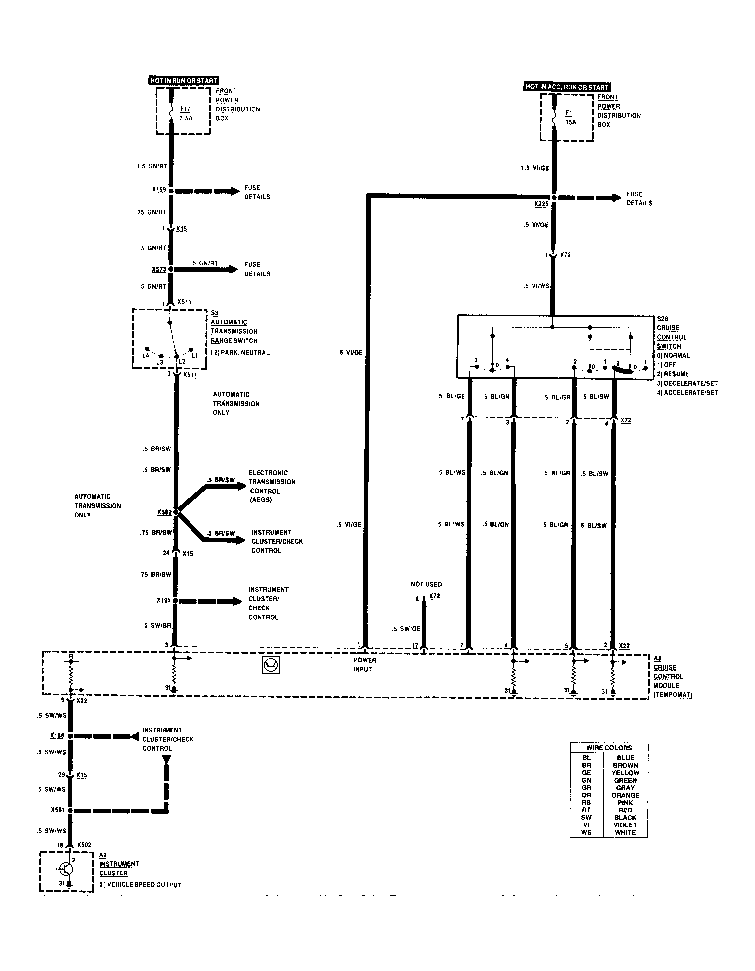

Fig 1: Wiring Schematic

Courtesy of BMW OF NORTH AMERICA, INC.

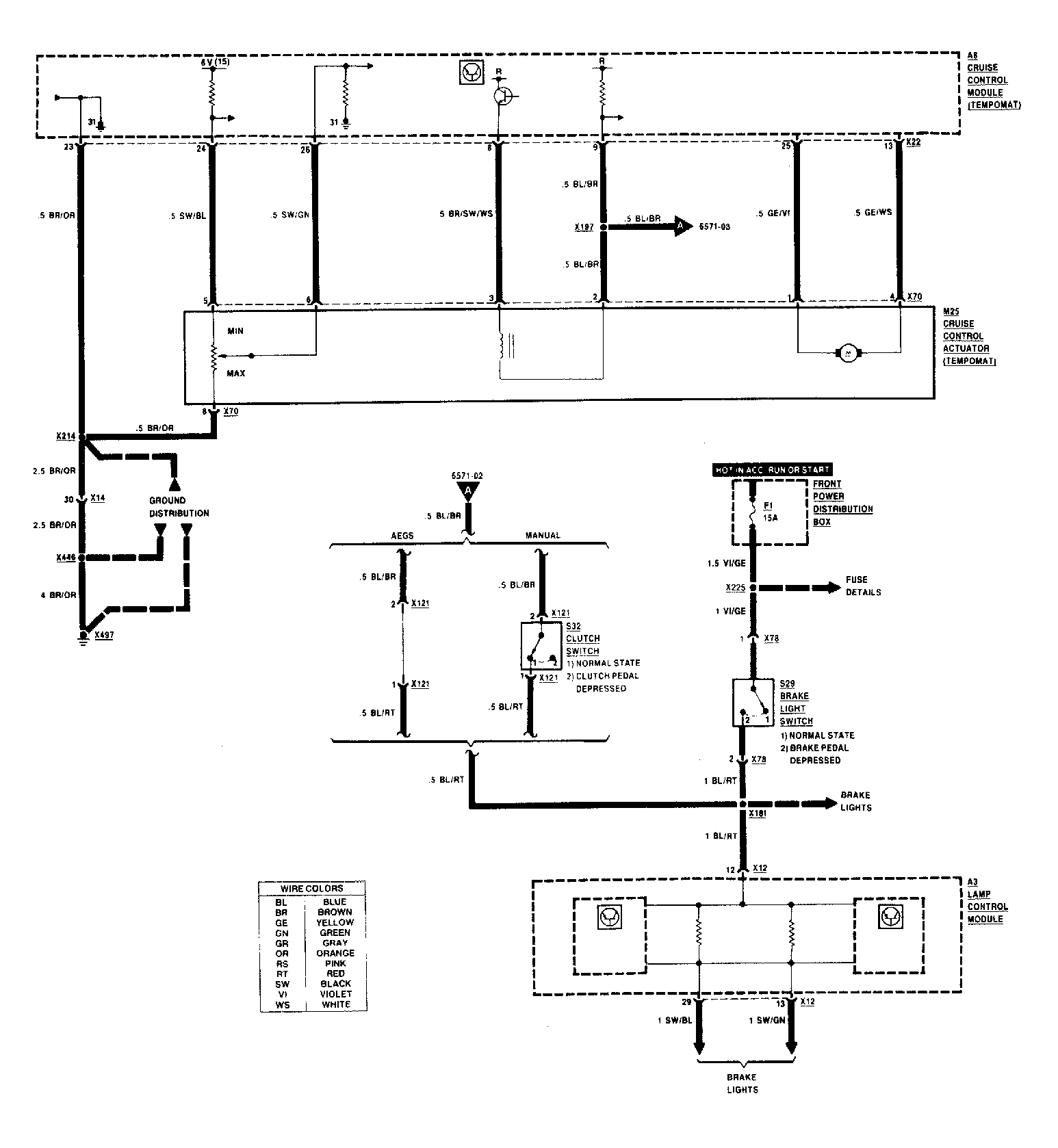

Fig 2: Wiring Schematic (Continued)

Courtesy of BMW OF NORTH AMERICA, INC.
