Front Suspension Assembly: Notes

CAUTION: Do not allow strut assemblies to tilt, sag or drop during front suspension assembly removal, as ball joint sockets may be damaged.

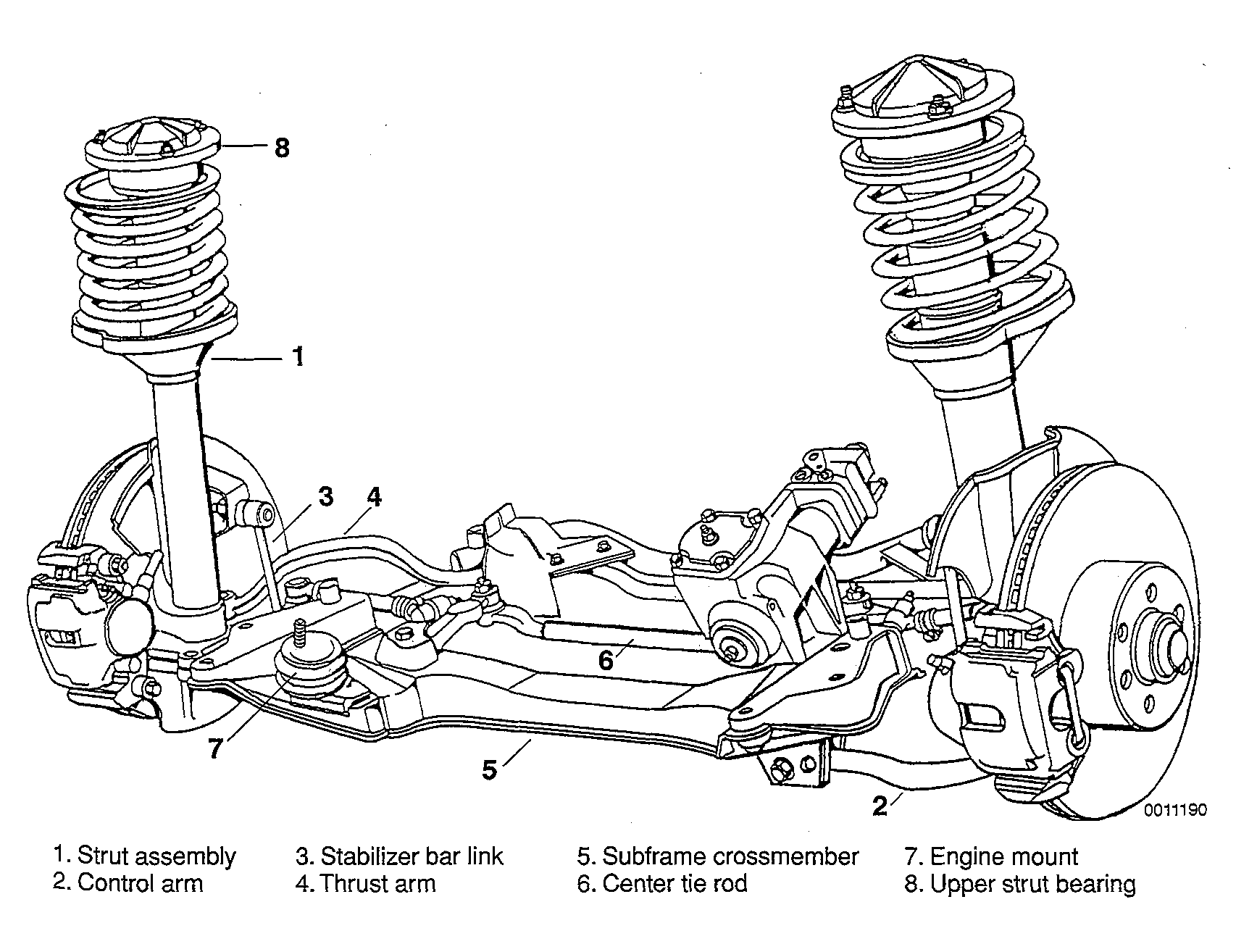

Fig 1: Identifying Front Suspension Components
G50216Courtesy of BMW OF NORTH AMERICA.
