ENGINE OILS AND QUICK REFERENCE CHART FOR ENGINE OIL QUANTITY AND DRAIN PLUG TORQUE

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B11 01 15, Date of Issue: January 2017

BMW:	All Models
GROUP:	Engine

Superceded Bulletin(s): SI B11 01 15, Date of Issue: October 2016

SERVICE INFORMATION

NOTE: Engine Oils and Quick Reference Chart for Engine Oil Quantity and Drain Plug Torque
This Service Information bulletin supersedes SI B11 01 1515 dated October 2016

INFORMATION

All vehicles with the B38, B46, B48, B58, N20, N26, N47, N54 (E89 only), N55, N57, N63, N63R, N63TU, S55, S63, S63R, S63T, N74 and W20 engines:

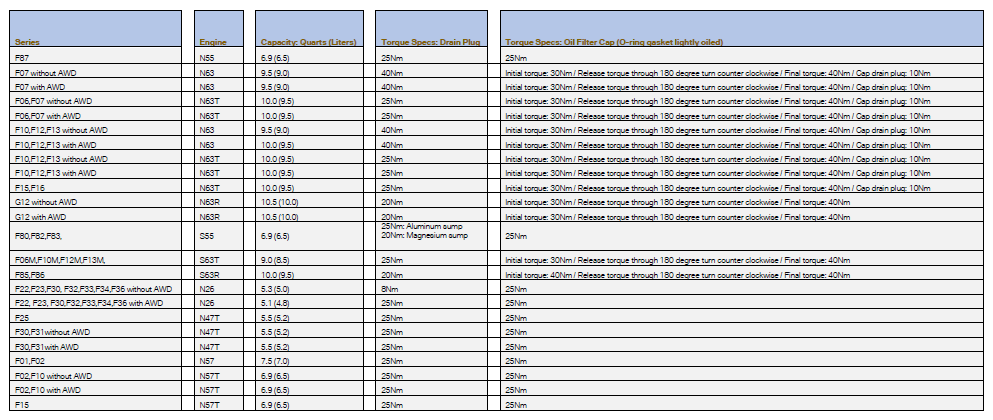

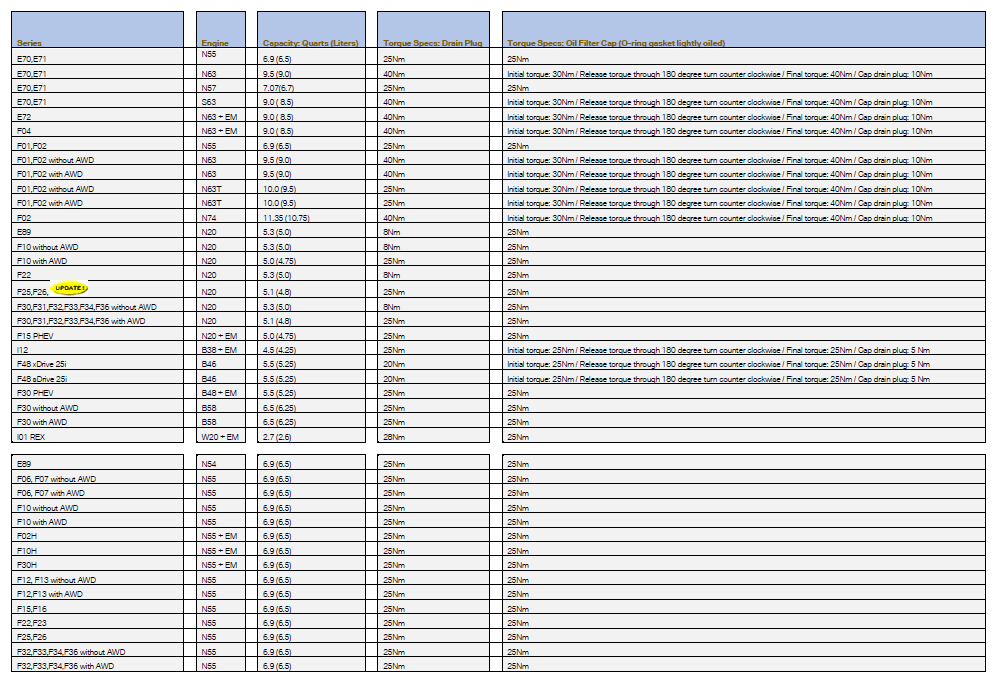

Refer to the attached quick reference chart describing the proper engine oil fill capacity and engine oil drain plug torque.

The same information is also contained in the applicable ISTA/D engine oil service repair instruction.

All Older Engines (Designations starting without "N" or "B"):

For engine oil filling capacity refer to the TIS Operating Fluids Manual, Group 11, Section 13.0.

For torque specifications refer to the applicable ISTA/D engine oil service repair instruction.

Model Year 2016 and 2017 and Newer Gasoline and Diesel Engine Oil Quick Reference Chart

Gasoline Engines	Oil Viscosity	Part Number	Container Description
B46, B58, N20, N26 B48, B38, B36	0W-20, LL14FE+	83 21 2 365 954	12 x 1 Liter case
N54, N54T, N55, S63TU, S63R, S55, W20, N63TU, N63R, N74	0W-30 LL01FE	83 21 2 365 950	12 x 1 Liter case
	or
	0W-30 LL01FE	83 21 2 449 994	Tanker Delivery - Liters
Diesel Engines	Oil Viscosity	Part Number	Container Description
N47, N57	0W-30 LL12FE	83 21 2 365 951	12 x 1 Liter case

Model Year 2012 to 2015 Gasoline and Diesel Engine Oil Quick Reference Chart

Gasoline Engines	Oil Viscosity	Part Number	Container Description
N20, N26, N51, N52K, N52T, N54, N54T, N55, S63, S63TU, S55, W20, N63, N63TU, N74, W20, B38, N74	0W-30 LL01FE	83 21 2 365 950	12 x 1 Liter case
	or
	0W-30 LL01FE	83 21 2 449 994	Tanker Delivery - Liters
Diesel Engines	Oil Viscosity	Part Number	Container Description
N47, N57, M57	0W-30 LL12FE	83 21 2 365 951	12 x 1 Liter case

Model Year 2011 and Older Gasoline and Diesel Engine Oil Quick Reference Chart

The 0W-30 LL01FE engine oil is fully compatible with the older engines and the 5W-30 LL01 engine oil. P/N 83 21 2 405 085 (5W-30 LL01 engine oil) is no longer available.

Use only part number 83 21 2 449 994 (0W-30 LL01FE engine oil) for your all of your future tanker deliveries.

Engines	Oil Viscosity	Old Part Number	New Part Number	Container Description
All BMW Gasoline Engines	5W-30 LL01	07 51 0 017 866	83 21 2 365 946	12 x 1 liter case
	5W-30 LL01	07 51 0 017 954	83 21 2 405 002	209 liter drum
	0W-30 LL01FE	None	83 21 2 449 994	Tanker Delivery - Liters
All BMW Diesel Engines	5W-30 LL04	07 51 0 037 195	83 21 2 365 949	12 x 1 liter case
BMW Motorsport Gasoline Engines (S55, S63, S63TU2)	5W-30 LL01	07 51 0 017 866	83 21 2 365 946	12 x 1 liter case
	5W-30 LL01	07 51 0 017 954	83 21 2 405 002	209 liter drum
	0W-30 LL01FE	None	83 21 2 449 994	Tanker Delivery - Liters
BMW Motorsport Gasoline Engines (S54, S65, S85,)	10W-60	07 51 0 009 420	83 21 2 365 944	12 x 1 liter case

S54, S65 and S85 Motorsport engines:

BMW Motorsport Gasoline Engines (All model years for S54, S65 and S85)

10W-60

07 51 0 009 420

83 21 2 365 944

12 x 1 liter case

WARRANTY INFORMATION

With the migration from "5W" weight to the "0W" weight engine oils, the "one-tenth" liter billing part numbers, except for as one noted below, are not currently available.

Until the corresponding "0W one-tenth" liter part numbers become available for the "0W bulk" container oil supply your center is ordering, BMW NA will reimburse centers for engine oil at the "full-liter" quantities and we will allow for the rounding up to the nearest liter.

Exception

The 0W-30 LL01FE "one-tenth" liter billing part number (83 21 2 450 384) is now available for those centers that are currently ordering the bulk quantity "Tanker Delivery - Liters" part number (83 21 2 449 994).

Invoicing this BMW engine oil using the "one-tenth" liter billing part number becomes effective with repair order/claim dates on or after October 17, 2016.

ATTACHMENTS

View PDF attachment B110115 Oil and Drain Plug Chart.
