Solenoid Pull-In Coil

Connect jumper wires between a 12 volt battery and solenoid. See Fig 1. Armature should pull in and return when current is removed.

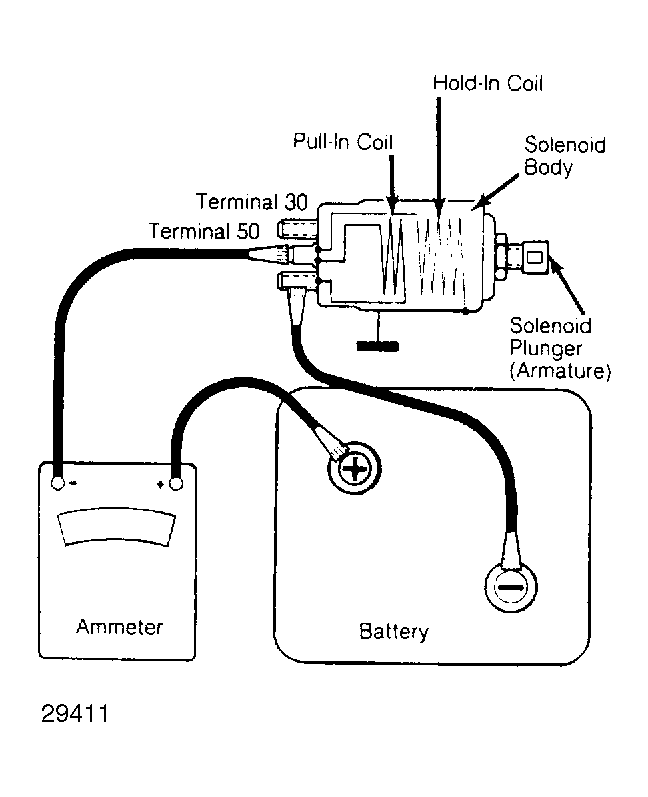

Fig 1: Typical Connections for Pull-In Test

G29411
