Removal & Installation
WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2004 BMW M3, 2004 BMW 330xi, 2004 BMW 330i, 2004 BMW 330Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
- Remove driver's seat. See 52 13 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/MANUAL)
- Remove footwell side trim panel on A-Pillar on left. 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY

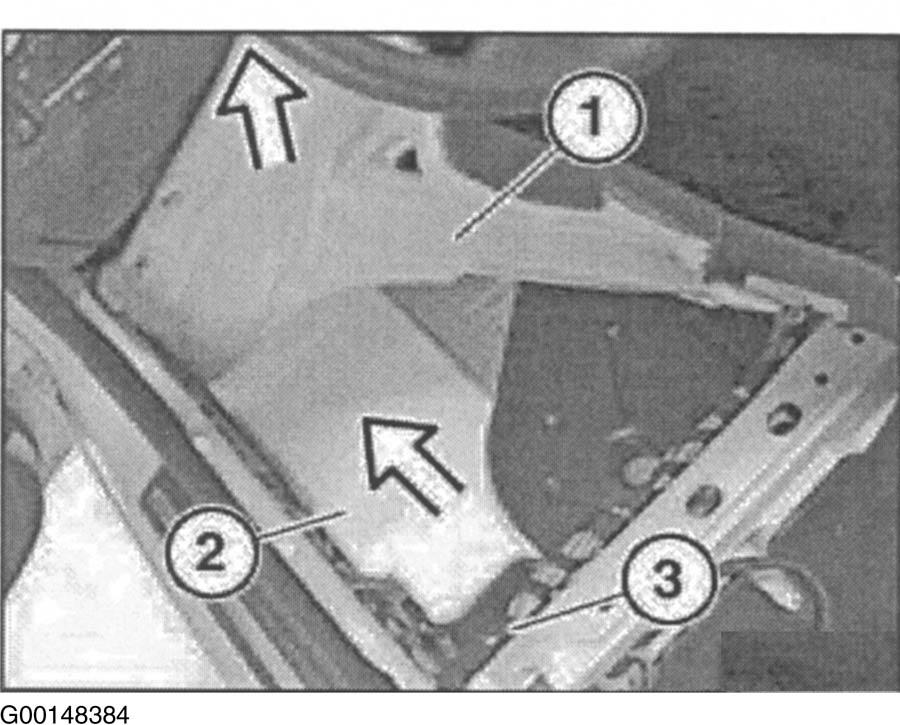

- Raise floor trim panel (1). Move insulating wedge (2) approximately 3-4 inches (8-10 cm) forward to gain access to rotation rate sensor (3). See Fig 1.

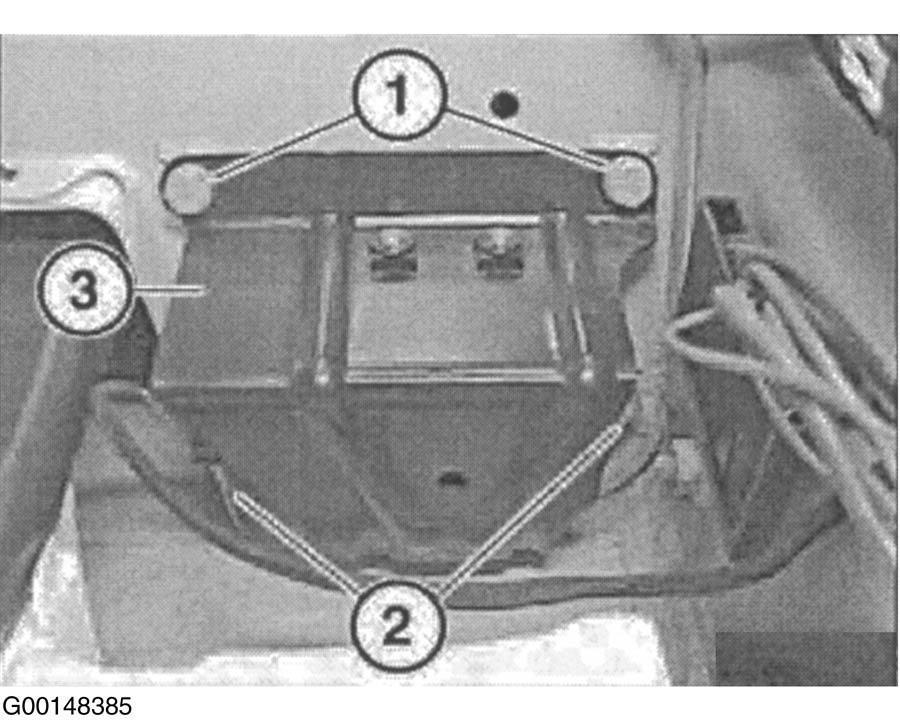

- Release screws (1), loosen screws (2). See Fig 2.

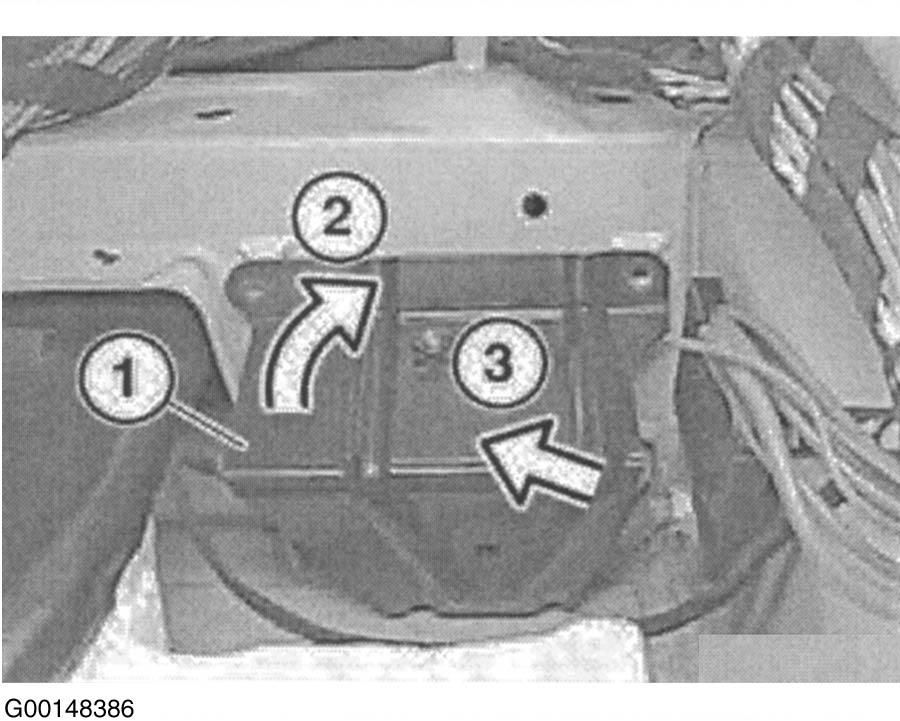

- Tilt rotation rate sensor (1) upwards in direction (2) and remove in direction (3). See Fig 3.

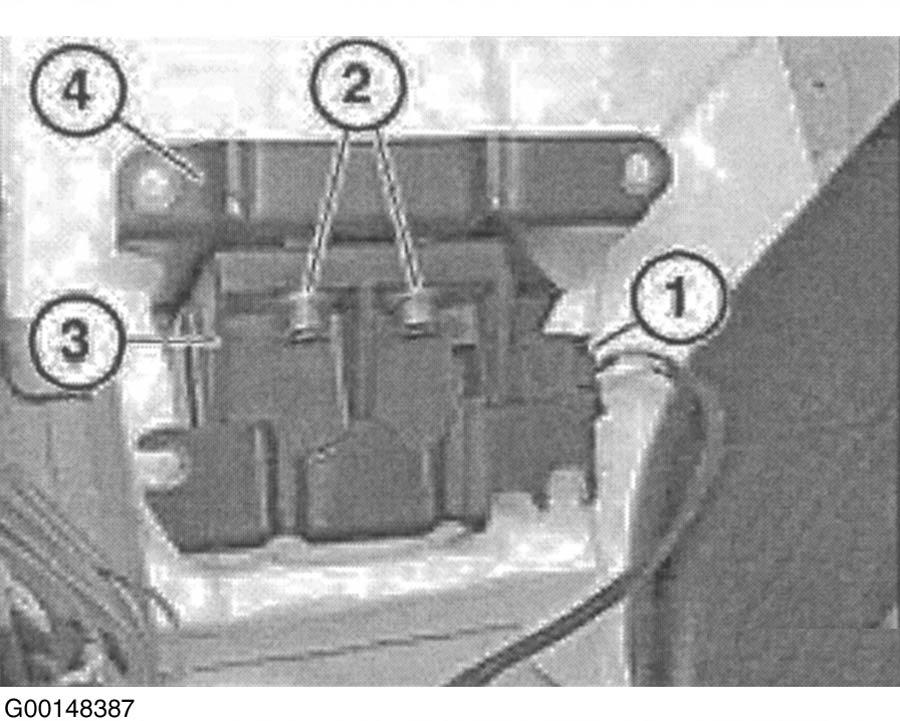

- Unfasten plug connection (1) and disconnect. Release screws (2) and remove rotation rate sensor (3) from bracket (4). See Fig 4.
- To install, reverse removal procedure. Tighten all screws to specification. See TORQUE SPECIFICATIONS .
CAUTION:
Rotation rate speed sensor is a vibration-sensitive component. Implement screw connection correctly, otherwise there may be malfunctions in the DSC.
