BMW Vacuum Diagrams

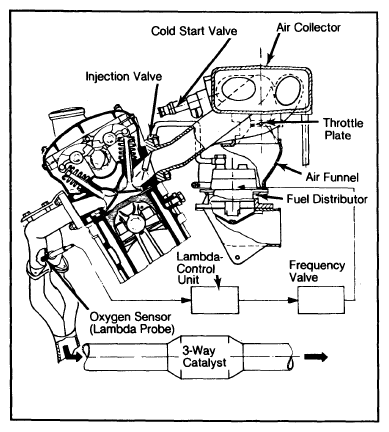

Fig 1: BMW 320i Exhaust Emission Control System Vacuum Diagram
G09315583Courtesy of BMW OF NORTH AMERICA, INC.
Fig 2: BMW 633CSi & 733i Exhaust Emission Control System Vacuum Diagram
G09315584Courtesy of BMW OF NORTH AMERICA, INC.

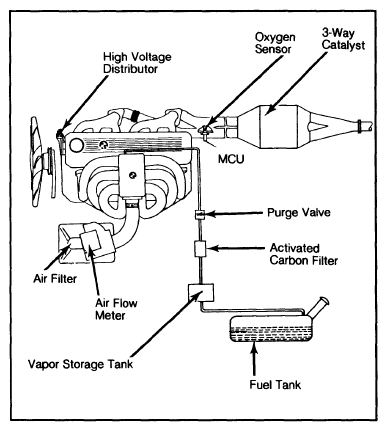

Fig 3: BMW 528e Exhaust Emission Control System Vacuum Diagram
G09315585Courtesy of BMW OF NORTH AMERICA, INC.
