Home >> BMW >> 1982 >> 633CSi Standard Trans >> Repair and Diagnosis >> Electrical >> Body Electrical >> Wiper/Washer System >> Removal & Installation >> Wiper Switch >> Installation

Wiper Switch: Installation

To install, reverse removal procedure.

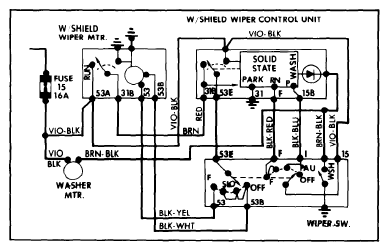

Fig 1: BMW 320i & 633CSi Wiring Diagram
G09330319Courtesy of BMW OF NORTH AMERICA, INC.

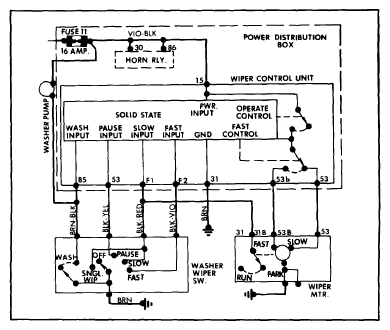

Fig 2: BMW 528e Wiring Diagram
G09330320Courtesy of BMW OF NORTH AMERICA, INC.

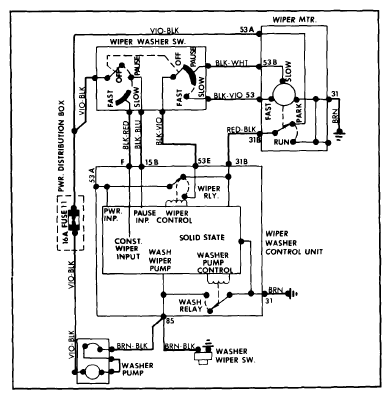

Fig 3: BMW 733i Wiring Diagram
G09330321Courtesy of BMW OF NORTH AMERICA, INC.
