Steering Gear

NOTE: BMW recommends replacing the entire unit if malfunctions occur in the steering gear.

Fig 1: Removing Steering Shaft Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Push up flange with steering column and detach.

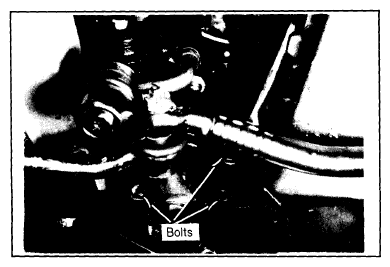

Fig 2: Steering Gear-To-Front Axle Removal

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bolts retaining steering gear to axle career.
